4 Installation

4.1 Fastening

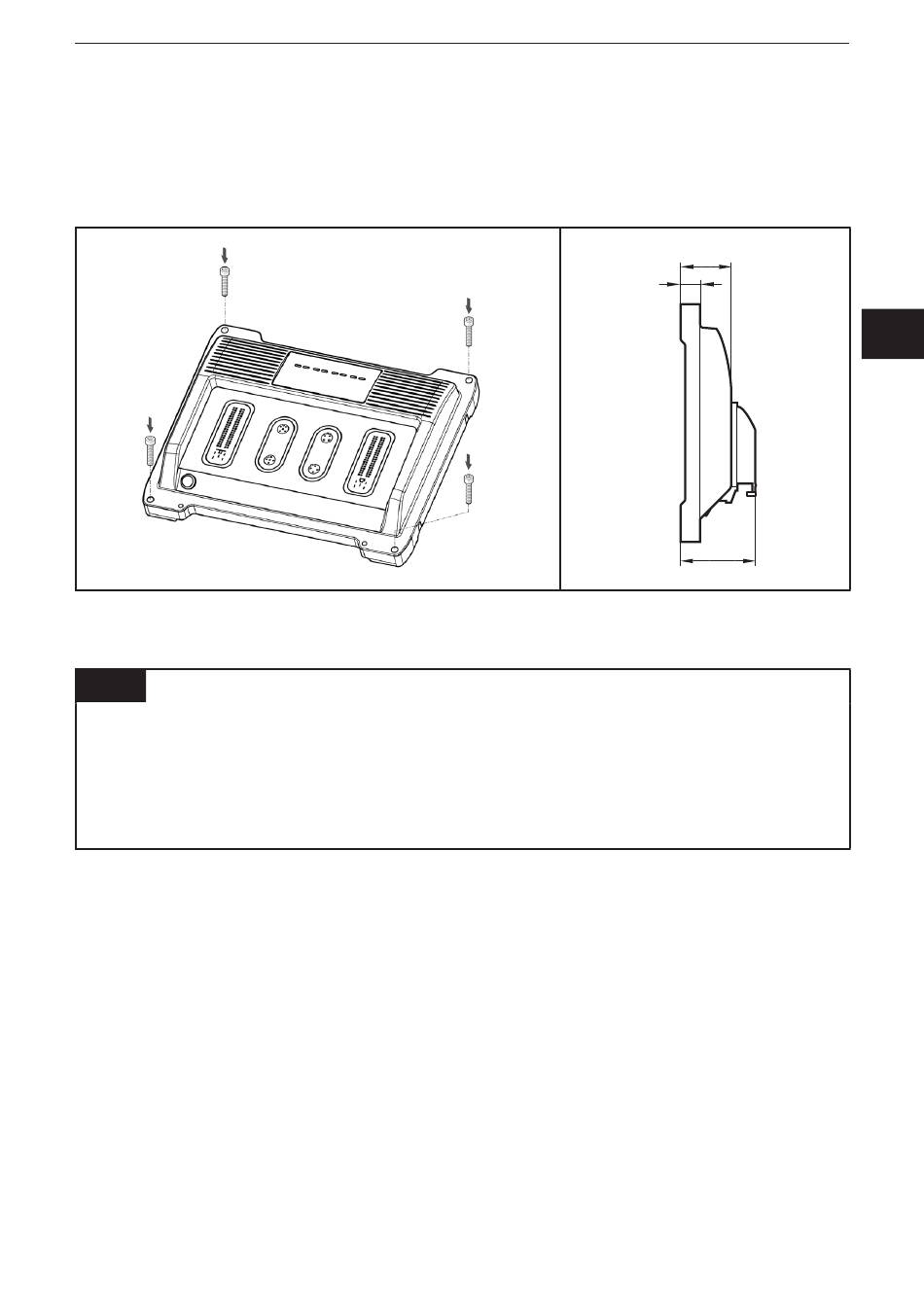

► Fix the controller to a flat surface using 4 galvanized M6 screws�
Tightening torque: 10
Installation
NOTE
To avoid contact corrosion between the mounting screws and the module
housing, do not use any stainless steel screws or nickel-plated screws�
In very corrosive environments such as extremely salty air, we recommend to use
screws with surface finishing on a zinc/nickel basis with thick-film passivation and
sealing� For normal corrosive requirements zinc-plated screws are sufficient�
P_MZ_e100_0093
Nm
±2
ecomatController CR720S/CR721S
47
18
68,4
Total height with the attached
LEDs
271 47
250 18
6,4 1 M12x1 2
