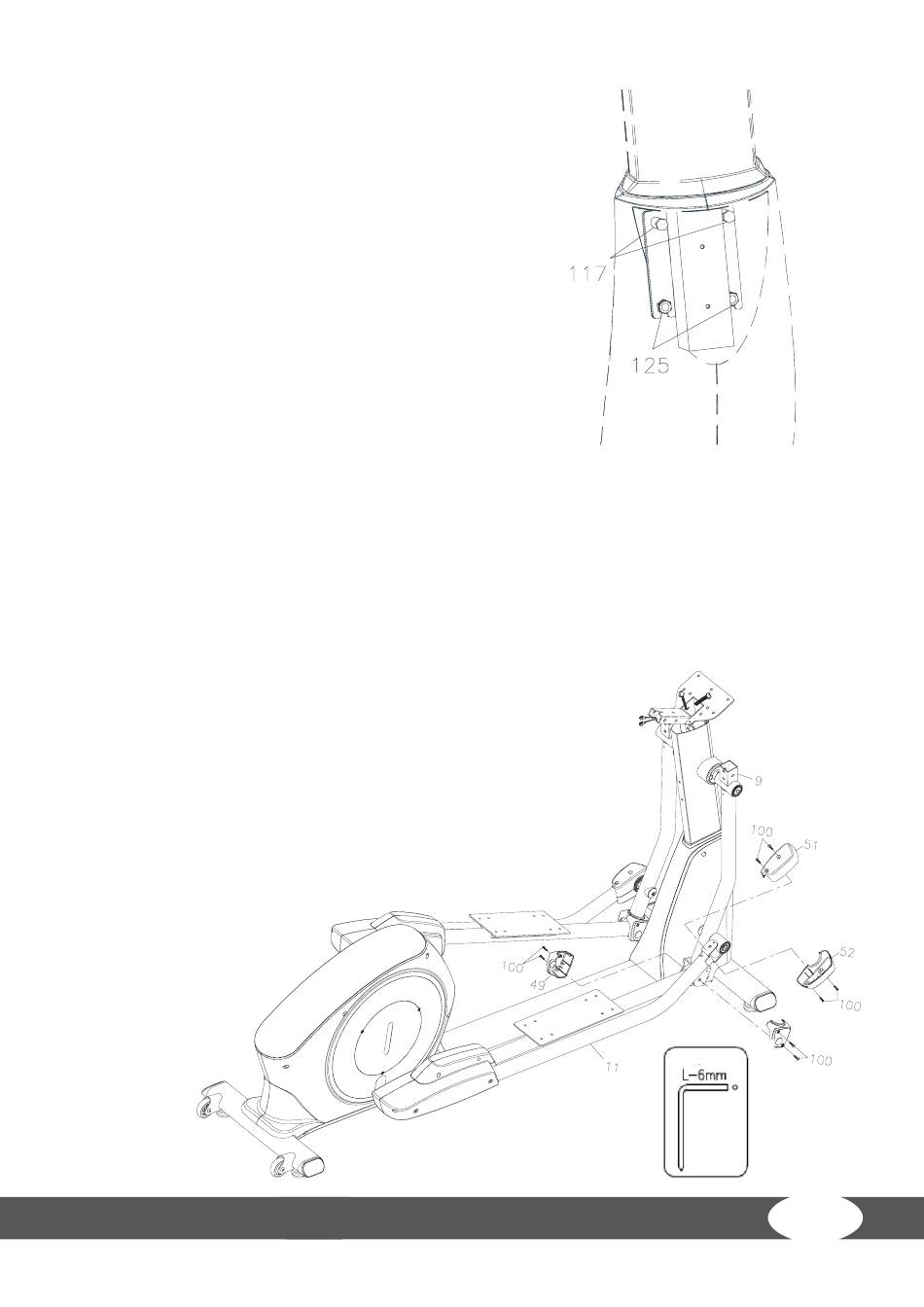

Step 5:
Assemble covers
a)
Now
tighten
(M10xp1.5x50mm)(117) and two nylon
nuts (M10xp1.5) (125) from step 1 (see
figure).
b) Mount the front cover (19) on the front
side of the frame (1) with two screws
(M5xp0.8x30mm)(101).
Step 6:
Assemble swivel arm covers
a) Mount the lower swivel arm cover (49+50) with four screws (M5xp0.8x15mm) (100).
b) Mount the upper swivel arm cover (51+52) with four
screws (M5xp0.8x15mm) (100).
c) Repeat the process for the left side.
Note: Tighten all screws before you continue with the
next step.
the
two
screws
17
