Step 4:

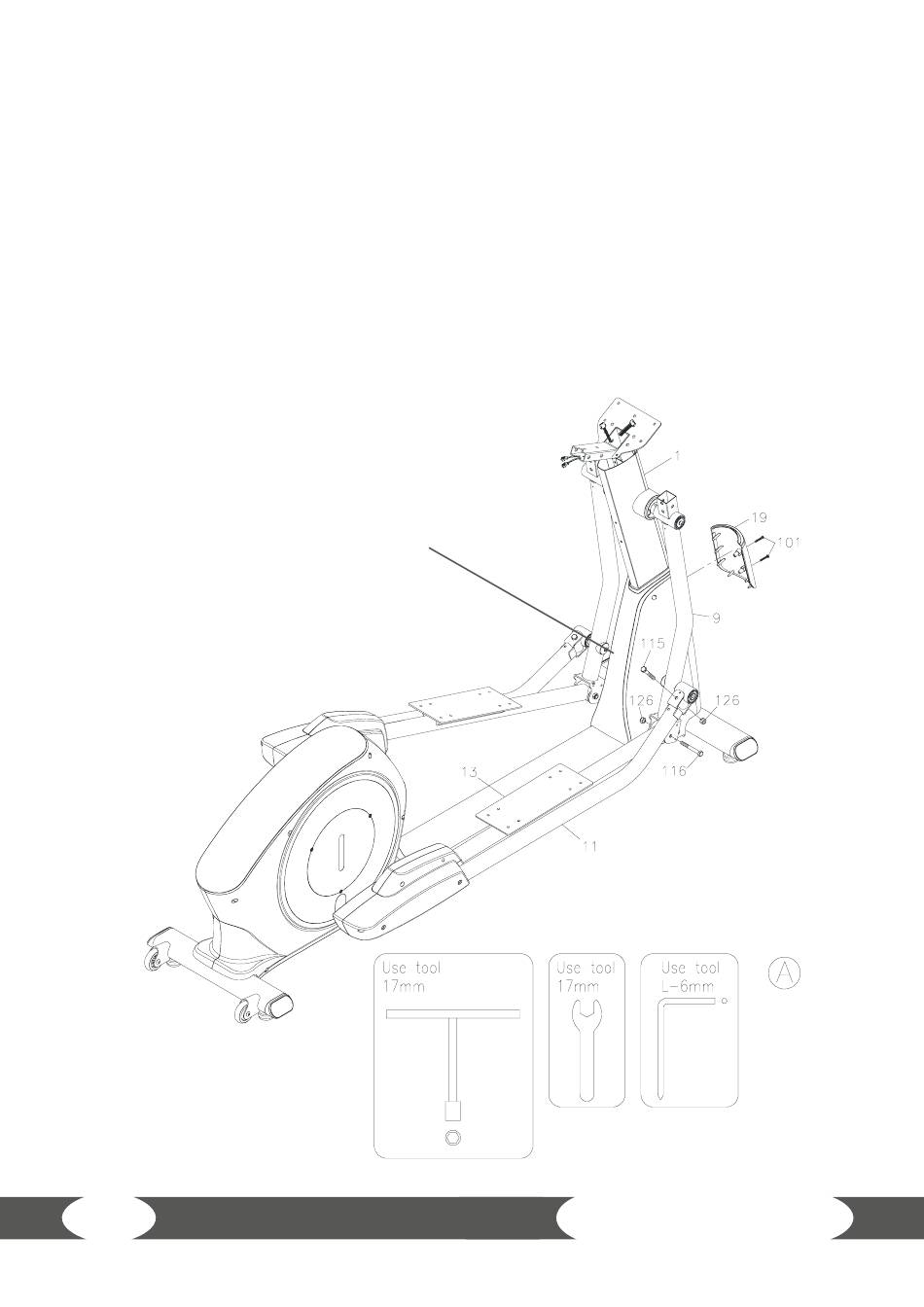

Assemble pedal arms
a) Mount the right pedal arm (13) on the right swivel arm (9) with a screw
(M10xp1.5x85mm) (116) and a nylon nut (M10xp1.5)(126)
b) Mount the right supporting arm (11) on the right swivel arm (9) with a screw
(M10xp1.5x70mm) (115) and a nylon nut (M10xp1.5)(126)
c) Repeat the process for the left side.
Note: Tighten the screws and nuts before you continue with the next step.
Note: The screw (115) must be
inserted from the inner side
of the swivel arm and the nut
(126) must be installed from
the outside.
