3.2
Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown
and assemble the equipment in the order indicated

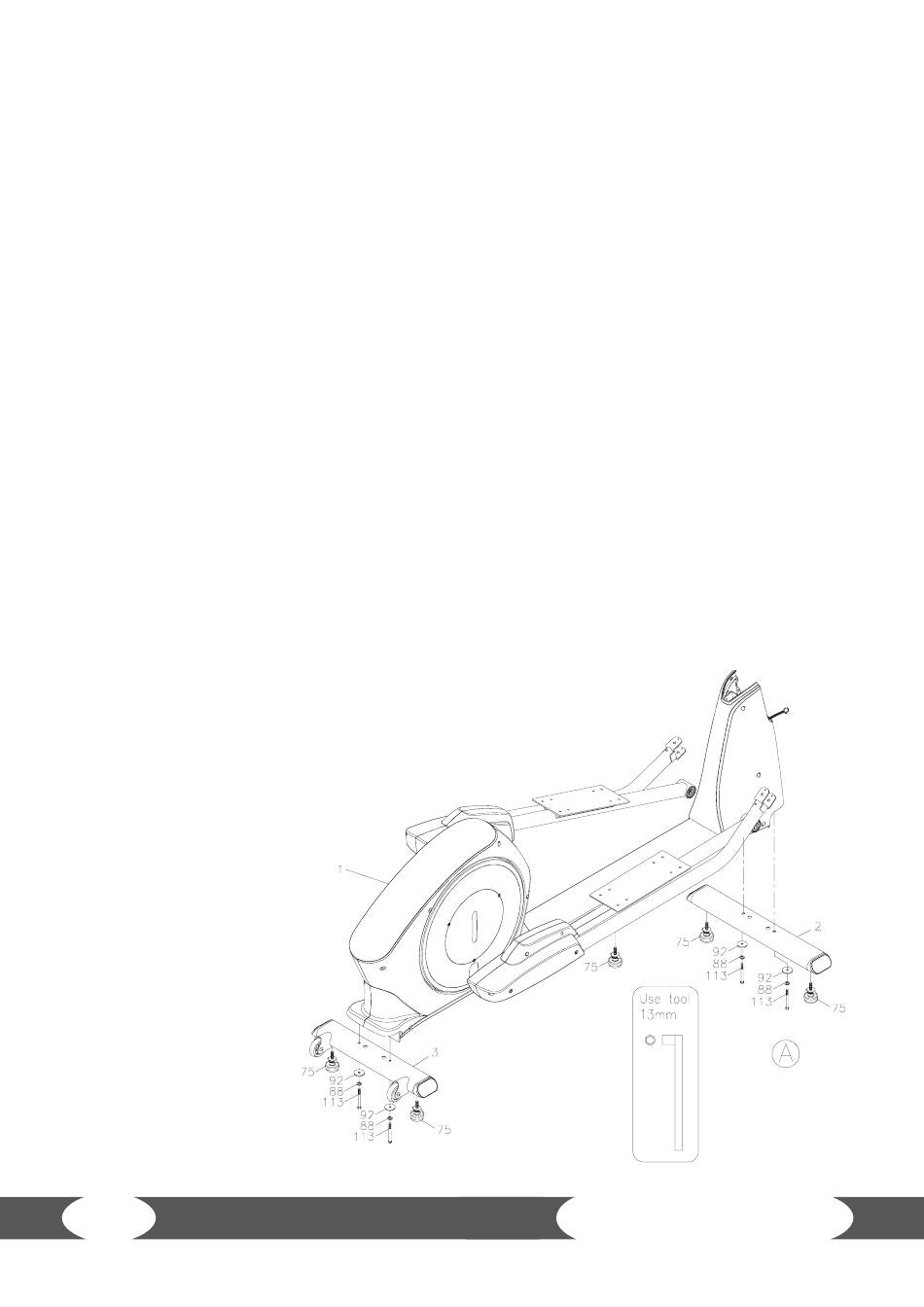

Step 1:
Assemble feet and adjusting screws
a) Mount an adjusting screw (75) under the middle of the frame (1).
Note: We recommend to place a piece of Styrofoam under the elliptical cross trainer in
order to make it easier to mount the adjusting screws and the base feet.
b) Mount two adjusting screws each on the front base foot (2) and rear base foot (3).
Make sure that the adjusting screws are tightly attached.
c) In order to be able to mount the base feet easier, we recommend placing one of the
pieces of Styrofoam under the frame (1).
d) Mount the front base foot (2) on the frame (1) with two washers (8x38x2.0t) (92), two
spring washers (M8)(88) and two screws (M8xp1.25x65mm)(113).
e) Mount the rear base foot (3) on the frame (1) with two
washers (8x38x2.0t) (92), two spring washers (M8)(88) and
two screws (M8xp1.25x65mm)(113).
Note: Rotate the adjusting screws further in or out in order
to level any unevenness.
X10.5 Pro SMART
14
