Step 2: Cable connections
a) Connect the middle connection cable (131) to the lower connection cable (132). Make
sure that the cables are not stuck.
Tighten these screws
(117) first in step 5.
Note: These nuts (125)
may not be removed
during assembly.

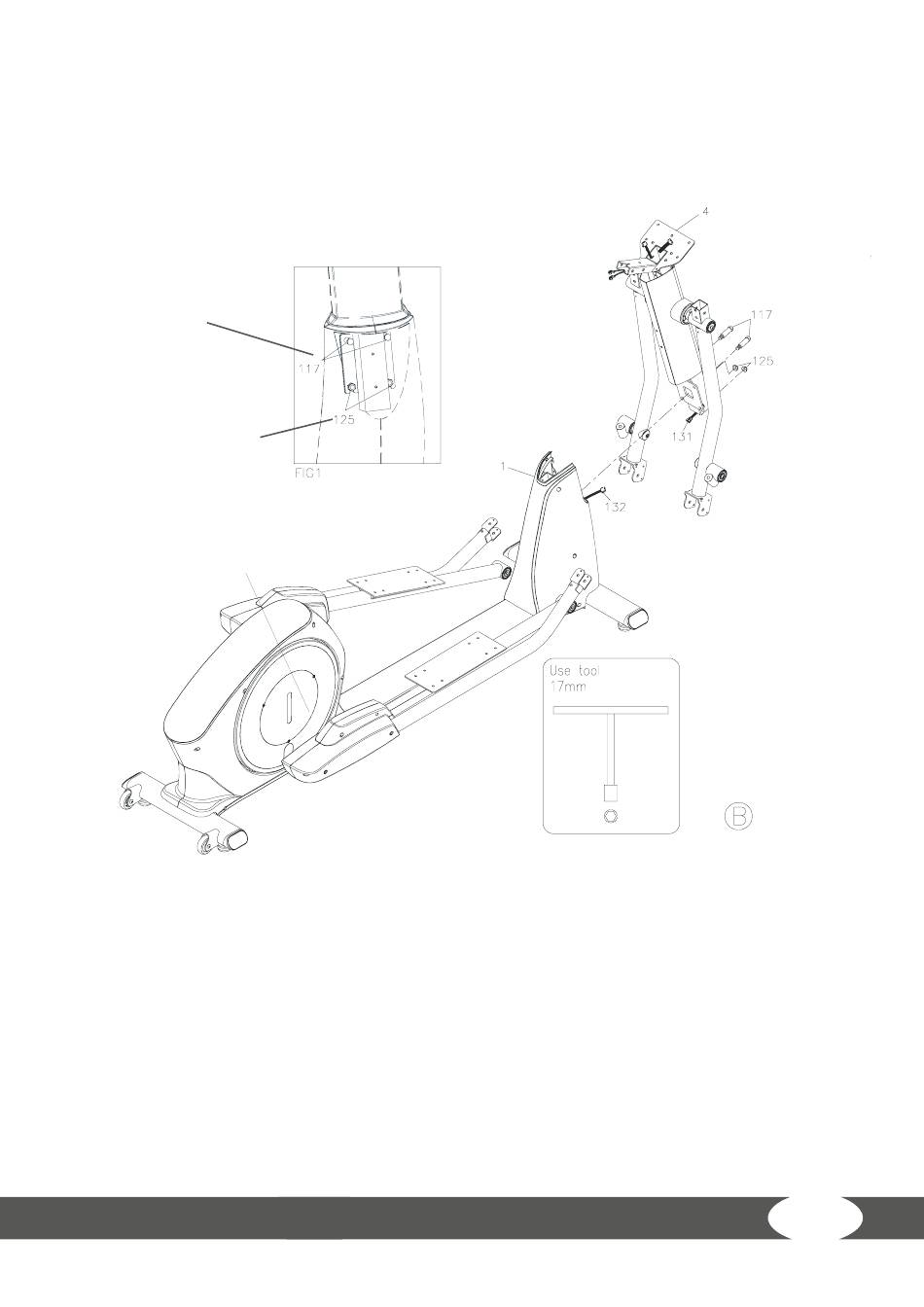

Step 3: Assemble console mast
a) Check if two nylon nuts (M10xp1.5)(125) were pre-mounted on the frame (1). See fig.
1.
b) Insert the console mast (4) in the frame (1) and mount it with two screws
(M10xp1.5x50mm) (117).
Note: First tighten the screws (117) and nuts (125) once you have executed step 5.
