VS-88UT Quick Start Guide
This guide helps you install and use your VS-88UT for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

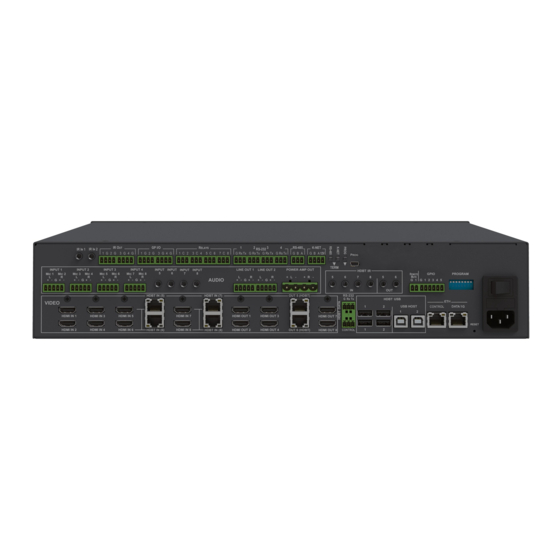

VS-88UT 8x8 HDMI/HDBT Matrix Switcher
1 Set of rack ears

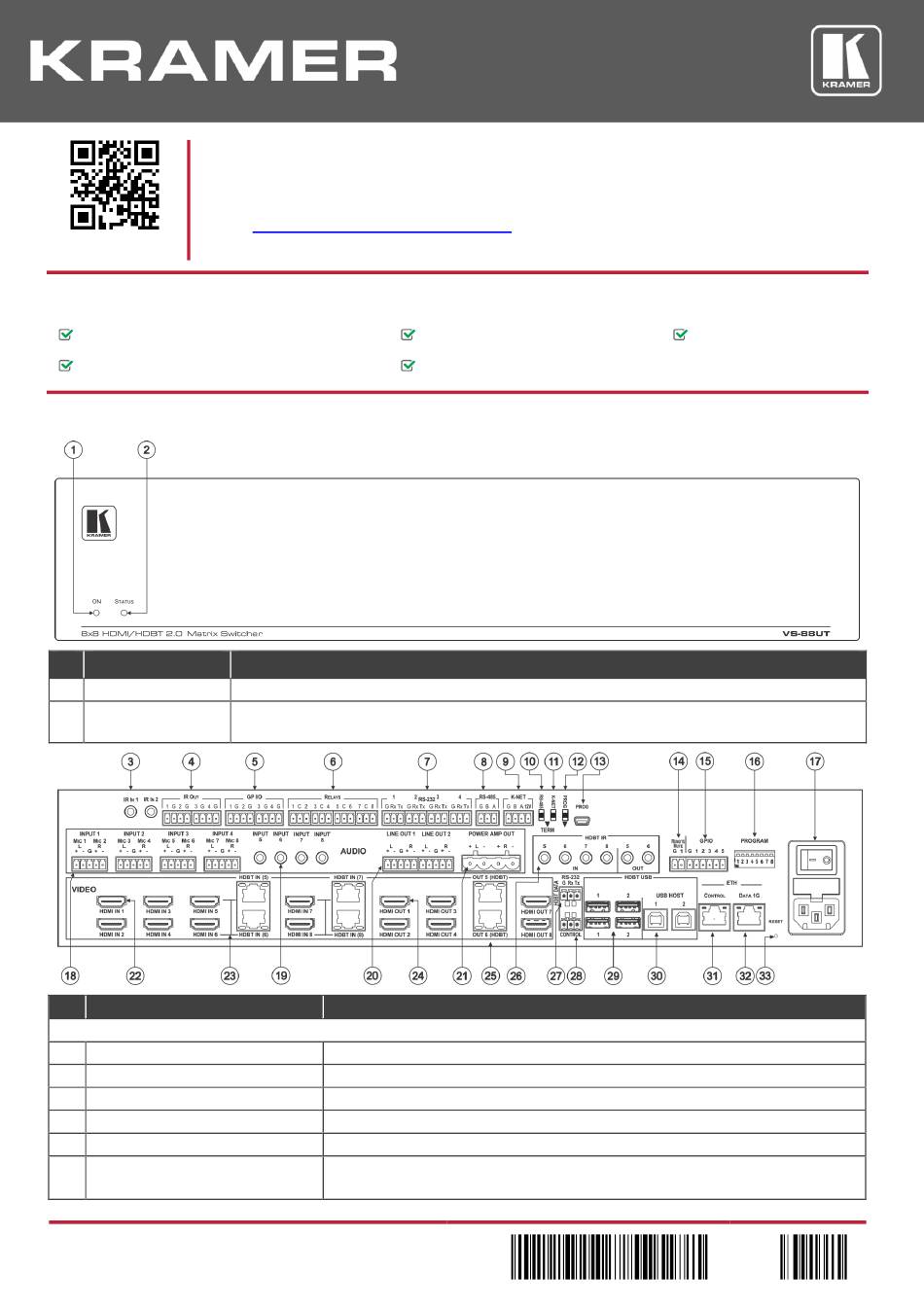

Step 2: Get to know your VS-88UT
# Feature
1 ON LED
2 STATUS LED
# Feature
Controller Functionality
3 IR IN 3.5mm Mini Jack
4 IR OUT Terminal Block Connectors
5 GPI/O Terminal Block Connectors
6 RELAYS Terminal Block Connectors
7 RS-232 Terminal Block Connectors
8 RS-485 Terminal Block Connector
VS-88UT Quick Start (P/N: 2900-300582QS REV 1)
www.kramerav.com/downloads/VS-88UT
Function
Lights when receiving power.
Multi-color LED lights upon startup, flashes green upon boot and lights green when ready to use. The
LED lights red to indicate internal errors.
Function
Connect to an external IR receiver (1 and 2).
Connect to IR emitter cables (from 1 to 4).
Connect to various analog and digital sensors (from 1 to 4).
Connect to low-voltage relay-driven devices (from 1 to 8).
Connect to RS-232 controlled devices (from 1 to 4).
Connect to the RS-485 detachable terminal block on a switcher or PC.
Pins B (-) and A (+) are for RS-485; Pin G may be connected to the shield (if required).
to download the latest user manual and check if firmware
1 Power cord
4 Rubber feet
P/N: 2 9 0 0 - 3 0 0 5 8 2 QS
1 Quick start guide
