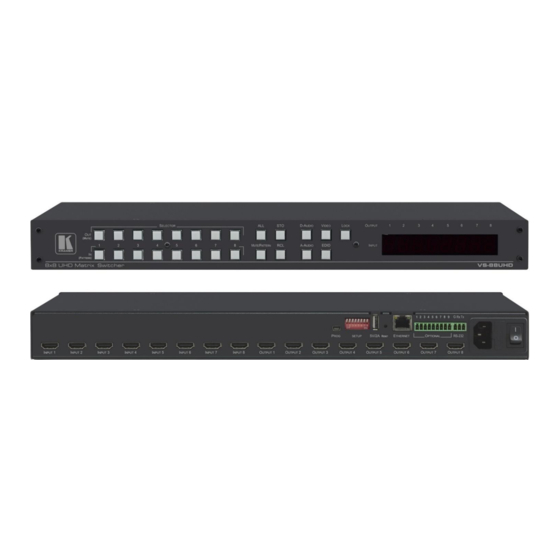

Kramer VS-88UHD User Manual

Uhd matrix switcher
Hide thumbs Also See for VS-88UHD:
Table of Contents

Advertisement

Quick Links

USER MANUAL
MODELS:
VS-88UHD, VS-66UHD, VS-84UHD,
VS-48UHD
UHD Matrix Switcher
P/N: 2900-300629 Rev 4
www.kramerAV.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-88UHD and is the answer not in the manual?

Questions and answers

Related Manuals for Kramer VS-88UHD

Summary of Contents for Kramer VS-88UHD

  • Page 1 USER MANUAL MODELS: VS-88UHD, VS-66UHD, VS-84UHD, VS-48UHD UHD Matrix Switcher P/N: 2900-300629 Rev 4 www.kramerAV.com...

  • Page 2: Table Of Contents

    Controlling your VS-88UHD Defining the UHD Matrix Switcher Mounting VS-88UHD Connecting the VS-88UHD Connecting to VS-88UHD via RS-232 Connecting VS-88UHD via the ETHERNET Port Operating VS-88UHD via Front Panel Buttons Routing the Signals Storing and Recalling a Setup Setting the Switching Mode...

  • Page 3: Introduction

    Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we...

  • Page 4: Overview

    European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.

  • Page 5: Typical Applications

    Selectable switching speed. • Lock button to prevent tampering. • Kramer protocol 3000 support. • Firmware upgrade via mini USB, Ethernet or the RS-232 port. • Control Options – RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN.

  • Page 6: Controlling Your Vs-88Uhd

    Kramer Electronics Ltd. Controlling your VS-88UHD Control your UHD Matrix Switcher directly via the front panel push buttons, or: • By RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller. • Via the Ethernet using built-in user-friendly web pages.

  • Page 7: Defining The Uhd Matrix Switcher

    This section defines the VS-88UHD, VS-66UHD, VS-84UHD and VS-48UHD. Figure 1: VS-88UHD 8x8 UHD Matrix Switcher Front Panel Figure 2: VS-66UHD 6x6 UHD Matrix Switcher Front Panel Figure 3: VS-84UHD 8x4 UHD Matrix Switcher Front Panel Figure 4: VS-48UHD 4x8 UHD Matrix Switcher Front Panel...
  • Page 8 Kramer Electronics Ltd. Feature Function The behavior of the front panel buttons and the 7-segment display changes along with the operation modes. For further details see Operating VS-88UHD via Front Panel Buttons page Error! Unknown switch argument.. IN (PATTERN) SELECTOR...
  • Page 9 Kramer Electronics Ltd. Figure 5: VS-88UHD 8x8 UHD Matrix Switcher Rear Panel Figure 6: VS-66UHD 6x6 UHD Matrix Switcher Rear Panel Figure 7: VS-84UHD 8x4 UHD Matrix Switcher Rear Panel Figure 8: VS-48UHD 4x8 UHD Matrix Switcher Rear Panel Feature Function INPUT HDMI™...

  • Page 10: Mounting Vs-88Uhd

    Kramer Electronics Ltd. Mounting VS-88UHD This section provides instructions for mounting VS-88UHD. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F).

  • Page 11: Connecting The Vs-88Uhd

    VS-48UHD except for the number of inputs and outputs per device. Always switch off the power to each device before connecting it to your VS-88UHD. After connecting your VS-88UHD, connect its power and then switch on the power to each device.

  • Page 12: Connecting To Vs-88Uhd Via Rs-232

    3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection. The Local Area Connection Properties window for the selected network adapter appears as shown in Figure UHD Matrix Switcher – Connecting the VS-88UHD...
  • Page 13 (TCP/IPv4) depending on the requirements of your IT system. 5. Click Properties. The Internet Protocol Properties window relevant to your IT system appears as shown in Figure 11 Figure Figure 11: Internet Protocol Version 4 Properties Window UHD Matrix Switcher – Connecting the VS-88UHD...

  • Page 14: Connecting The Ethernet Port Via A Network Hub Or Switch

    To control several units via Ethernet, connect the Master unit (Device 1) via the Ethernet port to the Ethernet port of your PC. Use your PC provide initial configuration of the settings (see Connecting VS-88UHD via the ETHERNET Port on page Error! Unknown switch argument.). UHD Matrix Switcher – Connecting the VS-88UHD...

  • Page 15: Operating Vs-88Uhd Via Front Panel Buttons

    Routing an Audio Input to the HDMI Output on page 15. • Operating in ARC Mode on page 16. • Muting/Unmuting an Output on page 20. • Routing a Pattern to the Output on page 20. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 16 3. Press an IN (PATTERN) button (1 to 8). The selected input is switched to the selected output (or to all the outputs if ALL was pressed instead) and the 7-segment display shows the current status. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 17 (instead of an output button) and then an input button to route the selected input to all the outputs. All the 7-segment display LEDs flash and then display the selected input. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 18 3. Check the ARC check boxes (under the Audio Outputs column) to enable the device to accept audio signals from the selected outputs. When in the ARC mode, the output buttons of the selected outputs illuminate. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 19 Input button 1, 3, 5 and/or 7. input settings window appears: Figure 15: Switching Page – Input 3 Settings Window 3. Click ARC to set the input to ARC mode. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 20 You can select 1, 3, 5 and/or 7. 3. In ARC mode click (the settings button). The input ARC Settings window appears (by-default the output source is set to output 1): Figure 17: Input 3 ARC Settings UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 21 Note that output 6 also needs to be checked in the Audio break away window for it to pass through to input 3 in this example. HDMI OUT 8 ARC audio signal is routed to ARC input 3. 4. Exit ARC mode by pressing D-AUDIO or VIDEO buttons. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 22 6 (Solid Green) 7 (Solid Blue) 8 (Checkboard) Figure 19: VS-88UHD and VS-84UHD Embedded Patterns Once a pattern is selected, that same pattern is routed to all the selected outputs. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 23 Twice: button flashes, press IN 1 to IN 4 to select patterns 5 to 8. On the front panel buttons: • An illuminated output button means that a display is connected on that output. • An illuminated input button indicates the current pattern selected. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...
  • Page 24 7-segment display LEDs flash. 3. Press an input button to select a pattern (see Figure 19). The 7-segment display shows the new pattern status. Press VIDEO or D-AUDIO to exit pattern mode. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...

  • Page 25: Storing And Recalling A Setup

    LED flashes. If nothing is stored the 7-segment LED is on. 3. Press RCL. The recalled setup is applied and the RCL button no longer illuminates. Press RCL within 15 seconds to apply settings. Otherwise, action times out. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...

  • Page 26: Setting The Switching Mode

    1. Press and hold EDID and RCL until both buttons illuminate. The IN buttons indicate the HDCP status: ▪ HDCP enabled (on): IN button is illuminated. ▪ HDCP disabled (off): IN button is off. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...

  • Page 27: Copying The Edid

    The 7-segment display LEDs of the selected inputs flash. 3. Press a disconnected output button. 4. Press EDID. Wait for about 5 seconds for the device to copy the default EDID to the selected inputs. UHD Matrix Switcher – Operating VS-88UHD via Front Panel Buttons...

  • Page 28: Firmware Upgrade

    The Ethernet, using embedded Web pages. • By USB or RS-232 using Kramer K-UPLOAD tool. The latest firmware version and the latest version of K-UPLOAD and installation instructions can be downloaded from the Kramer Web site at www.kramerav.com/downloads/VS-88UHD. UHD Matrix Switcher – Firmware Upgrade...

  • Page 29: Using The Embedded Web Pages

    OSD items and more and are accessed using a Web browser and an Ethernet connection. Before attempting to connect: • Perform the procedures described in Connecting VS-88UHD via the ETHERNET Port on page Error! Unknown switch argument.. • Ensure that your browser is supported.
  • Page 30 Kramer Electronics Ltd. To browse the VS-88UHD Web pages: 1. Open your Internet browser. 2. Type the IP address of the device in the address bar of your browser. For example, the default IP address: The Authentication window appears (if set, security is enabled): Figure 21: Using the Embedded Web Pages –...

  • Page 31: Switching And Setting The Ports

    Kramer Electronics Ltd. Switching and Setting the Ports The Switching Web page enables performing the following functions: • Viewing and Adjusting the Output Settings on page Error! Unknown switch argument.. • Viewing and Adjusting the Input Settings on page Error! Unknown switch argument..
  • Page 32 Kramer Electronics Ltd. 3. Click . The output settings window appears: Figure 24: Switching Page – Editing the Output Button Settings 4. If required, type the label name in the Label text box and click Figure 25: Switching Page – Changing the Output Label 5.
  • Page 33 Kramer Electronics Ltd. Viewing and Adjusting the Input Settings Use the VS-88UHD input buttons to view and adjust the status of that input/output. Figure 26: Switching Page – Input Button Not Selected and Selected Each input button displays the: •...
  • Page 34 Kramer Electronics Ltd. Setting Inputs 1, 3, 5 and 7 Device Name Relevant Inputs VS-88UHD 1, 3, 5 and 7 VS-66UHD 1, 3, and 5 VS-84UHD 1, 3, 5 and 7 VS-48UHD 1 and 3 To adjust input 1, 3, 5 and 7 settings: 1.

  • Page 35: Switching An Input To An Output

    Kramer Electronics Ltd. Switching an input to an output To move the image: 1. In the Navigation pane, click Switching. The Switching page appears. 2. Select the AFV tab. Figure 30: Switching Page – AFV Tab 3. Click an output button/s or check the Outputs box. The button turns purple.
  • Page 36 Kramer Electronics Ltd. Switching a Pattern to an Output To switch a pattern to an output: 1. In the Navigation pane, click Switching. The Switching page appears. 2. Select the AFV tab. Verify that Patterns (and not Inputs) is selected.
  • Page 37 Kramer Electronics Ltd. Switching Audio in Breakaway Mode In Breakaway mode, the HDMI embedded audio is switched separately from the video signal. The audio breakaway mode is enabled only when Auto Switch Setting is set to Manual mode. You can switch a digital audio input to a digital audio output independently. If HDMI input port and HDMI output port ARC mode are enabled, you can switch a selected HDMI output port ARC to any HDMI input port ARC.
  • Page 38 Kramer Electronics Ltd. To switch ARC to an input: 1. In the Navigation pane, click Switching. The Switching page appears. 2. Select Audio break away tab. 3. Check the ARC check boxes to ARC-enable selected outputs (under the Audio Outputs column).
  • Page 39 Kramer Electronics Ltd. 7. Click and set either Output 2 or Output 4 to set them as an ARC to Input 1. Figure 36: Switching Page – Routing Output 2 ARC to Input 1 Output 2 ARC is routed to Input 1.

  • Page 40: Changing Device Settings And Upgrading The Firmware

    Kramer Electronics Ltd. Changing Device Settings and Upgrading the Firmware The Device Settings Web page shows the device details, such as name, MAC address and firmware version and also enables performing the following functions: • Changing the Ethernet Settings on page Error! Unknown switch argument..
  • Page 41 Kramer Electronics Ltd. Performing a Factory Reset To reset the device to its factory default values: 1. In the Navigation pane, click Device Settings. The Device Settings page appears (Figure 37). 2. Click Reset. The following window appears: Figure 38: Device Settings Page – Factory Reset 3.

  • Page 42: Managing Web Page Security

    Kramer Electronics Ltd. Managing Web Page Security Use the Security page to set Web access permission: Setting Web Page Access Permission To define access to the Web pages, in the Navigation pane, click Authentication. The Password Settings page appears displaying the current status (password protected or free access).
  • Page 43 Kramer Electronics Ltd. • Type the User Name (Admin, by default) and Password (left empty by default). Figure 43: Password Settings Page – Password Protection 6. Click Sign In. 7. Select Password Settings from the Navigation panel. Figure 44: Password Settings Page – Setting the Admin Password 8.
  • Page 44 Kramer Electronics Ltd. To access Web pages without using the password: 1. Check the current security settings. Figure 47: Password Settings Page – Password Protected The Security icon (on the top right-side of the page) is unlocked: Figure 48: Password Settings Page – Security is Off 2.

  • Page 45: Setting The Timeout

    Kramer Electronics Ltd. Setting the Timeout Use the Timeout Settings Web page to set the time delay to shut down if no input signal is detected for each output and also to set the auto switching time. Always set the 5V cut-off (Disable 5V) time delay to be longer than the video signal loss timer delay.

  • Page 46: Setting Switching Modes

    Kramer Electronics Ltd. To set the video lost timer (when in auto-switching mode): 1. In the Navigation pane, click Timeout Settings. The Timeout Settings page appears. 2. Set the video lost timer. The adjustment sequence presented here is only an example. You can adjust the output settings in any other order.
  • Page 47 Kramer Electronics Ltd. ▪ In the Priority mode, drag and drop the inputs from the highest to the lowest priority. The inputs are then switched according to the set priority to the selected output: Figure 52: Auto Switch Settings Page – Setting the switching Priority ▪...

  • Page 48: Setting Step-In Devices

    Setting Step-in Devices Use the Step-In Settings page to manage Step-in devices (for example Kramer DIP-30). If a step-in device is not connected to VS-88UHD, the following page appears: Figure 54: Step-In Settings Page (Step-in Device is not Connected) To manage a step-in device: 1.
  • Page 49 Kramer Electronics Ltd. 3. Click an active step-in input (button 2 in this example). The selected input button turns purple, the DIP-30 Inputs list and the VS-88UHD outputs to which the DIP-30 input is routed are displayed. Figure 56: Step-In Settings Page – Step In Selected 4.

  • Page 50: Managing The Edid

    Kramer Electronics Ltd. Managing the EDID The EDID Management page lets you read the EDID from: • Any of the outputs, • The default EDID • Any of the inputs, • A file in your PC (Browse). The selected EDID can be copied to the selected input/s.
  • Page 51 Kramer Electronics Ltd. Figure 58: EDID Management Page – Select an EDID output 3. Select an input (or all the inputs) to which the EDID is copied. Figure 59: EDID Management Page – Select an Input 4. Click COPY. The EDID message appears.
  • Page 52 Kramer Electronics Ltd. Figure 60: EDID Page –EDID Copy Message 5. Click OK. The following message appears: Figure 61: EDID Management Page – Loading the EDID from Output to Input 6. Click OK. To read the EDID from the default EDID: 1.
  • Page 53 Kramer Electronics Ltd. 3. If required, check the options under Inputs Capabilities. Figure 62: EDID Management Page – Loading the EDID from input to Input 4. Click COPY and follow the instructions on-screen. The EDID is loaded to the selected inputs.
  • Page 54 Kramer Electronics Ltd. To read the EDID from a file: 1. In the Navigation pane, click EDID Management. The EDID Management page appears. 2. Click File BROWSE and open the EDID file. Figure 63: EDID Management Page – EDID Selected from a File 3.

  • Page 55: Viewing The About Page

    When viewing the 7-segment display in the EDID mode, the input with EDID read from a file will display “L” Viewing the About Page VS-88UHD About page lets you view the Web page version and Kramer Electronics Ltd details. Figure 66: About Page UHD Matrix Switcher – Using the Embedded Web Pages...

  • Page 56: Technical Specifications

    Front panel buttons 7-segment display Power Consumption VS-66UHD, VS-84UHD, VS-48UHD: 42VA VS-88UHD: 50VA Source 100-240V AC, 50/60Hz Regulatory Safety VS-88UHD, VS-84UHD, VS-48UHD: CE, FCC Compliance VS-66UHD: CE Environmental RoHs, WEEE Environmental Operating Temperature 0° to +40°C (32° to 104°F) Conditions Storage Temperature -40°...

  • Page 57: Default Communication Parameters

    Kramer Electronics Ltd. Default Communication Parameters RS-232/Ethernet Baud Rate: 115,200 Parity: None Data Bits: Command Format: ASCII Protocol 3000 Stop Bits: Example (Route input 1 to output 1): #VID1> 1<cr> Ethernet Parameters IP Address: 192.168.1.39 Default TCP Port #: 5000 Subnet Mask: 255.255.0.0...

  • Page 58: Default Parameters

    All video inputs are routed to each of the video outputs Default switching mode - Manual, IN1 to OUT1, etc. for 2,3,4 manual/auto Default EDID Kramer default EDID with "monitor name"= "VS-88UHD" HDCP mode ENABLED Video Signal loss timeout (no 5V) Video Signal loss timeout (5V is on)

  • Page 59: Input Or Output Resolutions

    Kramer Electronics Ltd. Input or Output Resolutions VS-88UHD, VS-66UHD, VS-84UHD, VS-48UHD support the following resolutions: 4096*2160P30 1080i60 1440*900P60rb 800*600P60 4096*2160P29 1080i59 1400*1050P75 800*600P56 4096*2160P25 1080i50 1400*1050P60 720*400P70 4096*2160P24 720P60 1400*1050P60rb 640*480P75 4096*2160P23 720P59 1366*768P60 640*480P72 3840*2160P30 720P50 1366*768P60rb 640*480P59 3840*2160P29...

  • Page 60: Protocol 3000

    You can enter commands directly using terminal communication software (e.g., Hercules) by connecting a PC to the serial or Ethernet port on the VS-88UHD. To enter CR press the Enter key (LF is also sent but is ignored by the command parser).

  • Page 61: Understanding Protocol 3000

    Kramer Electronics Ltd. For more information about Protocol 3000 commands, see: • Understanding Protocol 3000 on page Error! Unknown switch argument.. • Kramer Protocol 3000 Syntax on page Error! Unknown switch argument.. • Protocol 3000 Commands on page Error! Unknown switch argument..

  • Page 62: Kramer Protocol 3000 Syntax

    Kramer Electronics Ltd. Kramer Protocol 3000 Syntax The Kramer Protocol 3000 syntax uses the following delimiters: • CR = Carriage return (ASCII 13 = 0x0D) • LF = Line feed (ASCII 10 = 0x0A) • SP = Space (ASCII 32 = 0x20) Some commands have short name syntax in addition to long name syntax to enable faster typing.

  • Page 63: Protocol 3000 Commands

    Kramer Electronics Ltd. Protocol 3000 Commands This section includes the following commands: • Common Commands on page Error! Unknown switch argument.. • System Commands on page Error! Unknown switch argument.. • Authentication Commands on page Error! Unknown switch argument.. •...
  • Page 64 Kramer Electronics Ltd. BUILD-DATE Functions Permission Transparency Set: BUILD-DATE? Get: End User Public Description Syntax Set: #BUILD-DATE?CR Get: Get device build date Response ~nn@BUILD-DATESPdateSPtimeCR LF Parameters date – Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time –...
  • Page 65 Kramer Electronics Ltd. MODEL Functions Permission Transparency Set: MODEL? Get: End User Public Description Syntax Set: #MODEL?CR Get: Get device model Response ~nn@MODELSPmodel_nameCR LF Parameters model_name – String of up to 19 printable ASCII chars Notes This command identifies equipment connected to Step-in master products and notifies of identity changes to the connected equipment.
  • Page 66 Kramer Electronics Ltd. Functions Permission Transparency Set: Get: End User Public Description Syntax Set: #SN?CR Get: Get device serial number Response ~nn@SNSPserial_numberCR LF Parameters serial_number – 11 decimal digits, factory assigned Notes This device has a 14-digit serial number, only the last 11 digits are displayed.
  • Page 67 Kramer Electronics Ltd. LOCK-FP Functions Permission Transparency LOCK-FP Set: End User Public LOCK-FP? End User Public Description Syntax #LOCK-FPSPlock_modeCR Set: Lock front panel #LOCK-FP? Get: Get front panel lock state Response ~nn@LOCK-FPSPlock_modeSPOKCR LF Parameters lock_mode – 0 (Off, unlock the front panel buttons), 1 (On, lock the front panel buttons)

  • Page 68: System Commands

    Kramer Electronics Ltd. System Commands Command Description SIGNAL Get input signal lock status PRST-VID? Get video connections from saved preset PRST-STO Store current connections to preset PRST-RCL Recall saved preset list PRST-LST Get saved preset list BAUD Set/get protocol serial port baud rate...
  • Page 69 Kramer Electronics Ltd. PRST-VID? Functions Permission Transparency Set: PRST-VID? Get: End User Public Description Syntax Set: #PRST-VID?SPpreset,outCR Get: Get video connections from saved preset #PRST-VID?SPpreset,*CR Response ~nn@PRST-VIDSPpreset,in>outCR LF ~nn@PRST-VIDSPpreset,in>1,in>2,in>3,…CR LF Parameters preset – preset number in – input number or '0' if output disconnected >...
  • Page 70 Kramer Electronics Ltd. PRST-RCL Functions Permission Transparency PRST-RCL Set: End User Public Description Syntax #PRST-RCLSPpresetCR Set: Recall saved preset list Get: Response ~nn@PRST-RCLSPpresetCR LF Parameters preset – Preset number: 1 (OUT 1)… n (OUT n); n+1 (IN 1)…n+m (IN m); for VS-66UHD,...
  • Page 71 Kramer Electronics Ltd. BAUD Functions Permission Transparency BAUD Set: Administrator Public BAUD? Get: Administrator Public Description Syntax #BAUDSPbaud_rateCR Set: Set protocol serial port baud rate Get protocol serial port baud rate #BAUD?CR Get: (for current baud rate) Response ~nn@BAUDSPbaud_rateCR LF...
  • Page 72 Kramer Electronics Ltd. HDCP-MOD Functions Permission Transparency HDCP-MOD Set: Administrator Public HDCP-MOD? End User Public Description Syntax #HDCP-MODSPinp_id,modeCR Set: Set HDCP mode #HDCP-MOD?SPinp_idCR Get: Get HDCP mode Response Set/get: ~nn@HDCP-MODSPinp_id,modeCR LF Parameters inp_id – Input number: 1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (IN 5), 6 (IN 6), 7 (IN 7), 8 (IN 8) mode –...
  • Page 73 Kramer Electronics Ltd. Authentication Commands Command Description LOGIN Set/get protocol permission LOGOUT Cancel current permission level PASS Set/get password for login level SECUR Set/get current security state LOGIN Functions Permission Transparency LOGIN Set: Not Secure Public LOGIN? Get: Not Secure...
  • Page 74 Enable the permission system: “#SECUR 0”,0x0D EDID Handling Commands Additional EDID data functions can be performed via a compatible EDID management application, such as Kramer EDID Designer (see www.kramerav.com/product/VS-88UHD). Command Description CPEDID Copy EDID data from the output to the input EEPROM...
  • Page 75 Kramer Electronics Ltd. Get: Response ~nn@CPEDIDSPsrc_type,src_id,dst_type,dest_bitmapCR LF Parameters src_type – EDID source type (usually output): 0 (Input), 1 (Output), 2 (Default EDID) src_id – For input source: 1 (Input), for output source: 0 (Default EDID source), 1 (Output 1), 2 (Output 2) dst_type –...
  • Page 76 Kramer Electronics Ltd. Parameters in – Input number:1 (IN 1), 2 (IN 2), 3 (IN 3), 4 (IN 4), 5 (IN 5), 6 (IN 6), 7 (IN 7), 8 (IN 8), 0 (Output disconnected) > – Connection character between in and out parameters out –...
  • Page 77 Kramer Electronics Ltd. K-Config Examples Switch embedded audio HDMI IN 1 to HDMI OUT 3: “#AUD 1>3”,0x0D DISPLAY Functions Permission Transparency Set: DISPLAY? Public End User Description Syntax Set: #DISPLAY?SPout_idCR Get: Get output HPD status Response ~nn@DISPLAYSPout_id,statusCR LF Parameters out_id – 1 (Output 1), 2 (Output 2) status –...

  • Page 78: Switching Commands

    Kramer Electronics Ltd. INFO-PRST Functions Permission Transparency Set: INFO-PRST? Get: End User Public Description Syntax Set: #INFO-PRST?CR Get: Get maximum preset count Response ~nn@INFO-PRSTSPVIDSPpreset_video_count,AUDSPpreset_audio_countCR LF Parameters preset_video_count – Maximum number of video presets in the unit preset_audio_count – Maximum number of audio presets in the unit...
  • Page 79 Kramer Electronics Ltd. MTX-MODE Set/get to auto-switch mode VMUTE Set/get video on output status ROUTE Set/get layer routing MTX-MODE Functions Permission Transparency MTX-MODE Set: End User Public MTX-MODE? Get: End User Public Description Syntax #MTX-MODESPoutput_id,modeCR Set: Set auto-switch mode #MTX-MODE?SPoutput_idCR...
  • Page 80 Kramer Electronics Ltd. VMUTE Functions Permission Transparency VMUTE Set: End User Public VMUTE? Get: End User Public Description Syntax #VMUTESPoutput_id,flagCR Set: Set enable/disable video on output #VMUTE?SPoutput_idSP CR Get: Get video on output status Response Set / Get: ~nn@VMUTESPoutput_id,flagCR LF Parameters output_id –...
  • Page 81 Kramer Electronics Ltd. #NET-DHCP?CR Get: Get DHCP mode Response ~nn@NET-DHCPSPmodeCR LF Parameters mode – 0 (Do not use DHCP. Use the IP address set by the factory or the NET-IP command), 1 (Try to use DHCP. If unavailable, use the IP address set by the factory or the NET-IP command) Notes Connecting Ethernet to devices with DHCP may take more time in some networks.
  • Page 82 Kramer Electronics Ltd. NET-MAC Functions Permission Transparency Set: NET-MAC? Get: End User Public Description Syntax Set: #NET-MAC?CR Get: Get MAC address Response ~nn@NET-MACSPmac_addressCR LF Parameters mac_address – Unique MAC address. Format: XX-XX-XX-XX-XX-XX where X is hex digit K-Config Example “#NET-MAC?”,0x0D...
  • Page 83 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
  • Page 84 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
