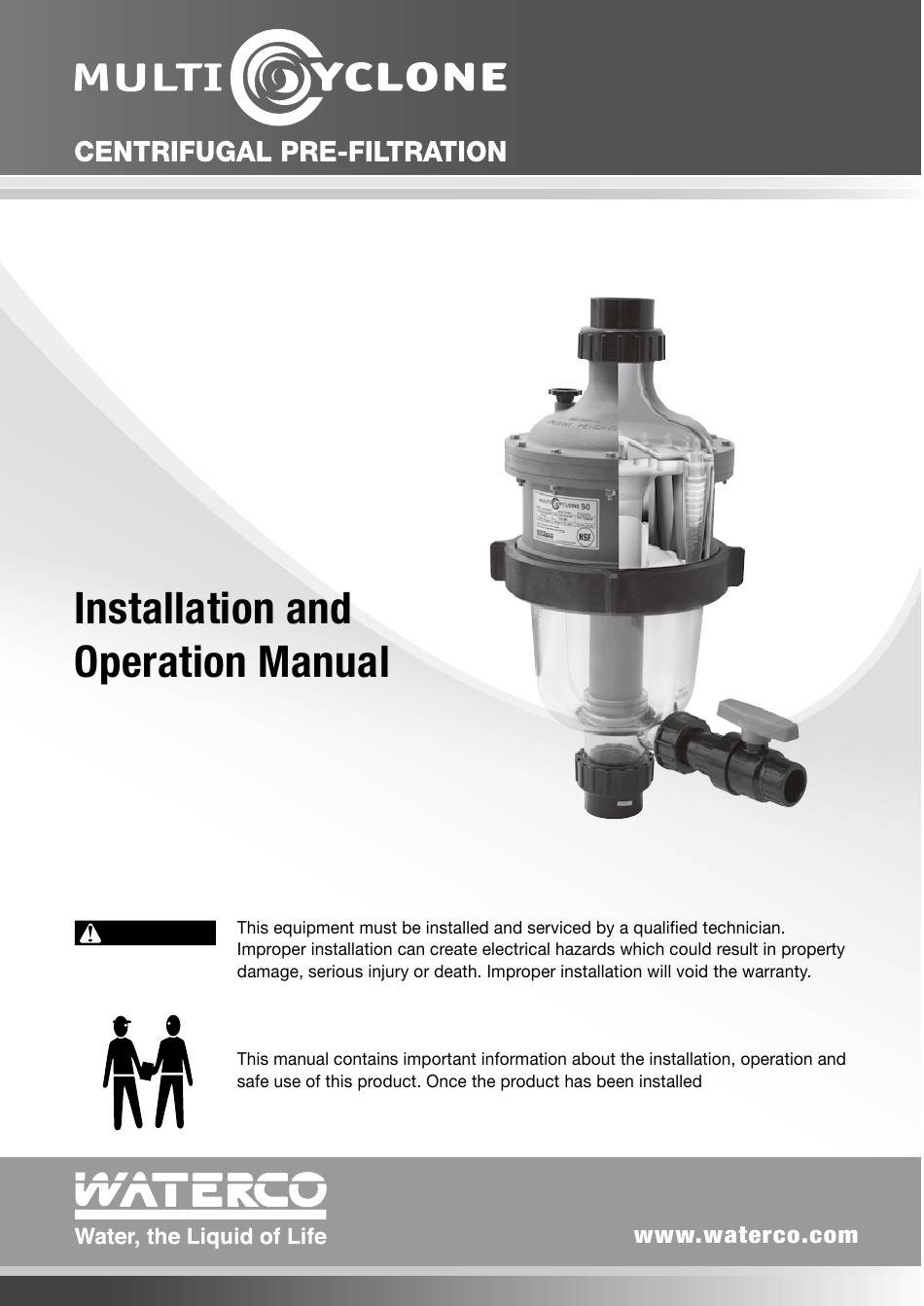

Waterco MultiCyclone Installation And Operation Manual
Centrifugal pre-filtration
Hide thumbs
Also See for MultiCyclone:
- Installation and operation manual (32 pages) ,
- Installation and operation manual (76 pages) ,
- Installation and operation manual (48 pages)
Related Manuals for Waterco MultiCyclone
Summary of Contents for Waterco MultiCyclone
- Page 1 WARNING Notice to Installer this manual must be given to the owner/ operator of this equipment.
- Page 2 6. In the event of defective operation or fault, contact Waterco or its nearest authorised service agent. 7. To reduce the risk of injury, do not permit children to use this product.
- Page 3 MULTICYCLONE MultiCyclone is a brilliant new pre ltration device that can save water and minimise pool lter maintenance. Based on the principals of centrifugal water ltration, MultiCyclone lters up to 80% of the pool’s dirt load before it reaches the pool lter and only requires 15 litres of water to cleanse.
- Page 4 50mm / 63mm [EU] / 2” outlet 16 multiple hydro Lock ring cyclones Sediment chamber 25mm / 32mm [EU] / 1” 50mm / 63mm [EU] sediment purge valve / 2” inlet INSTALLATION 1. Position the lter as close to the Swimming Pool / Spa as possible. 2.
- Page 5 MultiCyclone and hand tighten. 7. Connect from the outlet of the MultiCyclone to the inlet of your lter. Glue the plumbing to the Barrel unions and Allow 24 hours for glue (solvent) to set. Screw the barrel union on to the outlet of your MultiCyclone and hand tighten.
- Page 6 OPTIONAL MOUNTING STAND [200373] An optional Mounting Stand is also available for situations where the MultiCyclone cannot be installed directly above your pool pump. Installation with optional Mounting Stand FILTER MAINTENANCE Filter maintenance determined by the following conditions: 1. The ow rate through the MultiCyclone is insuf cient to meet the demand.
- Page 7 2 way shut off valve and close the purge valve. Installation with 2 way shut off valve If the MultiCyclone is installed as a pre- lter to a sand lter, water ow to the sand lter can be closed via the sand lter’s multiport valve.* Operation of the Multiport Valve or mode selection is to be always done with the pump switched off.
