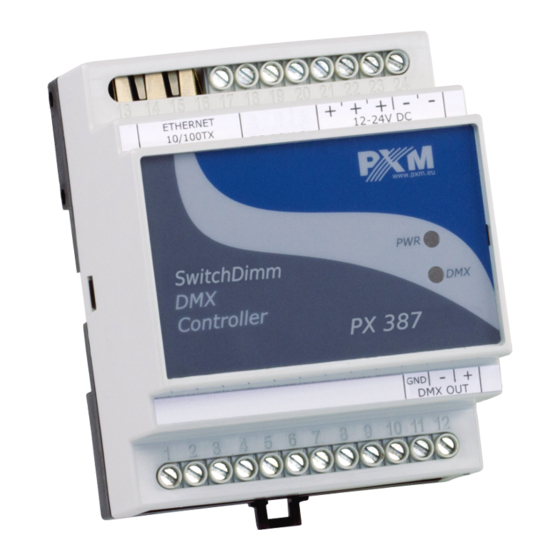

PXM SwitchDimm PX387 Manual

Dmx controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PX387
SwitchDimm DMX
Controller
MANUAL
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SwitchDimm PX387 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PXM SwitchDimm PX387

Summary of Contents for PXM SwitchDimm PX387

  • Page 1 PX387 SwitchDimm DMX Controller MANUAL...

  • Page 2: Table Of Contents

    12. Technical specification................Declaration of conformity................Manufacturer reserves the right to make modifications in order to improve device operation. tel.: (12) 626 46 92 PXM Marek Żupnik spółka komandytowa fax: (12) 626 46 94 ul. Przemysłowa 12 E-mail: info@pxm.pl 30-701 Kraków, Poland ver.

  • Page 3: General Description

    1. GENERAL DESCRIPTION The PX387 driver was designed to cooperate with the PX314 dimmer as an extension module, but it can be used independently as a DMX signal controller. The device sends 512 channels which are controlled on the ON/OFF basis or continuously with the use of the slider.

  • Page 4: Wiring Diagram

    3. CONNECTION DIAGRAM Power Supply 12-24V DC effects e.g. PxArt laps...

  • Page 5: Driver Network Settings

    4. NETWORK SETTINGS OF THE CONTROLLER The controller stores the static network configuration. It is always used when static addressing mode was selected or in automatic addressing mode, when it was not possible to get the configuration settings from the DHCP server. The controller can run in one of the two modes: ţ...
  • Page 6 Below are some typical examples of network configuration: a) Automatic addressing Smartphone: smartphone receives Router: configuration on its own e.g: 192.168.0.100 Mask: 255.255.255.0 ţ DHCP server PX387: IP, mask and gate - optional ţ DHCP b) Static addressing Smartphone: 192.168.0.2 Mask: 255.255.255.0 Default gateway: 192.168.0.100...

  • Page 7: Software Installation

    To install software: 1. Upload *.apk installation file available on the CD supplied with the device or downloaded from the PXM website to your phone. You can also download the app from the Google Play store using a QR code: 2.

  • Page 8: Start Of Operation

    6. START OF OPERATION After running the application, the following options are available on the screen: „offline” mode Wi-Fi network selection refreshing the list of available drivers list of the selected network drivers with which the user can connect, driver IP address 6.1.

  • Page 9: Logging On

    Click in the edit box to display the keyboard cache. The settings will be saved after you select and provide the administrator password. It is also possible to exit the tab without changing the settings after selecting the [Back] pushbutton on the phone 6.2.

  • Page 10: Structure Of The Application Window

    6.3. Structure of the application window After logging in, the application goes to the control screen. The application window consists of the following components: name of the currently displayed tab drop-down menu selection of the currently displayed log out from the zone driver channel enabled...

  • Page 11: Creating Configurations

    The user account has limited abilities – can only control channels. The administrator can edit all the settings. 7. CREATING CONFIGURATIONS If there are no zones created, the workspace screen displays the following message: “There are no created zones”. Select the [Add] option to go to the [Edit zones] screen. NOTE: If the smartphone is connected to the driver (it works online), the introduced changes are sent to the device on an ongoing basis.
  • Page 12 drop-down menu channel is assigned to the currently edited zone channel is already assigned to another zone, it cannot be assigned to the zone channel is disabled, it is not assigned to any zone slider-controlled channel switch-controlled channel Menu contains context commands Set all active - assignment of all available channels to the zone ź...

  • Page 13: Control

    8. CONTROL The main screen displays buttons used to control the channels. Each channel has one tile. The tile is highlighted when the channel is enabled. A single click on the button changes the channel or opens the slider. Press and hold the button to change the button order (this option is available only to the administrator).

  • Page 14: Safety

    9. SECURITY Switching to the [Security] tab allows you to change the administrator and user passwords and select whether the user account will be used. to change the administrator password you must provide the previous password and type the new one twice user account activation option to hide/show the password 10.

  • Page 15: Technical Drawing

    11. TECHNICAL DRAWING 60mm 12. TECHNICAL SPECIFICATION - power supply: 12 - 24V DC - no-load current consumption: 70 mA for 12V DC 40 mA for 24V DC - output DMX channel: - communication port: - programmable: - zones: - weight: 0,11 kg - dimensions: Width: 70 mm (4 DIN rail modules)

  • Page 16: Declaration Of Conformity

    30-701 Kraków fax: 12 626 46 94 DECLARATION OF CONFORMITY according to guide line 2004/108/WE Name of producer: PXM Marek Żupnik sp. k. Manufacturer’s address: ul. Przemysłowa 12 30-701 Kraków We declare that our product: Product name: SwitchDimm DMX Controller...
