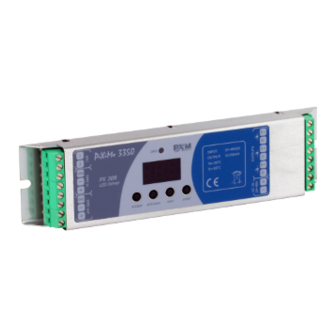

- Page 1 PX308 PiXiMo 3350 LED Driver 3 x 350 mA 48V DC MANUAL...
-
Page 2: Table Of Contents
The manufacturer reserves the right to make changes in the functioning and operation of the controller, in order to improve the product. tel.: +48 12 626 46 92 PXM Marek Żupnik spółka komandytowa fax: +48 12 626 46 94 ul. Przemysłowa 12 E-mail: info@pxm.pl... -
Page 3: General Description
1. GENERAL DESCRIPTION The PX308 driver is designed to control LEDs. The device has been placed inside metal housing. The built-in DMX receiver allows for activating 3 channels (R, G, B) by using directly the DMX protocol. A wide range of supply voltage and a high level of current-carrying capacity enable activating large quantities of LEDs. -
Page 4: Connections And Control Elements Description
3. CONNECTIONS AND CONTROL ELEMENTS DESCRIPTION Temperature sensor input Display DMX-512 input Control outpus DMX-512 output Power supply Control buttons 4. DISPLAYED MESSAGES AND THEIR MEANING driver's DMX addres - the basic menu state setting the parameters for all channels concurrently setting the parameters individually for each channel DMX address setting control mode settings (RGB or BRIGHTNESS / COLOUR) -
Page 5: Dmx Address Setting
program no. 17 setting the address of the first channel turning ON/OFF of MASTER mode emitted channels number in the MASTER mode white balance settings red colour balance green colour balance blue colour balance turning the white balance on / off program playing speed program step-to-step fading smoothness red colour setting during scene programming... -
Page 6: Master / Slave Feature
5. DMX ADDRESS SETTING The PX308 module's menu allows to set the device's DMX address in a range from 1 to 510. The module takes up 3 subsequent DMX addresses, when set to 510, last channel has 512 address. To set the DMX address: ENTER ENTER 1. -
Page 7: White Balance
7. WHITE BALANCE Achieving the white colour on RGB LEDs is many cases may be a problem. It can be caused by applying diods of different technical specification. For that reason the PX308 driver is provided with the white balance feature. With this feature you can set the right colour temperature for full control of all three outputs (to reach true white colour). -
Page 8: Individual Settings
Description of EFF mode - effect mode. EFF mode (effect) settings CHANNEL 5 CHANNEL1 CHANNEL 2 CHANNEL 3 CHANNEL 6 CHANNEL 7 CHANNEL 4 – TRYB GREEN BLUE SPEED FADE BRIGHTN. < 0 7 > Program1 < 8 - 15 > Program2 <... -
Page 9: Reaction To Dmx Signal Interruption
If you select the operating mode in the menu, which limits the number of channels in relation to the maximum value, you can not program individually address that are out of range of selected mode. For example, when you select mode only address 1 and 2 can be individually assign the selected value. -
Page 10: Programs' Description
Feature - to adjust the program's steps fading speed in one of the sequences press "enter" button. Using the "next" or "previous" button set the FAd parameter and press "enter". Adjust the fading speed from 0 (immediate step-to-step change) to 100 (change completely smooth) with "next"... -
Page 11: Temperature Limitations
12. TEMPERATURE LIMITATIONS PX308 has a built-in feature to reduce outputs power depending on the temperature value read from the sensor mounted in the lamp. This allows you to program the temperature beyond which, power limitation of outputs will start to work or the connected lamp will be switched off completely. The product is designed to work only with the NTC thermistor 4K7. -
Page 12: Er0 Error Message
13. Er0 ERROR MESSAGE In case of not connecting to the PX308 any temperature sensor and the simultaneous activation of the limit temperature (after setting option in the submenu ) the driver displays a message you that there is no temperature sensor. This information appears in the main menu instead of starting address DMX channel, and in the same time connected to outputs of the PX308 LEDs are turned off. -
Page 13: Smooth
16. SMOOTH In addition, the driver is equipped with smooth option. It allows smooth changes in brightness and color of connected LEDs. When running the option transitions between successive DMX values sent to the lamp (e.g. corresponding to the brightness changes) occur smoothly, with no visible breaks what prevents common for lighting "flickering"... -
Page 14: Display Reversing Feature
The default settings in PX308 are as follows: DMX address - 1, driver operating mode - RGB (3b - 3-byte), POWER ON ENTER master mode - off, HOLD PREVIOUS number of sent DMX channels - 128, ESCAPE white balance - off no signal operating mode - Program 1 smoothing function (smooth) - off temperature limitation - off... -
Page 15: Programming
19. PROGRAMMING REMARKS: 1. ENTER enters the submenu and ENTER ENTER ENTER confirms your choice. NEXT 2. ESCAPE leaves the current menu NEXT without making changes. ENTER 3. NEXT scrolls the menu forwards and NEXT increases the parameters. 4. PREVIOUS scrolls the menu backwards NEXT and decreases the parameters. -
Page 16: Connection Scheme
20. CONNECTION SCHEME Due to use of passive-type DMX in the PX308 driver, a terminator is needed at the end of DMX line. Such a solution allows to connect up to 32 of the PX308 drivers to a DMX controller (serial connection). -
Page 17: Dimensions
21. DIMENSIONS 175 mm 22. TECHNICAL SPECIFICATION - DMX channels - power supply 24 V DC for 6-8 LEDs 48 V DC for 9-12 LEDs - current consumption max. 1,1 A - no-load current consumption 17 mA for 24 V DC 10 mA 48 V DC - output channels number... -
Page 18: Declaration Of Conformity
30-701 Kraków, Poland fax: +48 12 626 46 94 DEKLARACJA ZGODNOŚCI z dyrektywą nr 2004/108/WE i 2006/95/WE Name of producer: PXM Marek Żupnik limited partnership Address of producer: ul. Przemysłowa 12 30-701 Kraków, Poland declares that the product: Name of product:...
