SET COMMUNICATION:

This section defines the fundamental communication parameters of EtherNet/IP.
By Pressing the "Set Communication" button from the main window for SW67871 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "IO-LINK" are:
In the fields "Select Device" the type of IO-LINK channels is defined;
The means of the fields for "EtherNet/IP" are:
In the fields "IP Address" the IP address for EtherNet/IP side of the converter is
defined;
In the fields "SubNet Mask" the SubNet Mask for EtherNet/IP side of the converter is
defined;
In the fields "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the field "Port" the port used for EtherNet/IP communication is defined;
In the field "Number Bytes
defined;
In the field "Number Bytes
defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Input" the number of input bytes of the converter is
Output" the number of output bytes of the converter is
User Manual IO-Link / EtherNet/IP Slave
Document code: MN67871_ENG Revision 1.000

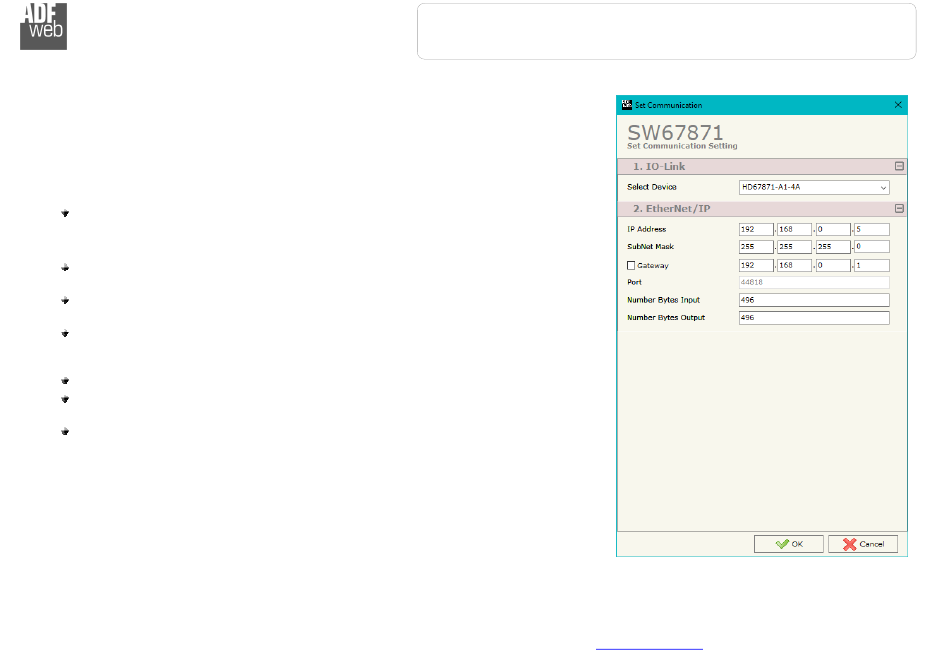

Figure 3: "Set Communication" window
