The EHEDG certificate is only valid in connection with the appropriate installation parts.
These are marked with the "EHEDG Certified" logo.
The 3-A Sanitary Standard requirements are only met with the appropriate installation parts.
These are marked with the 3-A logo.
6.

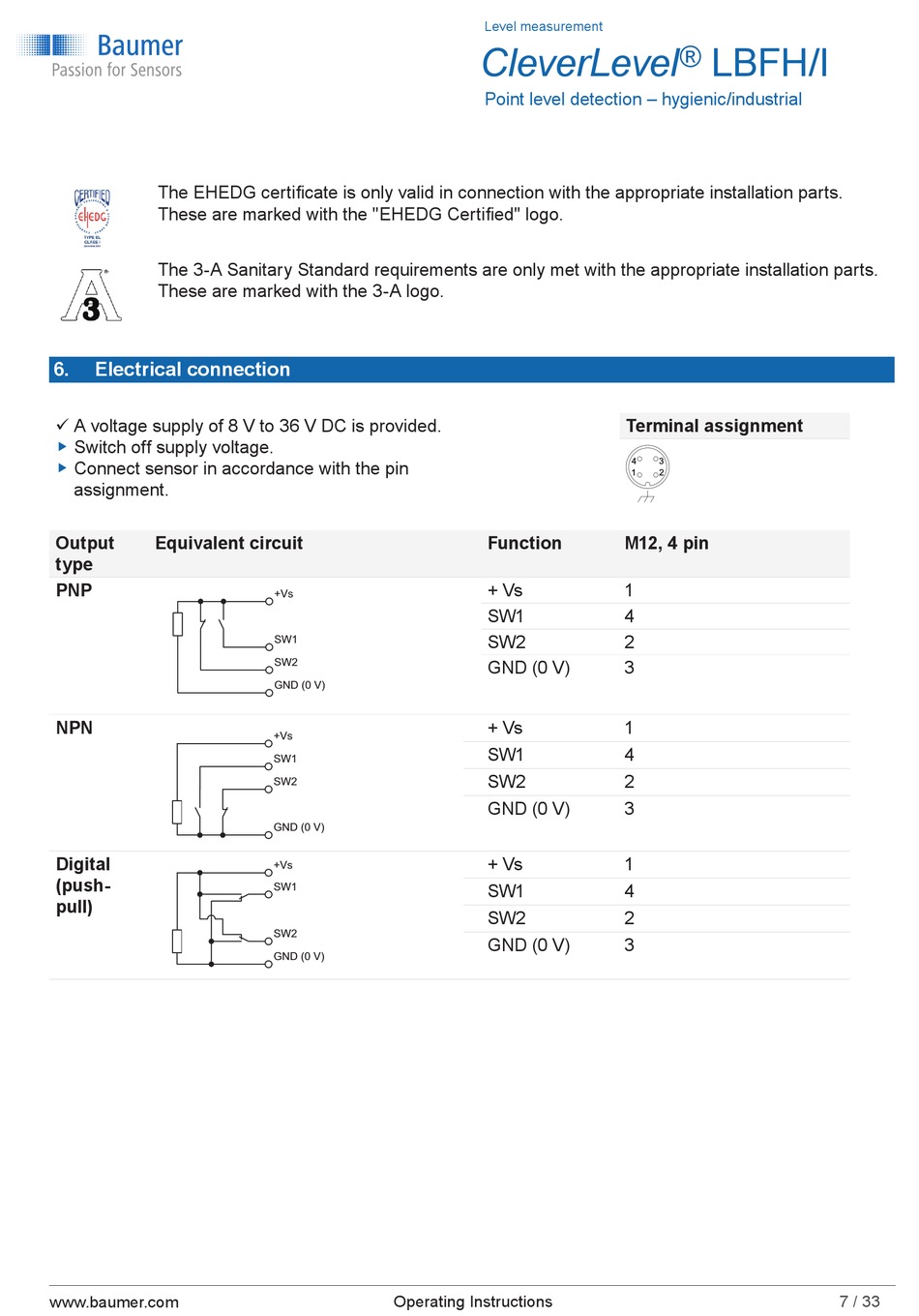

Electrical connection

9 A voltage supply of 8 V to 36 V DC is provided.
Switch off supply voltage.
f
„
Connect sensor in accordance with the pin
f „
assignment.
Output Equivalent circuit
type
PNP
NPN
Digital
(push-
pull)
www.baumer.com
+Vs
SW1
SW2
GND (0 V)
+Vs
SW1
SW2
GND (0 V)
+Vs
SW1
SW2
GND (0 V)
Operating Instructions
Level measurement
CleverLevel
Point level detection – hygienic/industrial
Terminal assignment
4
1
Function M12, 4 pin
+ Vs 1
SW1 4
SW2 2
GND (0 V) 3
+ Vs 1
SW1 4
SW2 2
GND (0 V) 3
+ Vs 1
SW1 4
SW2 2
GND (0 V) 3
® LBFH/I
3
2
