CleverLevel
Point level detection – hygienic/industrial

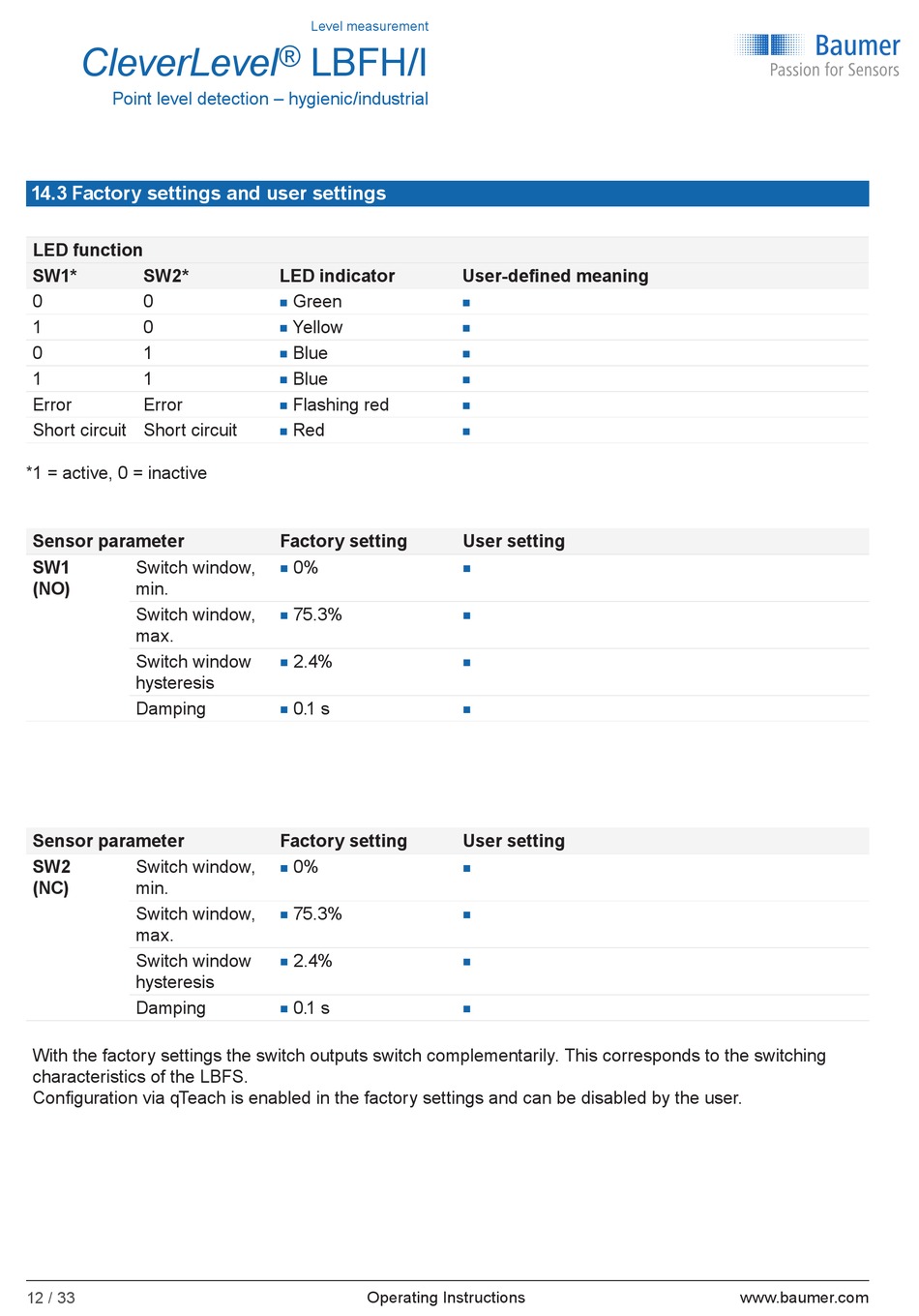

14.3 Factory settings and user settings
LED function
SW1* SW2*
0 0
1 0
0 1
1 1
Error Error
Short circuit Short circuit
*1 = active, 0 = inactive
Sensor parameter
SW1 Switch window,
(NO) min.
Switch window,
max.
Switch window
hysteresis
Damping
Sensor parameter
SW2 Switch window,
(NC) min.
Switch window,
max.
Switch window
hysteresis
Damping
With the factory settings the switch outputs switch complementarily. This corresponds to the switching
characteristics of the LBFS.
Configuration via qTeach is enabled in the factory settings and can be disabled by the user.
12 / 33
Level measurement
® LBFH/I
LED indicator
Green
„ „
Yellow
„ „
Blue
„ „
Blue
„ „
Flashing red
„ „
Red
„ „
Factory setting
0%
„ „
75.3%
„ „
2.4%
„ „
0.1 s
„ „
Factory setting
0%
„ „
75.3%
„ „
2.4%
„ „
0.1 s
„ „
Operating Instructions
User-defined meaning
„ „
„ „
„ „
„ „
„ „
„ „
User setting
„ „
„ „
„ „
„ „
User setting
„ „
„ „
„ „
„ „
