Automatic thickness controller for sawing frame machines
Table of Contents

Advertisement

Point – 6
Sawing frame machine where the controller is mounted should be equipped with
Sawing frame machine where the controller is mounted should be equipped with
Sawing frame machine where the controller is mounted should be equipped with
head saw up and down feeding contactors ( relays). Contactors steering should be connected
head saw up and down feeding contactors ( relays). Contactors steering should be connected
head saw up and down feeding contactors ( relays). Contactors steering should be connected
in a such way that it is impossible to work them both in the same time (connecting of one
in a such way that it is impossible to work them both in the same time (connecting
in a such way that it is impossible to work them both in the same time (connecting
contactors cause disconnecting of the other). To create such a way of connection please use
contactors cause disconnecting of the other). To create such a way of connection please use
contactors cause disconnecting of the other). To create such a way of connection please use
ancillary contactors and connect them according to the diagram below.
ancillary contactors and connect them according to the diagram below.

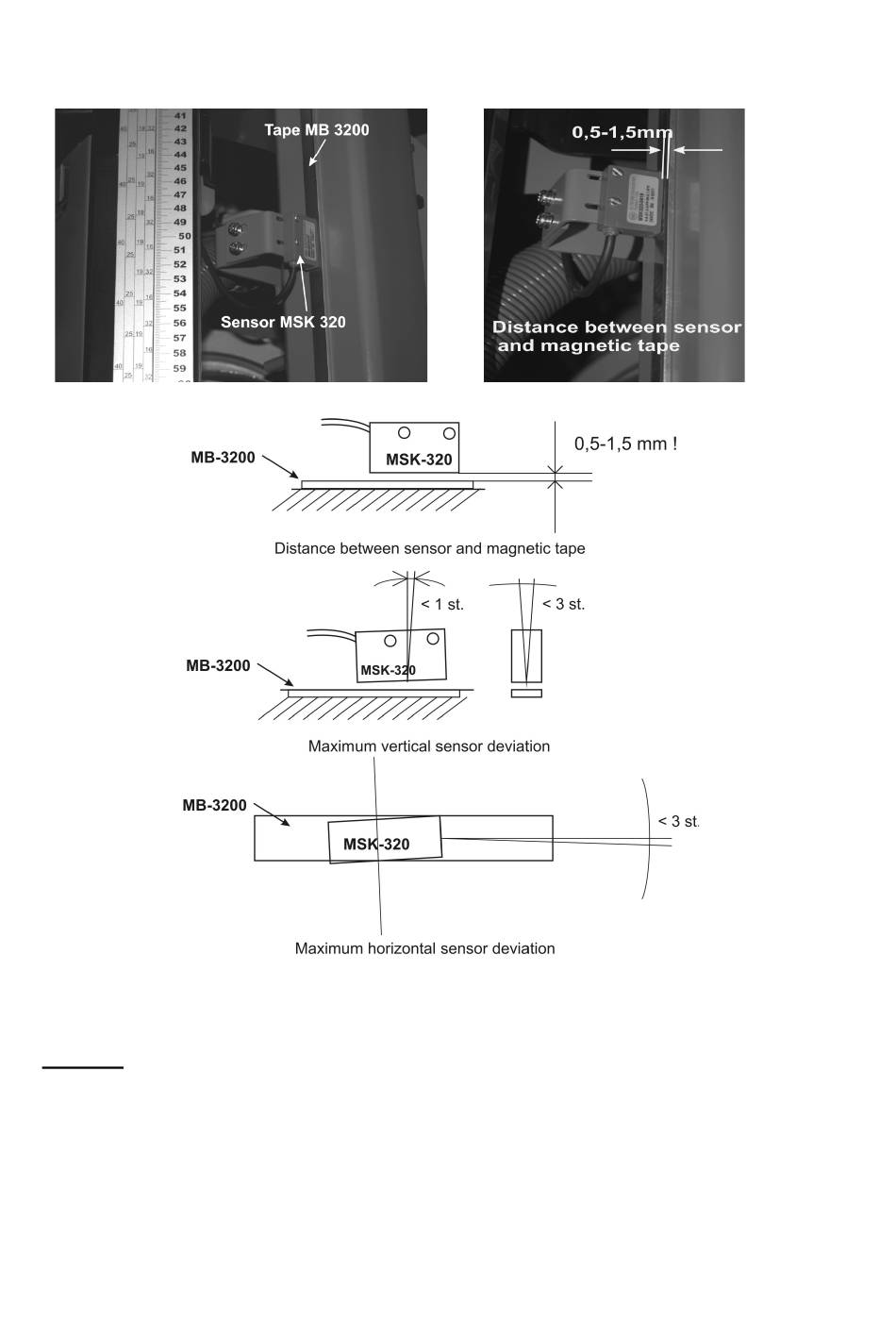

Fig. 5 Sensor and magnetic tape mounting example
Fig. 5 Sensor and magnetic tape mounting example

Head saw steering outputs connection

Head saw steering outputs connection
www.selbit.pl
- 6 -
