Using Own Created Cutting Programs (A, B C) - Selbit ISP - 010 Manual Handbook

To call out the program press and hold A. B or C button. After calling out the proceedings
is the same like in case of the quick program.
Changes of the value in any positions during executing the actual program are not saved, there
are used only in the actual program thus after next call out the program is not changed.
If the cutting value is close to the point where the end switch will react the controller
cause up movements of the head saw and then actual feed move. It is necessary for the
controller to set up small value of the cut.
In this case position of the head saw is make without under dimension movement and
its stopped while moving from top to the bottom. In some cases it can cause increase of the
accuracy of the last dimension positioning if its value is smaller or equal 30 mm.

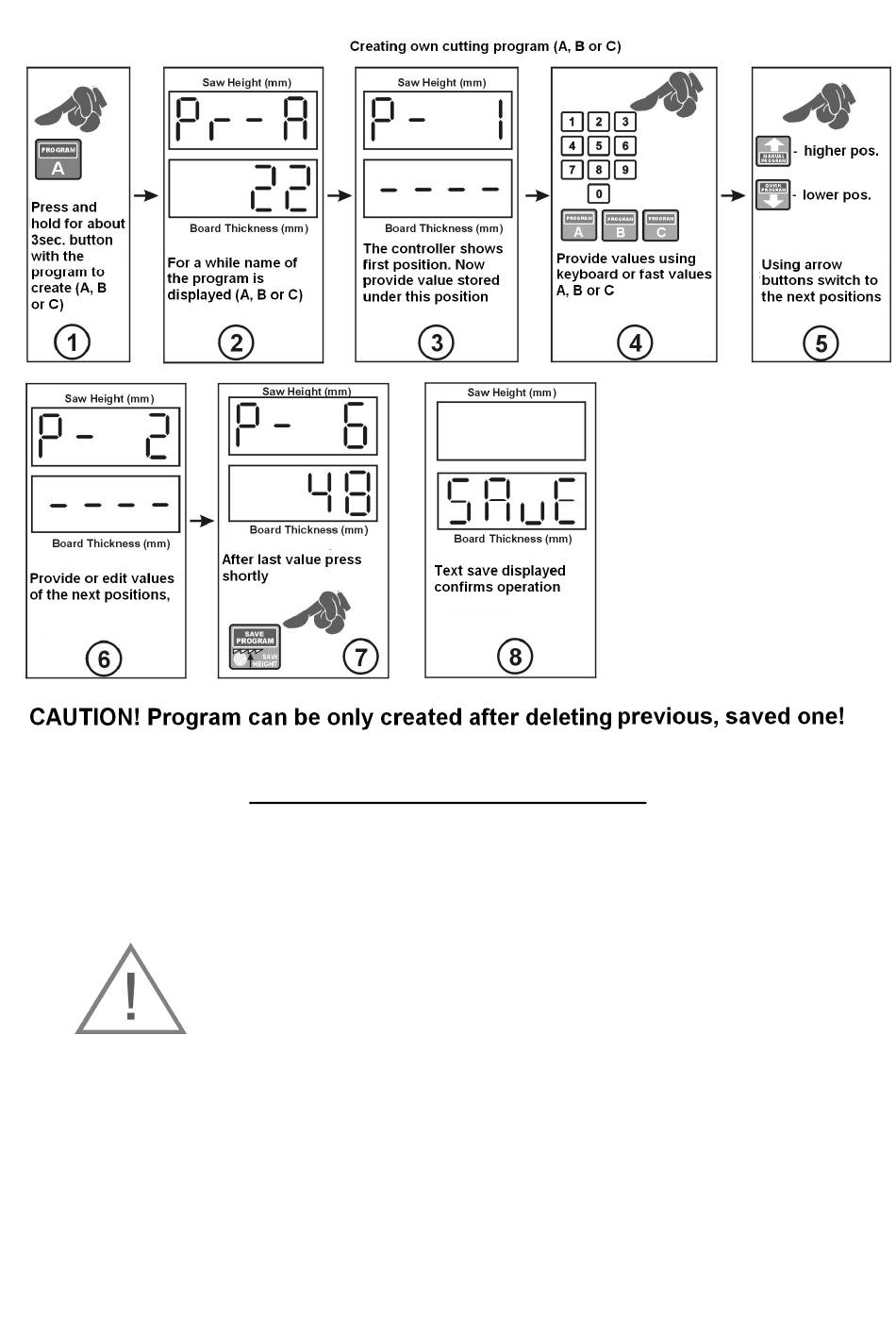

Using own created cutting programs (A, B C)

CAUTION!!!
www.selbit.pl
- 21 -
