Turning Off And On Accessing Movement; Additional Buttons Wiring - Selbit ISP - 010 Manual Handbook

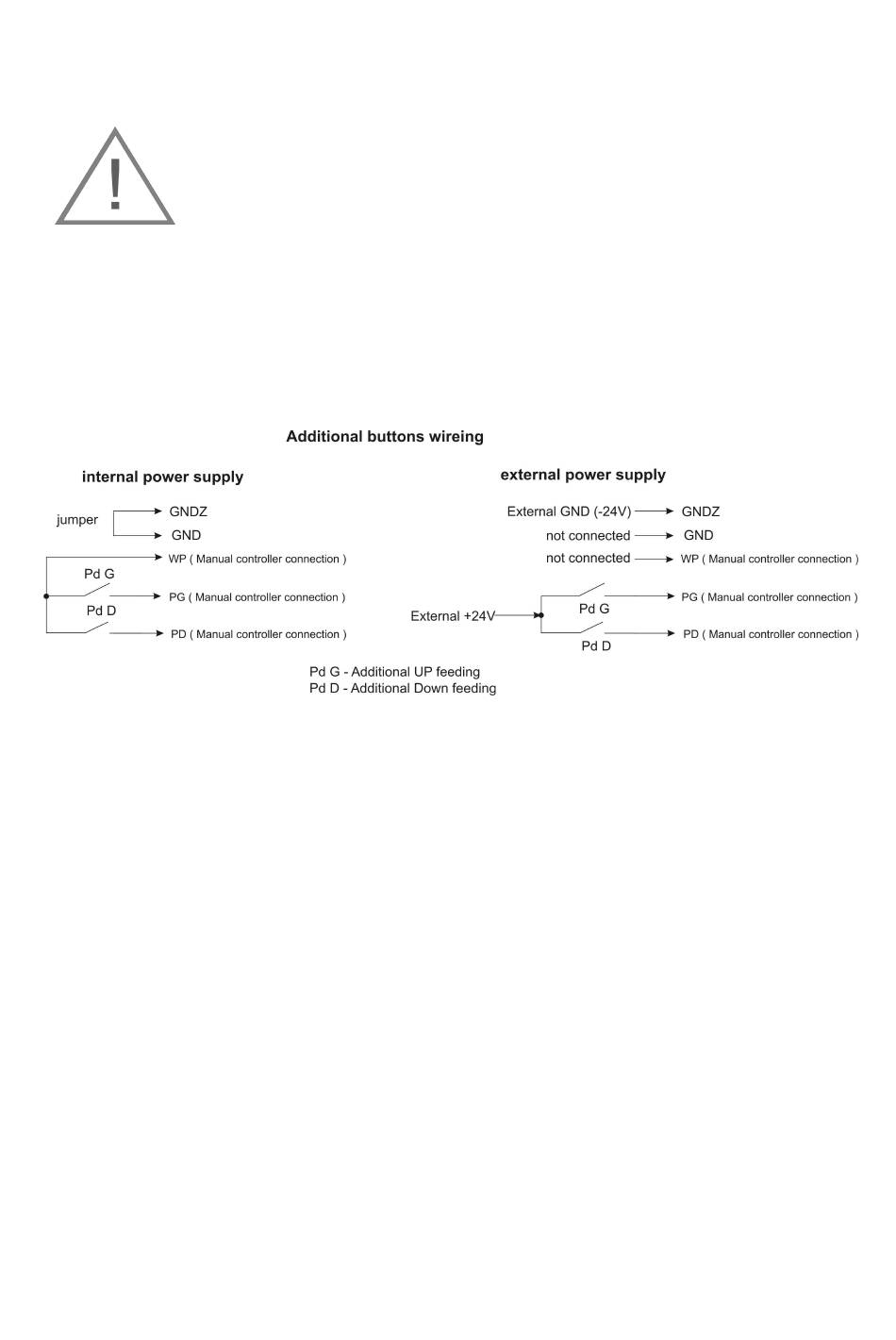

Controller ISP-010 is adapted to cooperation with additional control buttons "Saw UP" and
"Start/Next Cut" which can be used for manual controlling of the up and down feeding of the
head saw.
Additional buttons should not be wired to any other electric circuit
except main controller electric board in corresponding connection!!!
Additional turning on and off of the controller is available by short pressing trace saw
change button (Remote ON/OFF), turning on is signalized by "Remote Control" led on. In
normal mode after turning on the additional controlling it cause move of the head saw in the
corresponding directions till its pressing. In cutting program mode additional buttons work as
"saw UP" and "Start/Next Cut".
Turning off and on accessing movement to measurement from the bottom:
The standard procedure of an accessing movement to given measurement in case of most
machine consists of a downward movement below given measurement and a short access
movement to the measurement (upwards). This guarantees a maximally adequate precision of
measurement adjustment.
In case of machines whose head moves relatively slowly, one can skip the upward movement,
which shortens the time needed for head's adjustment to given measurement.
The controller has a new functionality – the possibility to turn off the upward access
movement.
In order to turn off/on the upward access movement, one should:
1 –Press and hold the EXIT button while the controller is on for about 3s (the word UP will
appear on the top screen and Clror Set on the bottom screen depending on the current
parameter settings)
2 –Buttons with arrows (up and down arrows) are used to adjust the desired working mode
(settingClrresults in turning off the upward movement, and setting Set results in turning
on the upward movement).
3 –The choice is confirmed by a short pressing START button, and Save button confirms the
selected choice.
The controller keeps the selected adjustment once the power is off.
