General Information

System Diagram

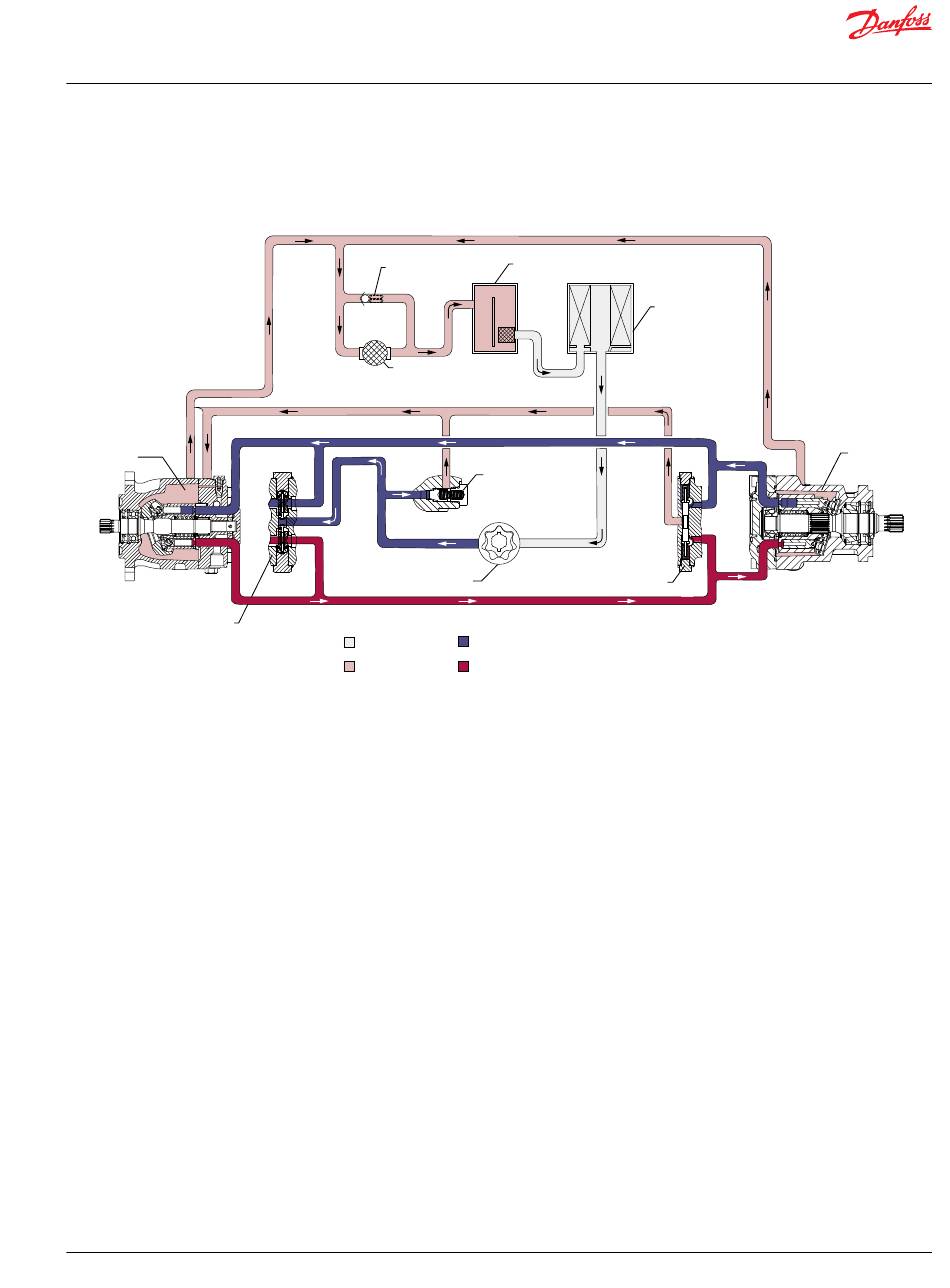

Pictorial system diagram
Variable
Displacement
Pump
High pressure
relief/check valves
© Danfoss | November 2020
Heat exchanger
bypass
Heat
exchanger
Charge
pump
Suction flow
Case flow
The system diagram above shows the MP1 motor in a simple closed-loop hydrostatic propel application.
The motor is driven by a variable displacement pump. The motor shows an integral loop flushing option
that will remove heat and contaminants from the main loop.
Reservoir
Filter
Charge pressure
relief valve
Loop flushing valve
Working Loop (Low Pressure) and Charge Pressure
Working Loop (High Pressure)
MP1
Axial piston
Motor
P400619
