- Page 1 PSEN ma1.3b-24 VA PSEN sensor technology Operating Manual-22227-EN-03...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............Installation ..........................Adjustment ..........................Periodic test ........................... Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Order reference ........................System ............................EC declaration of conformity ....................Operating Manual PSEN ma1.3b-24 VA 22227-EN-03... -
Page 4: Introduction
PSEN ma1.3b-24 VA Introduction Validity of documentation This documentation is valid for the product PSEN ma1.3b-24 VA. It is valid until new docu- mentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
Safety regulations Safety assessment Before using a device it is necessary to perform a safety assessment in accordance with the Machinery Directive. Operating Manual PSEN ma1.3b-24 VA 22227-EN-03... -
Page 6: Use Of Qualified Personnel
In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN ma1.3b-24 VA 22227-EN-03... -
Page 7: For Your Safety

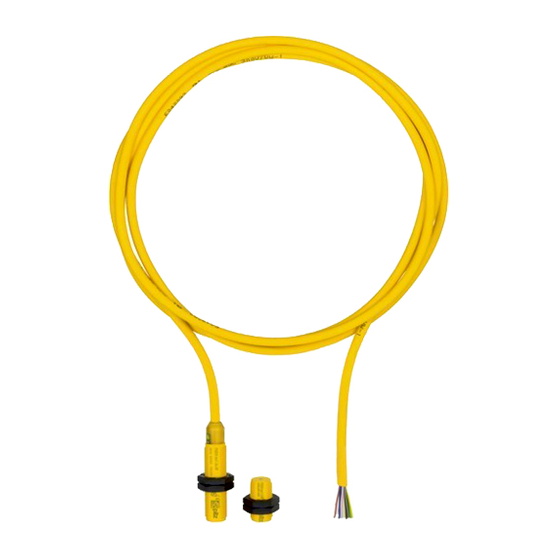

2 safety contacts (reed contacts - N/O) 1 auxiliary contact (N/O) Design: cylindrical with threaded sleeve – Safety switch M12 – Actuator M12: PSEN ma1.3-08 EX VA Operation Magnetic Switching voltage 24 VDC LED to display switch status Operating Manual PSEN ma1.3b-24 VA 22227-EN-03... -
Page 8: Function Description
If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed and the LED will light. Operate the PSEN ma1.3b-24 VA in conjunction with the following components: Actuator PSEN ma1.3-08 EX VA (see... -
Page 9: Lateral And Vertical Offset
Technical details [ 17]) / km = Cable resistance/km of the cable (see technical details cable) l Ensure the wiring and EMC requirements of EN 60204-1 are met. Refer to the notes on wiring in EN 60079-14. Operating Manual PSEN ma1.3b-24 VA 22227-EN-03... -
Page 10: Pin Assignment
– cannot be connected in series – may not be used for safety circuits Requirements and connection to evaluation devices For use of PSEN ma1.3b-24 VA in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma1.3b-24 VA... - Page 11 The risk time is made up of the reaction time of the sensor (see Technical details [ 17]) and the processing and delay times of the evaluation device (s. operating manual for the relevant evaluation device). Operating Manual PSEN ma1.3b-24 VA | 11 22227-EN-03...
- Page 12 + 24 V PSENmag Evaluation device Input circuit Input circuit Non-Ex area Ex area Fig.: Dual-channel connection PSEN ma1.3b-24 VA to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag brown white blue...
-
Page 13: Installation
If possible, do not install the safety switch and actuator on to ferromagnetic material. Changes to the operating distances are to be expected. Make sure that the earthing is in accordance with the specifications in EN 60079-14. Operating Manual PSEN ma1.3b-24 VA | 13 22227-EN-03... - Page 14 Circumvention of the safety switch in a reasonably foreseeable manner must be preven- ted. Please note the installation measures in accordance with EN ISO 14119 for a proximity switch type 4 with coding level Low. Operating Manual PSEN ma1.3b-24 VA | 14 22227-EN-03...
- Page 15 Sensing face Attach the actuator using 2 M12x1 hexagonal nuts. Also note the max. torque setting (see Technical details [ 17]). Operating Manual PSEN ma1.3b-24 VA | 15 22227-EN-03...
-
Page 16: Adjustment
The safety function should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Dimensions in mm Safety switch M12x1 Actuator PSEN ma1.3-08/EX/VA M12x1 Operating Manual PSEN ma1.3b-24 VA | 16 22227-EN-03... -
Page 17: Technical Details
4000 m Max. operating height above sea level EN 60947-5-3 Vibration EN 60947-5-2 In accordance with the standard Frequency 10 - 55 Hz 1 mm Amplitude Shock stress Acceleration 11 ms Duration Operating Manual PSEN ma1.3b-24 VA | 17 22227-EN-03... - Page 18 12 mm Width 12 mm 25 mm Depth Weight of safety switch 220 g Weight of actuator 10 g 230 g Weight Where standards are undated, the 2017-09 latest editions shall apply. Operating Manual PSEN ma1.3b-24 VA | 18 22227-EN-03...
-
Page 19: Safety Characteristic Data
This product/these products meet the requirements of the following directives of the European Parliament and of the Council. 2006/42/EC on machines 2014/34/EU (ATEX) The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN ma1.3b-24 VA... - Page 20 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia +45 74436332 Brazil +61 3 95600621 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
