- Page 1 PSEN ma1.3n-20 PSEN sensor technology Operating Manual-22176-EN-09...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............Installation ..........................Adjustment ..........................Periodic test ........................... Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Order reference ........................System ............................Accessories ..........................EC declaration of conformity ....................Operating Manual PSEN ma1.3n-20 22176-EN-09... -
Page 4: Introduction

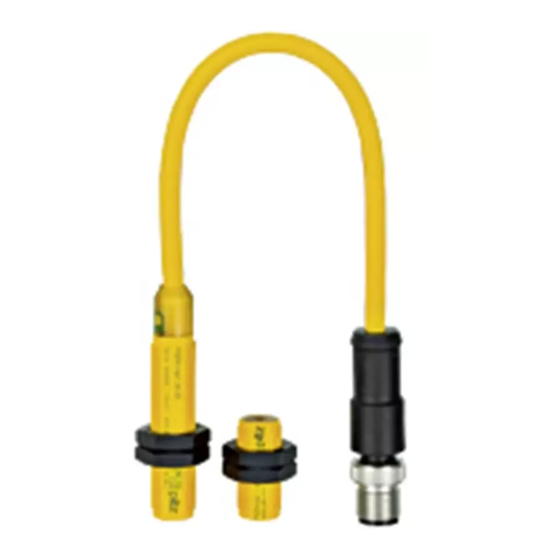

PSEN ma1.3n-20 Introduction Validity of documentation This documentation is valid for the product PSEN ma1.3n-20/with cube. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
EN ISO 13849 and EN 62061. However, this does not guarantee the functional safety of the overall plant/machine. To achieve the relevant safety level of the overall plant/ machine’s required safety functions, each safety function needs to be considered separ- ately. Operating Manual PSEN ma1.3n-20 22176-EN-09... -
Page 6: Use Of Qualified Personnel
– If spare actuators are used, these must be installed as described in Installation [ 15]. – If the original actuators are replaced with substitute actuators, the ori- ginal actuators must be destroyed before disposal. Operating Manual PSEN ma1.3n-20 22176-EN-09... -
Page 7: Unit Features
If the actuator is within the response range (safety gate closed), the safety contacts and the auxiliary contact on the safety switch will be closed and the LED will light. Operate the PSEN ma1.3n-20/with cube in conjunction with the following components: Actuator PSEN ma1.3-08 or actuator PSEN ma1.3-12 (see... -
Page 8: Block Diagram
Block diagram Safety switch Actuator Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 20]. Operating Manual PSEN ma1.3n-20 22176-EN-09... -
Page 9: Lateral And Vertical Offset
Lateral and vertical offset Actuator PSEN ma1.3-08 Legend [1] Lateral offset [2] Vertical offset [3] Sensing faces Assured operating distance S in mm Lateral offset Vertical offset The stated values are valid at a temperature of 20 °C. Operating Manual PSEN ma1.3n-20 22176-EN-09... - Page 10 The stated values are valid at a temperature of 20 °C. Negative vertical offset, not permitted Fig.: Safety switch and square actuator - side view Legend [1] Sensing face PSEN ma1.3-12 [2] Positive vertical offset, permitted [3] Negative vertical offset, not permitted Operating Manual PSEN ma1.3n-20 | 10 22176-EN-09...
-
Page 11: Wiring
Pin assignment NOTICE The colour marking for the connection lead only applies for the cable that Pilz supplies as an accessory The safety switch is shown in an unoperated condition. Assignment of brown... -
Page 12: Requirements And Connection To Evaluation Devices
PSEN ma1.3n-20 Requirements and connection to evaluation devices For use of PSEN ma1.3n-20/with cube in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN ma1.3n-20/with cube either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 13 Technical details [ of PSEN ma1.3n-20/with cube – Always comply with the max. switching current safety contacts of PSEN ma1.3n-20/ with cube. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock)
- Page 14 PSEN ma1.3n-20 Examples for connection to Pilz evaluation devices: 24 V PNOZ s3 PSENmag brown black white grey PNOZmulti PSENmag brown black white grey Legend I0 Input OSSD I1 Input OSSD T0 Test pulse output T1 Test pulse output Auxiliary contact with LED The auxiliary contact and the LED indicate the status of the safety contacts.
-
Page 15: Installation
Avoid the risk of damages from foreseeable external influences by attaching the safety switch and actuator. If necessary, safety switch and actuator have to be protected. INFORMATION Protect the actuator from unauthorised removal (e.g. via a screw lock or concealed installation) and from contamination. Operating Manual PSEN ma1.3n-20 | 15 22176-EN-09... - Page 16 The protection type (see Technical details [ 20]) can only be achieved by using the Pilz connection leads available as an accessory. Installation of safety switch Slide the switch through the hole in the mounting surface with the sensing face to- wards the actuator.
- Page 17 3 directions depend- ing on the direction of actuation. Slide the actuator on to the bracket in the required direction of actuation until the actuator clicks into place. Sensing face Operating Manual PSEN ma1.3n-20 | 17 22176-EN-09...
-
Page 18: Adjustment
Carry out a monthly function test on the safety switch and actuator. Always test the function with a connected evaluation device. The safety function may only be checked by qualified personnel. Dimensions in mm Safety switch 42,6 12,5 46,8 59,1 130±5 Operating Manual PSEN ma1.3n-20 | 18 22176-EN-09... - Page 19 PSEN ma1.3n-20 Actuator PSEN ma1.3-08 Actuator PSEN ma1.3-12 2xø4,5 Fig.: Actuator holder Operating Manual PSEN ma1.3n-20 | 19 22176-EN-09...
-
Page 20: Technical Details
EN 60947-5-3 Vibration In accordance with the standard EN 60947-5-2 EN 60947-5-2 Frequency 10 - 55 Hz 10 - 55 Hz Amplitude 1 mm 1 mm Shock stress Acceleration Duration 11 ms 11 ms Operating Manual PSEN ma1.3n-20 | 20 22176-EN-09... - Page 21 25 mm 25 mm Weight of safety switch 20 g 20 g Weight of actuator 11 g 26 g Weight 30 g 42 g Where standards are undated, the 2015-09 latest editions shall apply. Operating Manual PSEN ma1.3n-20 | 21 22176-EN-09...
-
Page 22: Safety Characteristic Data
PSEN op cable axial 10 m M12, 5-pin fe- 630312 M12 5-pole 10m male con- nector, straight PSEN cable 20 m M12, 5-pin fe- 630298 M12-5sf 20m male con- nector, straight Operating Manual PSEN ma1.3n-20 | 22 22176-EN-09... - Page 23 M12, 5-pin 380 215 M12am, 30m male con- male con- nector, angled nector, angled Input module Product type Features Order no. PDP67 F 8DI ION Decentralised input module IP67 for PNOZmulti 773 600 Operating Manual PSEN ma1.3n-20 | 23 22176-EN-09...
-
Page 24: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Authorised representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ostfildern, Germany Operating Manual PSEN ma1.3n-20... - Page 25 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
