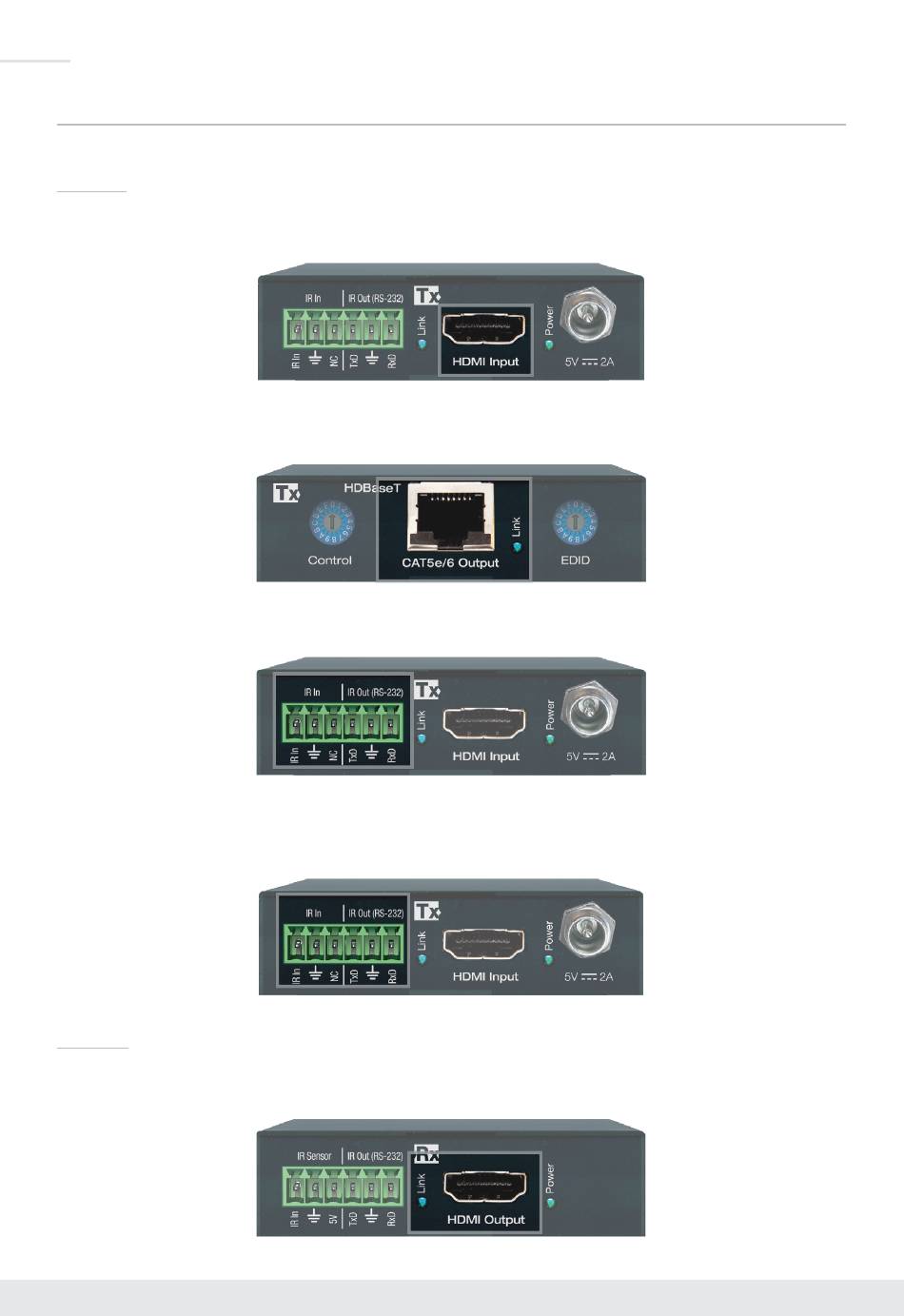

Connections

Before making any connections, power off your source and display devices .
Tx Unit:
Using a short HDMI cable, connect your source device to the HDMI port labeled "HDMI Input" .
›
For DVI-D/DVI-I sources, use appropriate adapters . For Display Port, use active converters .
Connect the CAT5e/6 UTP or STP cable that connects to the Rx Unit at the port labeled
›
"CAT5e/6 Output" . Use 568-B Termination .
Make IR In and Out connections to receive (IR In port) or send (IR Out port) control signals .
›
Refer to the "Extending IR & RS-232 Control" for more information .
Connect a stripped wire to DB9 adapter cable for bi-directional RS-232 control .
›
Refer to the "Extending IR or RS-232 Control" and the "RS-232 Commands" section for more
information .
Rx Unit:
Using a short HDMI cable, connect your output / display device to the HDMI port labeled
›
"HDMI Output" .
