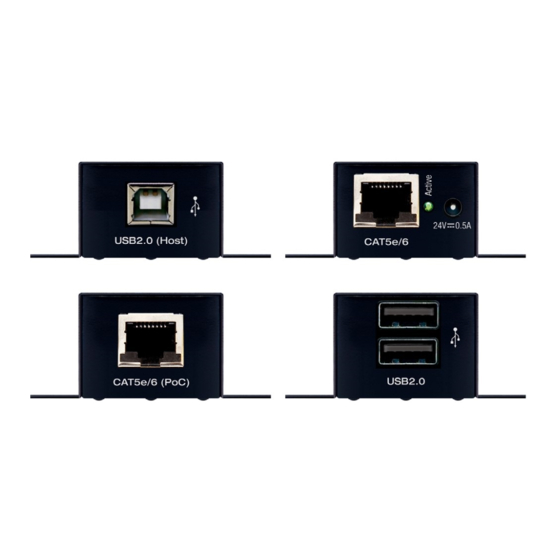

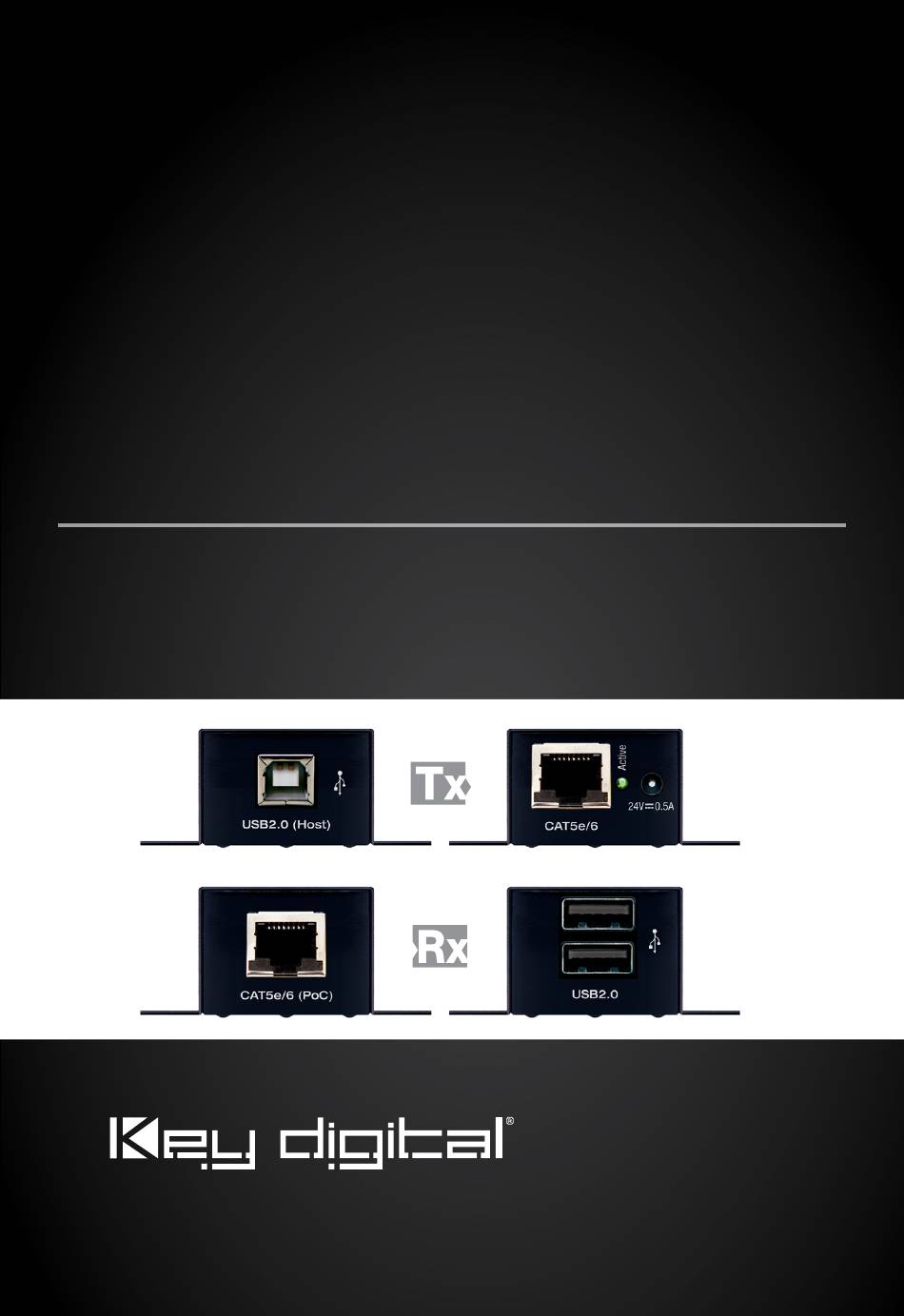

- Page 1 KD-XUSB2 USB2.0 over CAT5e/6 50m Extender Kit (Tx and Rx). Rx features built-in 2 Port USB Hub, Power over CAT. Operating Instructions The Experts in Digital Video Technology and Solutions ™...
- Page 2 Contacting Key Digital . . . . . . . . . . . . . . . . . . .
- Page 3 Introduction KD-XUSB2 is a USB 2 .0 transmitter + receiver extender kit that has been optimized for use with high bandwidth USB1 .1 -2 .0 devices, making it ideal in conference rooms and classrooms as well as in business offices and connected homes . KD-XUSB2 enables host laptops, computers, smart TVs or appliances to connect with devices such as web cams, keyboard and mouse, hard drives, printers and scanners, USB microphones, touchscreen displays, conferencing DSPs, and more .
- Page 4 Application Examples HDMI Use Key Digital HDMI ® HDMI Use Key Digital HDMI ® Cables or Extenders Cables or Extenders for Optimal Performance for Optimal Performance KD-CAMUSB KD-CAMUSB 1080p PTZ USB 2.0 1080p PTZ Conferencing USB 2.0 Conferencing Camera Camera...
- Page 5 For optimal performance, terminate CAT5e/6 cable using 568-B standard, avoid keystones/ › couplers, and remove excess cable length Tx unit provides power to Rx unit › KD-XUSB2 Tx unit is only compatible with KD-XUSB2 RX unit and vice versa. » Damage may occur if connected to any other devices .
- Page 6 Power, Link, Active LEDs Tx Active (green) illuminates solid when USB Host port is connected to Host PC/Computer . Steady › blink with active USB data transmission Rx Power (red) illuminates solid with power from Tx unit › Rx Link (green) illuminates solid with CAT5e/6 connection from Rx to Tx unit and Tx unit is ›...
- Page 7 » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital Warranty ® and risk damage to your unit and associated equipment. Contacting Key Digital ®...
- Page 8 Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers . Key Digital 521 East 3rd Street Mount Vernon, NY 10553 ® Phone 914.667.9700 914.668.8666 www.keydigital.com © 2020 Key Digital, Inc . All rights reserved .
