Settings

EDID Control
EDID authentication is provided from the KD-X222/ KD-X222PO Tx unit to the connected input / source
device . The EDID file (AKA "handshake") is selected using the EDID Control rotary on the Tx unit and
provides a list of compatible video and audio formats as well as digital data, informing the source device
what it should output . Most sources will comply with a new EDID file without a power-cycle, but each
source may behave differently .

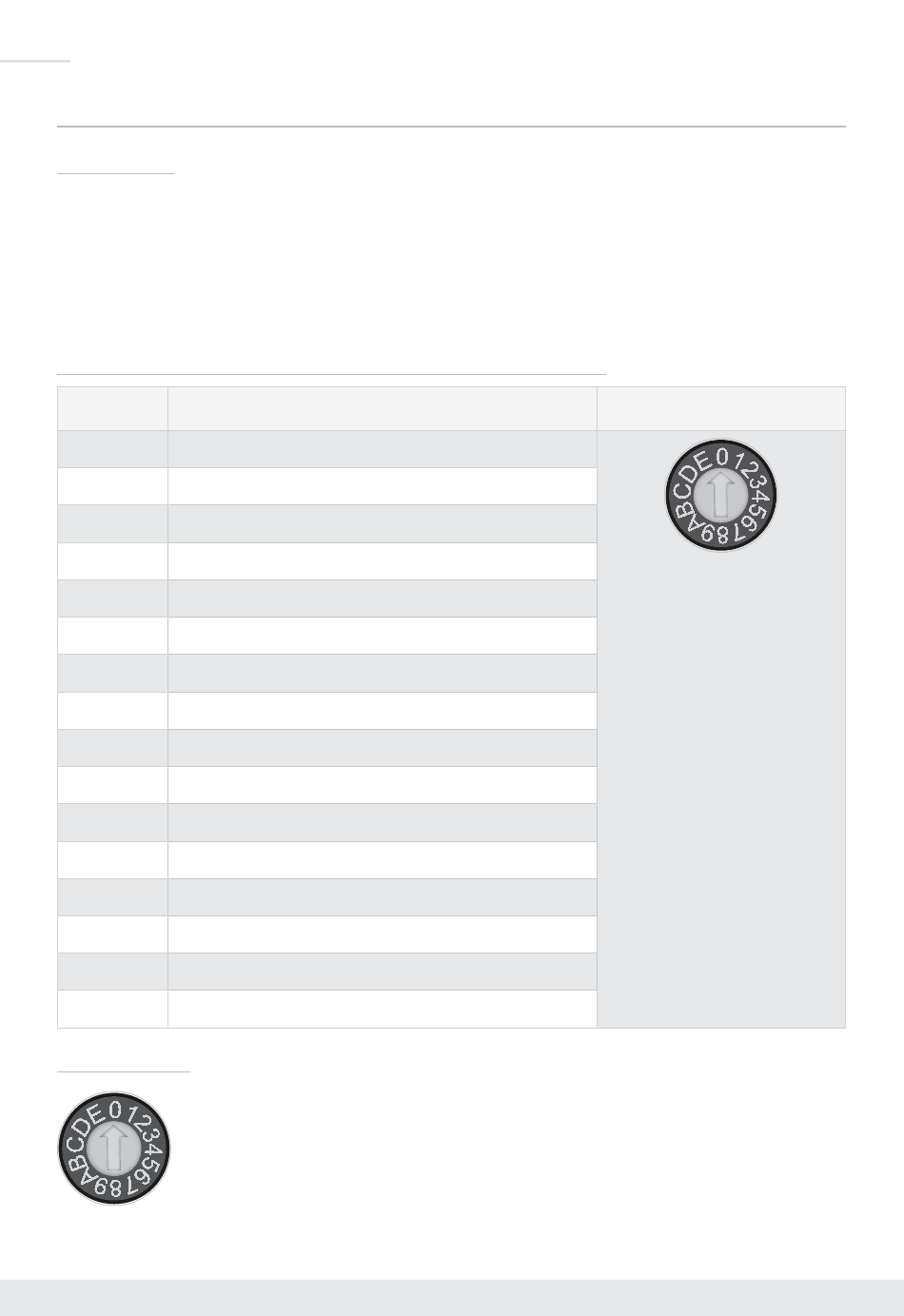

Default EDID Control Table, selected via EDID Control rotary
Position
0
Copy EDID from CAT5e/6 Output
1
1080i, 2CH AUDIO
2
1080i, DOLBY/DTS 5 .1
3
1080i, HD AUDIO
4
1080p, 2CH AUDIO
5
1080p, DOLBY/DTS 5 .1
6
1080p, HD AUDIO
7
4Kx2K@30, 2CH AUDIO
8
4Kx2K@30, DOLBY/DTS 5 .1
9
4Kx2K@30, HD AUDIO
A
4Kx2K@60, 2CH AUDIO
B
4Kx2K@60, DOLBY/DTS 5 .1
C
4Kx2K@60, HD AUDIO
D
1280x720p@60 DVI (no audio)
E
1920x1080@30 DVI (no audio)
F
3840x2160p@30 DVI (no audio)
Control Rotary
The Control rotary enables the integrator to choose the desired setting for IR Out
(RS-232) ports, RS-232 Mode, and Hot Plug Detection control .
The Control Rotary is located on the Tx unit.
›
EDID Description
IMPORTANT! Please apply light pressure to the Control rotary when making
your selection
EDID Control Rotary
IMPORTANT! Please apply
light pressure to the Control
rotary when making your
selection
