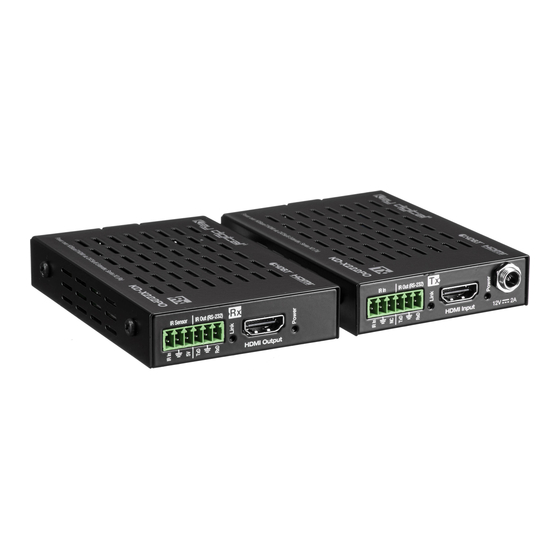

- Page 1 KD-X222PO 4K HDMI over CAT5e/6 HDBaseT Extender Tx + Rx Kit. 10.2Gbps Bandwidth. IR Emitter and Sensor Included. Operating Instructions The Experts in Digital Video Technology and Solutions ™...
-
Page 2: Table Of Contents
CAT6A cable, or up to 230 ft . using a CAT5e/6 cable . In addition to HDMI video and audio signals, KD-X222PO carries IR or RS-232 for controlling remotely located equipment or the RS-232 port can be used to control the KD-X222PO . -
Page 3: Key Features
Key Features HDBaseT via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, › equalization, and amplification depending on cabling length Power over HDBaseT: Tx unit powers Rx unit . Only one power connection needed . › Signal Extension: ›... -
Page 4: Quick Setup Guide
Quick Setup Guide Step 1: Find a safe and convenient location to mount or place your KD-X222PO units Step 2: Begin with the KD-X222PO Tx/Rx units and all input/output devices turned off with power cables removed Step 3: Connect your HDMI source to the input port of your KD-X222PO Tx unit Step 4: Connect your HDMI displays to the output port of your KD-X222PO Rx unit Step 5: Connect KD-X222PO Rx unit to KD-X222PO Tx with CAT5e/6 cable using 568-B termination . -
Page 5: Application Example
Application Example KD-X222PO HDMI Cable / Satellite IR Out KD-MC1000 RS-232 Master Controller WiFi WiFi Router KD-ProCL1 KD-ProCL4 KD-ProCL6 KD-ProCL8 Compass Control ® Pro Site Enterprise Software License for Compass Control ® KD-ProCL1 Technical Support: email: tech@keydigital.com 521 East 3rd Street... -
Page 6: Connections
Connections Before making any connections, power off your source and display devices . Tx Unit: Using a short HDMI cable, connect your source device to the HDMI port labeled “HDMI Input” . › For DVI-D/DVI-I sources, use appropriate adapters . For Display Port, use active converters . Connect the CAT5e/6 UTP or STP cable that connects to the Rx Unit at the port labeled ›... -
Page 7: Extending Ir Or Rs-232 Control
› Two different types of firmware may be updated: MCU (KD-X222PO units), and HDBaseT » (extension over CAT5e/6) RS-232 Cabling RS-232 cables are available through Key Digital and other wire suppliers, and can also be fabricated by skilled technicians . - Page 8 Key Digital RS-232 Cable Pinout Charts Model Wire DB9 Pin Signal KD-3.5FDB96 3 .5mm Stereo to Female DB9 (sold separately) White Black Ground Green KD-3 .5FDB96 with 3 .5mm TRS Connector KD-3 .5FDB96 after stripping wire Model Wire DB9 Pin Signal KD-3.5MDB96...
- Page 9 Signal acceptance: The IR Sensor receives signals from a 90° angle at up to 30 ft . away . It accepts a maximum IR burst frequency of 55kHz . Only the included IR sensors are compatible with the KD-X222PO . Third-party IR Sensors may not be compatible .
-
Page 10: Settings
Settings EDID Control EDID authentication is provided from the KD-X222/ KD-X222PO Tx unit to the connected input / source device . The EDID file (AKA “handshake”) is selected using the EDID Control rotary on the Tx unit and provides a list of compatible video and audio formats as well as digital data, informing the source device what it should output . - Page 11 Control Rotary Position Assignments: Position IR Out (RS-232) Mode Hot Plug Detection Control Serial IR Bypass Serial IR Bypass Serial IR Forced HPD On Serial IR Forced HPD On RS-232 Pass-Through Bypass RS-232 Pass-Through Bypass RS-232 Pass-Through Forced HPD On RS-232 Pass-Through Forced HPD On RS-232 Control...
-
Page 12: Led Indicator Lights
LED Indicator Lights Power: Color: Green » Solid illumination during power on state, as provided by healthy connection with power supply . » Steady blink if power is not adequate and/or if there is a connectivity problem with the KD- »... - Page 13 Line Feed: Required » Commands are not case-sensitive. Spaces shown below may be excluded. Carriage return and line feed is required at the end of each string. Status Command: KD-X222PO > STA ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- -- KD-X222PO System Address : 00 F/W Version : 1.00...
-
Page 14: Specifications
Help Command: KD-X222PO > H ------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- -- KD-X222PO System Address : 00 F/W Version : 1.00 -- Azz : All Commands may have Prefix System Address zz=[01-99] -- H : Help -- STA : Global Status... - Page 15 Warranty Information All Key Digital products are built to high manufacturing standards and should provide years of trouble- ® free operation . They are backed by a Key Digital Limited 3 Year Product Warranty Policy . http://www .keydigital .com/warranty .htm...
- Page 16 Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers . Key Digital 521 East 3rd Street Mount Vernon, NY 10553 ® Phone 914.667.9700 914.668.8666 www.keydigital.com © 2020 Key Digital, Inc . All rights reserved .
