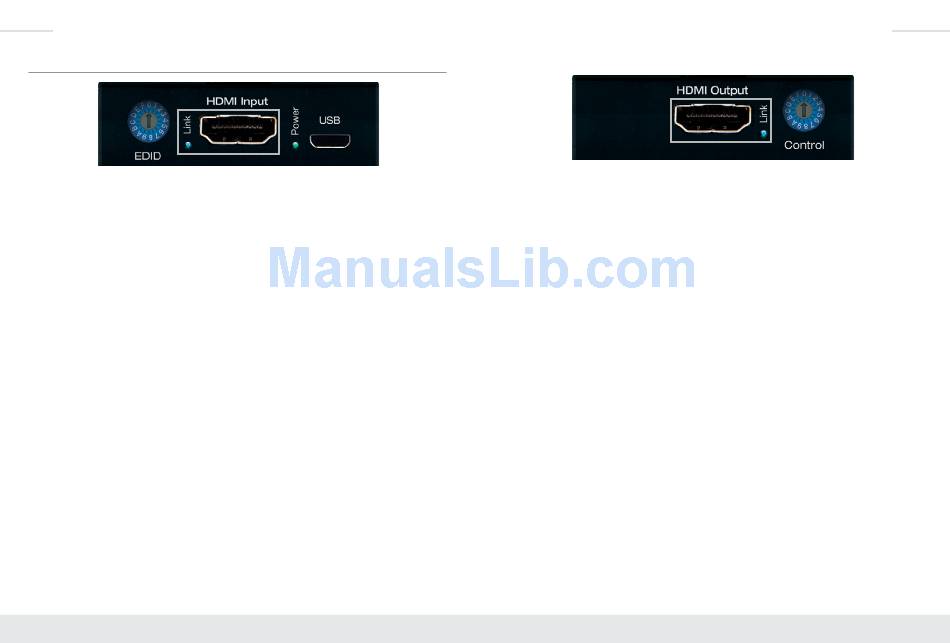

Connections and LEDs

HDMI Input:
Supports HDMI cabling up to 75 ft / 23m.
➔
Maximum one active/directional HDMI cable may be used for 18Gbps signals.
»
If HDMI input is long/active/directional, only a short/passive/non-directional
»
HDMI cable may be used on output for 18Gbps signals.
Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals
➔
See Supported standard 4K Video Formats table
»
Supports HDR10 and Dobly Vision
®
➔
Compliant with HDCP 2.2 and previous
➔
Supports lossless compressed audio formats including Dolby
➔
Dolby ® Digital Plus, Dolby Atmos ® , and DTS-HD Master Audio
Supports CEC and ARC pass thru For DVI-D/DVI-I sources, use appropriate adapters.
➔
For Display Port, use active converters.
HDMI Input Link LED:
Blue
Color:
➔
Solid illumination during active signal (TMDS) from connected source
➔
USB Power:
USB Micro connector type
➔
5V 0.5A. Power consumption <2W
➔
Power transformer not included. Supports standard third-party transformer.
➔
HDMI Output:
➔
➔
➔
➔
➔
TrueHD,
®
™
➔
HDMI Output Link LED:
➔
➔
Supports HDMI cabling up to 75 ft / 23m.
Maximum one active/directional HDMI cable may be used for 18Gbps signals.
»
If HDMI input is long/active/directional, only a short/passive/non-directional
»
HDMI cable may be used on output for 18Gbps signals.
Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals
See Supported standard 4K Video Formats table
»
Supports HDR10 and Dobly ® Vision
Compliant with HDCP 2.2 and previous
Supports lossless compressed audio formats including Dolby
Dolby Digital Plus, Dolby Atmos , and DTS-HD Master Audio
® ®
Supports CEC and ARC pass thru
Blue
Color:
Solid illumination during active Hot Plug Detection (HPD) voltage from connected
display
5
TrueHD,
®
™
