Key Digital
, led by digital video pioneer Mike Tsinberg,
®
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high-end video and control are important. Key Digital
is at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers.
Key Digital
Systems
::
521 East 3rd Street
®
Phone
:
914.667.9700
Fax
:
914.668.8666
Rev 0 – Sept 2015
®
::
Mount Vernon, NY 10553
Web
:
www.keydigital.com

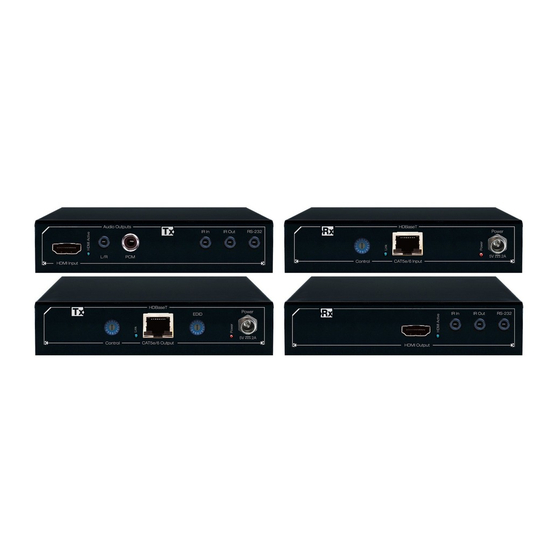

KD-X411ProK
HDBaseT/HDMI via Single CAT5e/6 (Tx+Rx Set) Extenders, with
Audio De-embedding, EDID Control, Hot Plug Control, Full Buffer System,
IR Sensor, Up/Down IR & RS-232, support Ultra HD/4K & HDCP2.2
KD-X411POHK
Power over HDBaseT/HDMI via Single CAT5e/6 (Tx+Rx Set) Extenders,
with Audio De-embedding, EDID Control, Hot Plug Control, Full Buffer
System, IR Sensor, Up/Down IR & RS-232, support Ultra HD/4K & HDCP2.2
Operating Instructions
The Experts in Digital Video Technology and Solutions
™
Advertisement
Table of Contents
Related Manuals for Key Digital KD-X411ProK
Summary of Contents for Key Digital KD-X411ProK
-

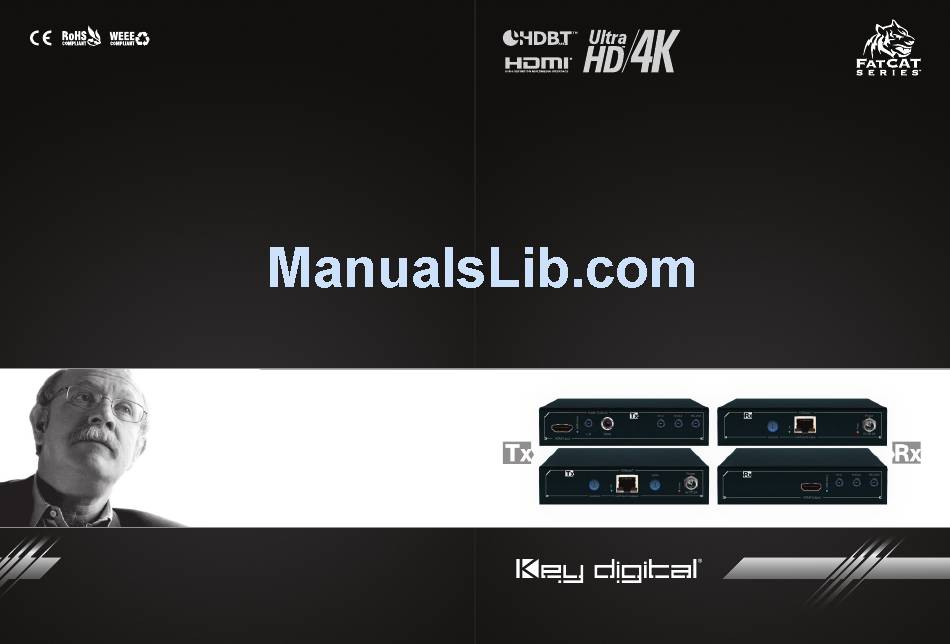

Page 1: Operating Instructions
, led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers. -
Page 2: Table Of Contents
KD-X411ProK/KD-X411POHK HDBaseT/HDMI (Tx & Rx) Extenders are an HDCP About KD-X411ProK/KD-X411POHK ........1 2.2 compliant product that extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0) -
Page 3: Quick Setup Guide
➔ KD-X411ProK/KD-X411POHK units HDCP authentication with source & display, EDID Control handshake, Step 2: Begin with the KD-X411ProK/KD-X411POHK Tx/Rx units and all and Hot Plug control input/output devices turned off with power cables removed IR Sensor: Sensor powering via +5V on Rx unit’s IR In port collects line-of-sight ➔... -
Page 4: Application Example
Application Example HDMI Satellite IR Out KD-X411ProK 4K up to 150’ with CAT5e/6 RS-232 Key Digital KD-CAT6STP1X ® EDID Control KD-MC1000 Display Master Controller RS-232 HDMI KD-X411ProK HDMI WiFi Multi-Zone Audio WiFi Router IR Out Apple TV IR Sensor iPad... -
Page 5: Connections
Connections Use the 3.5mm analog audio and/or PCM coaxial digital audio de-embed ports to ➔ integrate with audio distribution systems, amplifiers, or AV receivers. Before making any connections, power off your source and display devices. Tx Unit: Using a short HDMI cable, connect your source device to the HDMI port labeled ➔... -
Page 6: Audio De-Embedding Outputs
There are no volume or tone control features ➔ 3.5mm stereo to RS-232 adapter cables are available through Key Digital and other wire suppliers, and can also be fabricated by skilled technicians. There are no DSP features. Ie, in order to achieve 2ch analog audio output, ➔... - Page 7 Serial IR (hardwired) connection. The Rx unit’s IR In port supports an away. It accepts a maximum IR burst frequency of 55kHz. IR Sensor. Only the included IR sensors are compatible with the KD-X411ProK/KD-X411POHK. » Tx Unit / Serial IR: Third-party IR Sensors may not work with KD-X411ProK/KD-X411POHK »...
-
Page 8: Settings
IMPORTANT! Please apply light pressure to the EDID Control Control rotary when making your selection EDID authentication is provided from the KD-X411ProK/KD-X411POHK Tx unit to Control Rotary Position Assignments: the connected input / source device. The EDID file (AKA “handshake”) is selected... - Page 9 HPD may be lost leading to no signal at the display. In those cases, fix the Control rotary to any Forced HPD setting. Range and Resolution: Distance performance is significantly increased when using Key Digital KD-CAT6STP1X Super CAT6/STP Cabling. Up to 150 ft. @ 4K 24/25/30(4:4:4)/60(4:2:0) using KD-CAT6STP1X cabling ➔...
-
Page 10: Led Indicator Lights
➔ Ground Parity = None » Steady blink if power is not adequate and/or if there is a connectivity problem ➔ with the KD-X411ProK/ KD-X411POH Rx unit Flow Control = None ➔ Carriage Return: Required ➔ HDMI Active (HDMI Input/Output): Line Feed: Required ➔... -
Page 11: Specifications
➔ Enclosure: Black Metal ➔ Product (Each): 5” x 4.06” x 1.06”, Weight: 0.5 lbs ➔ KD-X411ProK Power: (2) KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, ➔ Interchangeable head with screw-in connector KD-X411POHK Power (Tx Only): KD-PS12V2ASC, 12V/2A, 100-240VAC, ➔ 50-60Hz, Interchangeable head with screw-in connector Accessories: (2) Mounting Brackets, (1) IR Emitter, (1) IR Sensor ➔... -
Page 12: How To Contact Key Digital
➔ Please be sure to follow these instructions for safe operation of your unit. Technical Support 1. Read and follow all instructions. For technical questions about using Key Digital products, please contact us at: ® 2. Heed all warnings. Phone: 914-667-9700 ➔... -
Page 13: Warranty Information
Warranty Information All Key Digital products are built to high manufacturing ® standards and should provide years of trouble-free operation. They are backed by a Key Digital Limited 10 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm...
