6

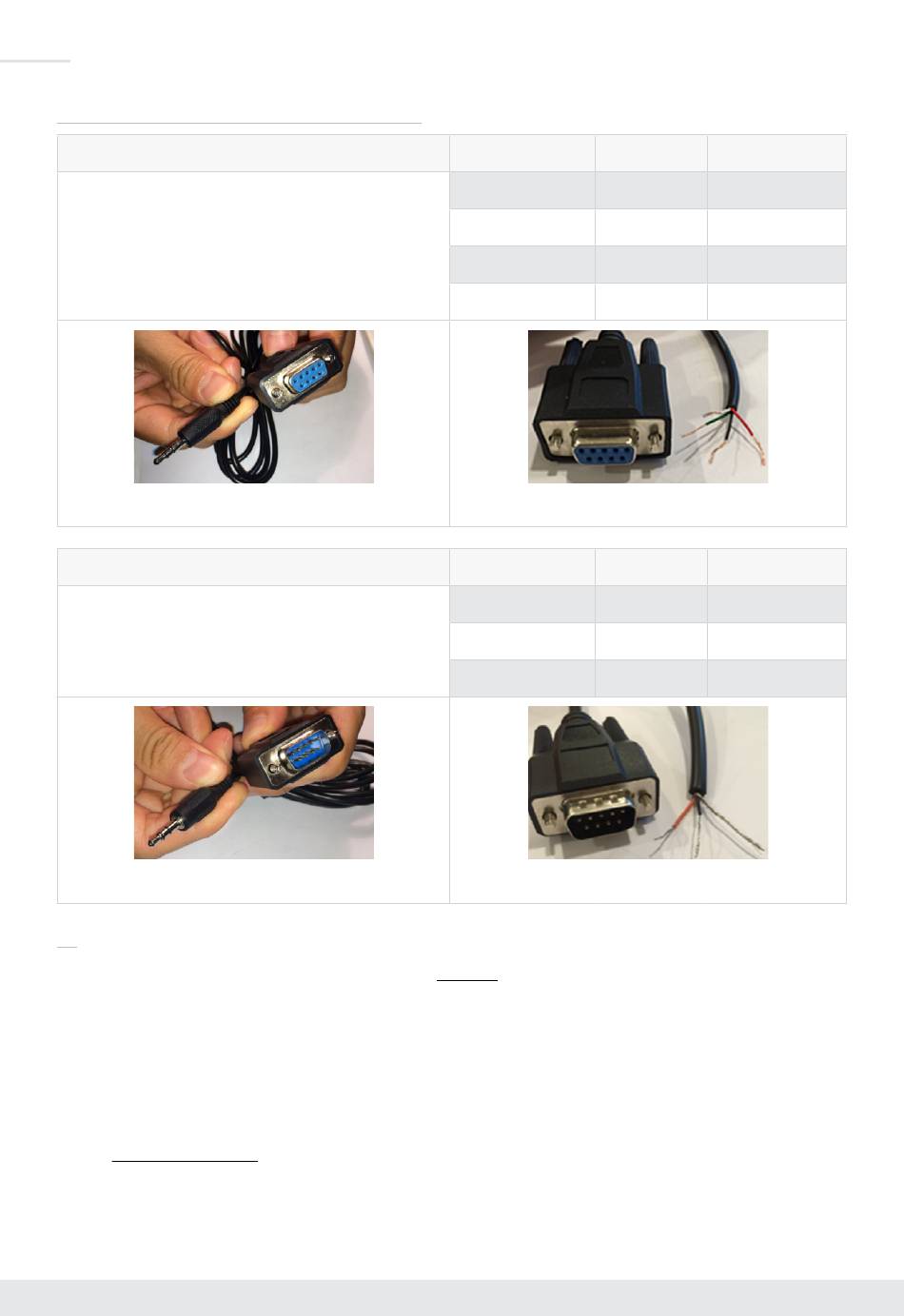

Key Digital RS-232 Cable Pinout Charts
KD-3.5FDB96
3 .5mm Stereo to Female DB9 (sold separately)
KD-3 .5FDB96 with 3 .5mm TRS Connector
KD-3.5MDB96
3 .5mm Stereo to Male DB9 (sold separately)
KD-3 .5MDB96 with 3 .5mm TRS Connector
IR
Bi-directional IR control extension is supported . IR can not be used at the same time as RS-232.
"IR In" port on the Tx unit extends to the "IR Out" port of the Rx unit
»
"IR In" port on the Rx unit extends to the "IR Out" port of the Tx unit
»
IR In:
The IR In port is different for the Tx and Rx units . The Tx unit's IR In port supports a Serial IR
(hardwired) connection . The Rx unit's IR In port supports an IR Sensor .
Tx Unit / Serial IR:
»
A fixed 5V input signal on 2 phoenix pins
»
Signal and ground are required
»
Typically fed from a dedicated control system or an IR distribution block
»
Model
Model
Wire
DB9 Pin
Red
2
White
3
Black
5
Green
N/C
KD-3 .5FDB96 after stripping wire
Wire
DB9 Pin
Red
2
Black
3
Shield
5
KD-3 .5MDB96 after stripping wire
Signal
TxD
RxD
Ground
NA
Signal
TxD
RxD
Ground
