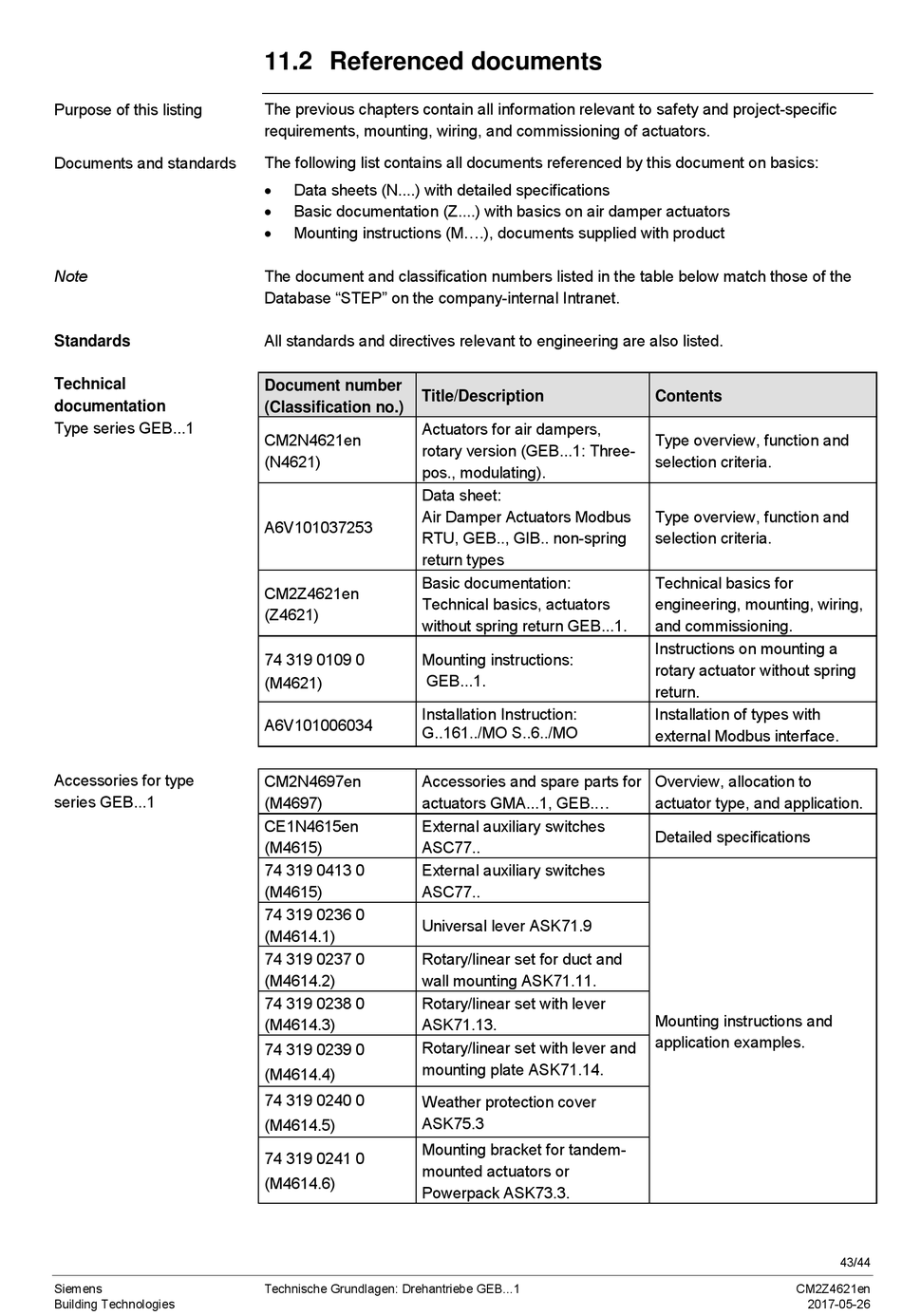

11.2 Referenced documents

The previous chapters contain all information relevant to safety and project-specific
requirements, mounting, wiring, and commissioning of actuators.
The following list contains all documents referenced by this document on basics:
Data sheets (N....) with detailed specifications
Basic documentation (Z....) with basics on air damper actuators
Mounting instructions (M....), documents supplied with product
The document and classification numbers listed in the table below match those of the
Database "STEP" on the company-internal Intranet.
All standards and directives relevant to engineering are also listed.
Document number
Title/Description
(Classification no.)
Actuators for air dampers,
CM2N4621en
rotary version (GEB...1: Three-
(N4621)
pos., modulating).
Data sheet:
Air Damper Actuators Modbus
A6V101037253
RTU, GEB.., GIB.. non-spring
return types
Basic documentation:
CM2Z4621en
Technical basics, actuators
(Z4621)
without spring return GEB...1.
74 319 0109 0
Mounting instructions:
GEB...1.
(M4621)
Installation Instruction:
A6V101006034
G..161../MO S..6../MO
CM2N4697en
Accessories and spare parts for
(M4697)
actuators GMA...1, GEB....
CE1N4615en
External auxiliary switches
(M4615)
ASC77..
74 319 0413 0
External auxiliary switches
(M4615)
ASC77..
74 319 0236 0
Universal lever ASK71.9
(M4614.1)
74 319 0237 0
Rotary/linear set for duct and
(M4614.2)
wall mounting ASK71.11.
74 319 0238 0
Rotary/linear set with lever
(M4614.3)
ASK71.13.
Rotary/linear set with lever and
74 319 0239 0
mounting plate ASK71.14.
(M4614.4)
74 319 0240 0
Weather protection cover
ASK75.3
(M4614.5)
Mounting bracket for tandem-
74 319 0241 0
mounted actuators or
(M4614.6)
Powerpack ASK73.3.
Technische Grundlagen: Drehantriebe GEB...1
Contents
Type overview, function and
selection criteria.
Type overview, function and
selection criteria.
Technical basics for
engineering, mounting, wiring,
and commissioning.
Instructions on mounting a
rotary actuator without spring
return.
Installation of types with
external Modbus interface.
Overview, allocation to
actuator type, and application.
Detailed specifications
Mounting instructions and
application examples.
CM2Z4621en
