Remarks
Use
CM2N4621en
2016-01-29
TM
OpenAir

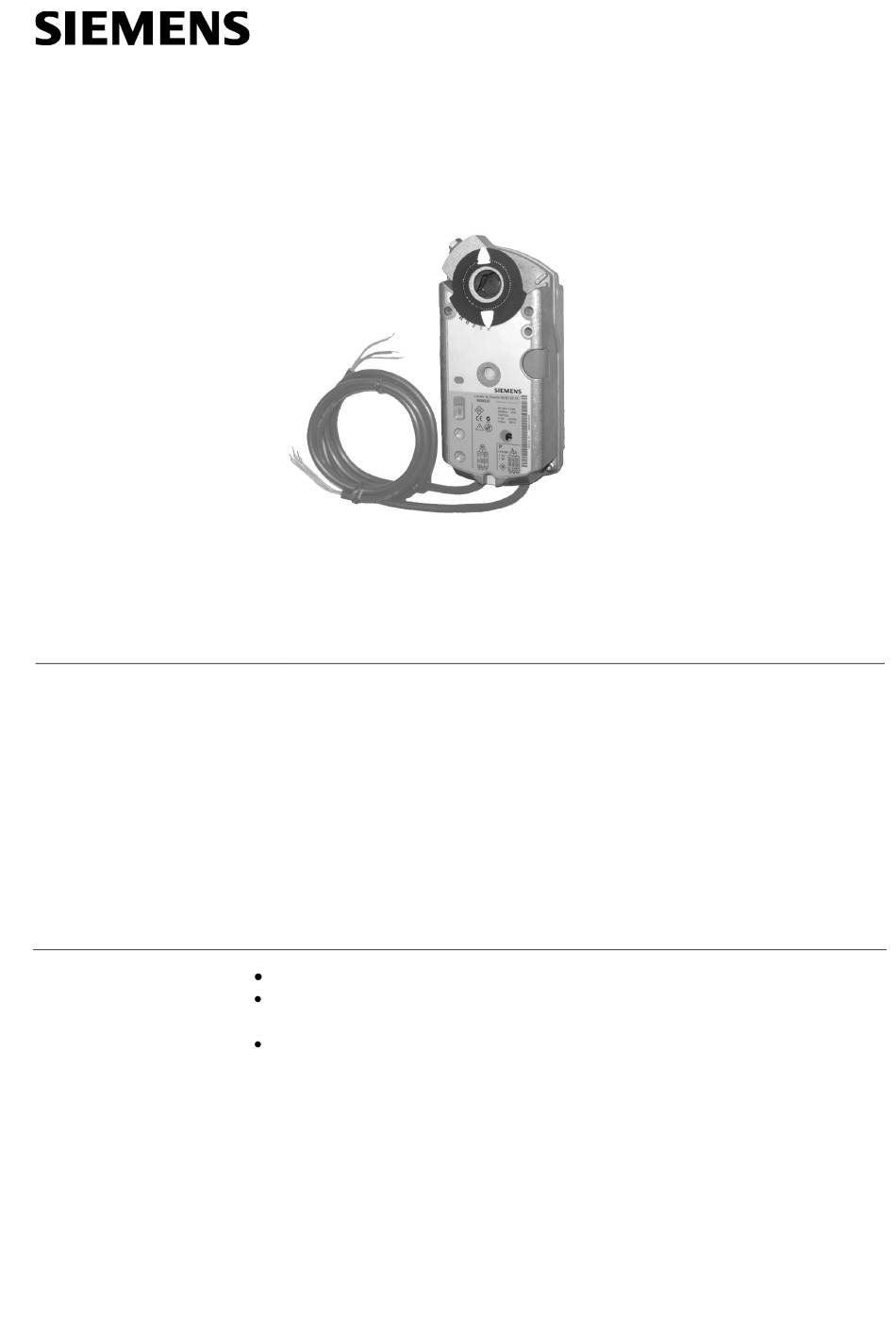

Air damper actuators
Rotary version, AC 24 V / AC 230 V
Electronic motor driven actuators for three-position and modulating control,
nominal torque 15 Nm, self-centering shaft adapter, mechanically adjustable
span between 0...90°, prewired with 0.9 m long connection cables.
Type-specific variations with adjustable offset and span for the positioning
signal, position indicator, feedback potentiometer, self-adaptation of the rotary
angle range, and adjustable auxiliary switches for supplementary functions.
This data sheet provides a brief overview of these actuators. Please refer to the
technical basics in Z4621en for a detailed description as well as information on safety,
engineering notes, mounting and commissioning.
For damper areas up to 3 m
Suitable for modulating controllers (DC 0...10 V) or three-position controllers (e.g. for
outside air dampers).
For dampers having two actuators on the same damper shaft (tandem-mounted
actuators or Powerpack).
2
, friction-dependent.
4
GEB...1
Building Technologies
621
Advertisement
Related Manuals for Siemens OpenAir GEB 1 Series
Summary of Contents for Siemens OpenAir GEB 1 Series
- Page 1 OpenAir GEB...1 Air damper actuators Rotary version, AC 24 V / AC 230 V Electronic motor driven actuators for three-position and modulating control, nominal torque 15 Nm, self-centering shaft adapter, mechanically adjustable span between 0...90°, prewired with 0.9 m long connection cables. Type-specific variations with adjustable offset and span for the positioning signal, position indicator, feedback potentiometer, self-adaptation of the rotary angle range, and adjustable auxiliary switches for supplementary functions.
-
Page 2: Type Summary
Potentiometer and cannot be added in the field. For this reason, order the type that includes the required options. Delivery Individual parts such as position indicator and other mounting materials for the actuator are not mounted on delivery. Siemens Air damper actuators GEB...1, rotary version CM2N4621en Building Technologies 2016-01-29... -
Page 3: Accessories/Spare Parts
Without packaging: GEB1...1 1 kg GEB33..1 1.1 kg The documents can be downloaded from http://siemens.com/bt/download The product environmental declaration contains data on environmentally compatible product design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal). Siemens Air damper actuators GEB...1, rotary version... - Page 4 Switch B Normally closed contact black/pink BK PK Switch B Normally open contact Positioner white/red WH RD Potentiometer 0...100 % (P1-P2) white/blue WH BU Potentiometer pick-off white/pink WH PK Potentiometer 100...0 % (P3-P2) Siemens Air damper actuators GEB...1, rotary version CM2N4621en Building Technologies 2016-01-29...
- Page 5 Dimensions 10.6 Dia.5 GEB...1 Dia. 6.4...20.5 Square 6.4...13 Taptite M6 x 16 Mounting bracket Dimensions in mm Siemens Air damper actuators GEB...1, rotary version CM2N4621en Building Technologies 2016-01-29...
- Page 6 Building Technologies Division International Headquarters Gubelstrasse 22 6301 Zug Switzerland Tel. +41 41-724 24 24 © Siemens Switzerland Ltd, 2005 Technical specifications and availability subject to change without notice. www.siemens.com/buildingtechnologies Siemens Air damper actuators GEB...1, rotary version CM2N4621en Building Technologies...
