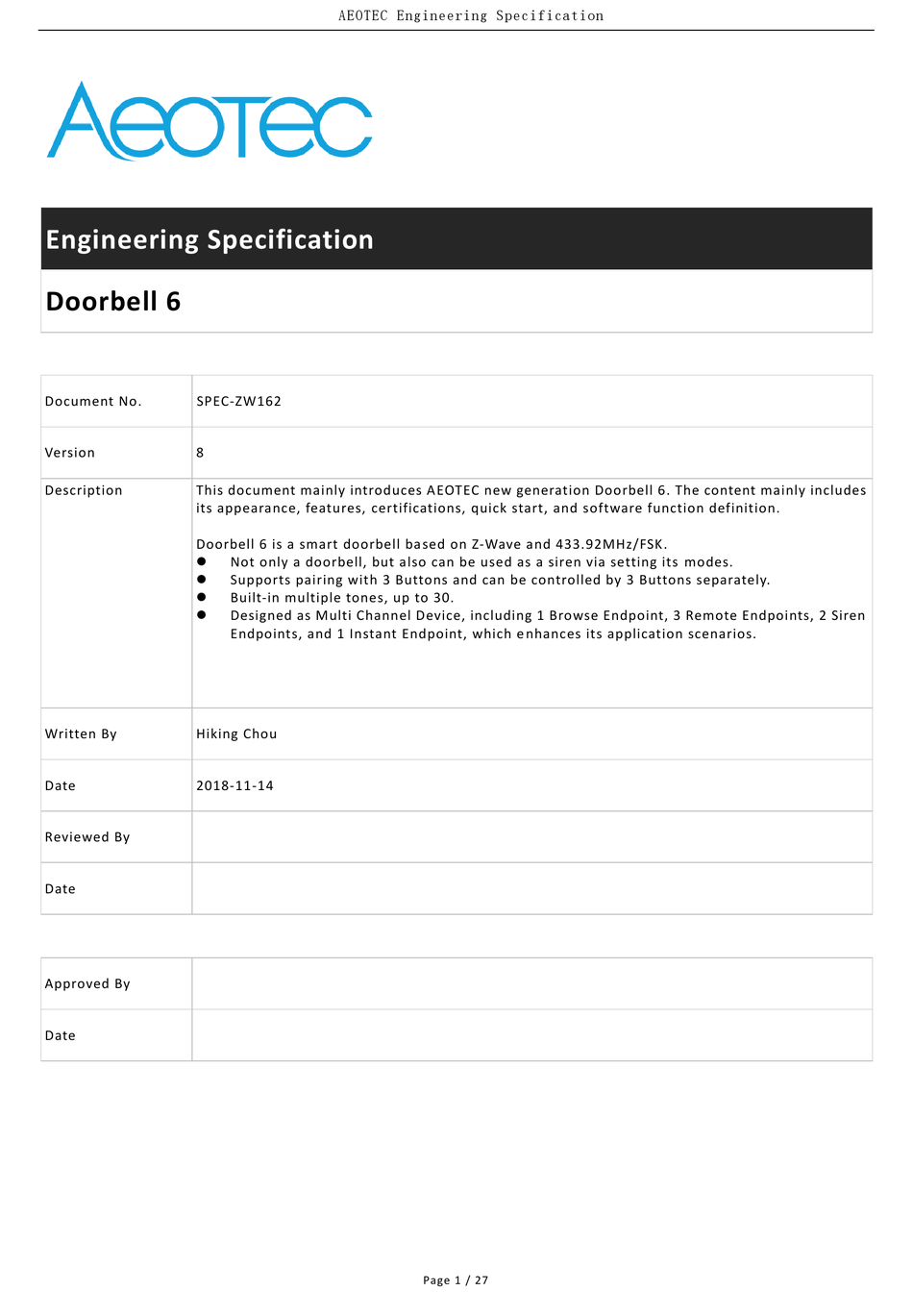

Engineering Specification

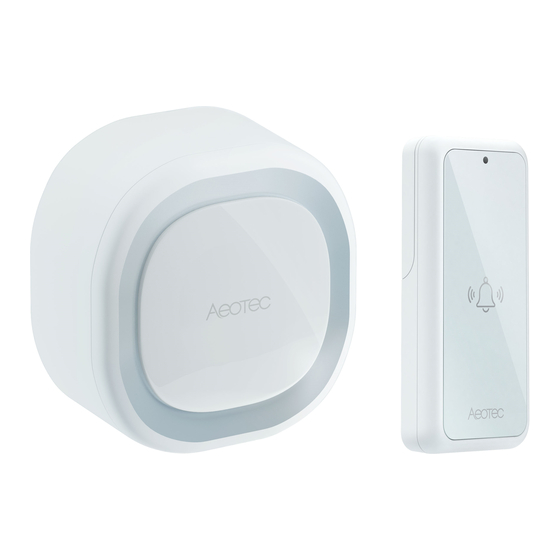

Doorbell 6
Document No.
SPEC-ZW162
Version
8
Description
This document mainly introduces AEOTEC new generation Doorbell 6. The content mainly includes
its appearance, features, certifications, quick start, and software function definition.
Doorbell 6 is a smart doorbell ba sed on Z-Wave and 433.92MHz/FSK.
Written By
Hiking Chou
Date
2018-11-14
Reviewed By
Date
Approved By
Date
AEOTEC Engineering Specification
Not only a doorbell, but also can be used as a siren via setting its modes.
Supports pairing with 3 Buttons and can be controlled by 3 Buttons separately.
Built-in multiple tones, up to 30.
Designed as Multi Channel Device, including 1 Browse Endpoint, 3 Remote Endpoints, 2 Siren
Endpoints, and 1 Instant Endpoint, which e nhances its application scenarios.
Page 1 / 27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aeotec 6

  • Page 1 Document No. SPEC-ZW162 Version Description This document mainly introduces AEOTEC new generation Doorbell 6. The content mainly includes its appearance, features, certifications, quick start, and software function definition. Doorbell 6 is a smart doorbell ba sed on Z-Wave and 433.92MHz/FSK. ...
  • Page 2 Chapter 1: Add the definition of “Ring Button”  Chapter 2: Update the picture  Chapter 3: Add “Indicator Light Power”, ”Tone Group Customization”  Add new Chapter 6 SAFETY CERTIFICATION  2018.11.08 Hiking Modify Directory Outline  Merge features and safety certification into the same Chapter ...
  • Page 3: Table Of Contents

    AEOTEC Engineering Specification Table of Content INTERFACES & ACCESSORIES ........................5 FEATURES & CERTIFICATIONS ........................6 Features ................................6 Safety certifications ............................7 PRODUCT QUICK START ..........................8 Important safety information .......................... 8 How to add Chime into Z-Wave network ......................8 How to remove Chime from Z-Wave network ....................
  • Page 4 AEOTEC Engineering Specification DOORBELL 6 Page 4 / 27...
  • Page 5: Interfaces & Accessories

    AEOTEC Engineering Specification INTERFACES & ACCESSORIES Terminology Description Chime A component based on Z-Wave and 433.92MHz/FSK technology, and it can be used to play tone when triggered by Z-Wave Command or paired Button.  Please refer to Section 4.1 for details.
  • Page 6: Features & Certifications

    Max: 30; Default: 30. No interface to replace the built-in tones. If want to change these built-in tones, you need to contact us to customize. Volume Max: 105dB from 10cm away; 7 adjustable levels Tone Group Include 1 Browse Group, 3 Remote Group, 2 Siren Group, and 1 Instant Group. Page 6 / 27...
  • Page 7: Safety Certifications

    AEOTEC Engineering Specification Tone Group Customization Can custom different Tone Group Parameters with Configuration Set, including Tone Index, Play Control, Play Mode, Volume, Light Effect Index, Interval Between 2 tones, Continuous Play Count, Intercept The Length Of A Tone. Tone Name can ’t be customized by user.
  • Page 8: Product Quick Start

    Please read this Engineering Specification carefully for correct and effective use. Failure to follow the recommendations set forth by AEOTEC Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held responsible for any loss or damage resulting from not following any instruction in this guide or in other materials.
  • Page 9: How To Remove Chime From Z-Wave Network

    Contact us for further support if needed. 6. If Inclusion succeeds, it will quickly flash White light 3 times and then become off. Now, Chime is a part of your Z- Wave home control system. You can configure it and its automations via your Z-Wave system; please refer to your software's user guide for precise instructions.
  • Page 10: How To Install Button

    AEOTEC Engineering Specification How to install Button Avoid exposing Button to direct sunlight where possible to avoid UV damage and reduced battery performance. 1. Select an installation location for Button. Do not yet install it. 2. Power on Button. a. Remove the 2 screws from Button's rear to open its battery cover and install the provided CR2450 battery with the positive (+) on top.
  • Page 11: How To Pair Button

    AEOTEC Engineering Specification How to pair Button There are two way to trigger pairing Button:  Manually quick click Chime Action Button.  With Configuration Set. Please refer to Configuration Parameter=0x24 for details. Below is mainly about manually quick click Chime Action Button to trigger pairing Button.
  • Page 12: How To Unpair Button

    AEOTEC Engineering Specification Note:  ONLY one Button can be paired at a time.  This manually quick click Action Button operation can ONLY be used to trigger pairing, not unpairing. How to unpair Button There is ONLY one way to trigger unpairing Button: ...
  • Page 13: Software Function Definition

    AEOTEC Engineering Specification SOFTWARE FUNCTION DEFINITION Function Overview Function Item Description Inclusion When the product is out of the network:  If a controller is requesting to add a product and the product enters the Learning Mode with sending Node Info, the product will be added to the controller's network with a NodeID assigned by the controller.
  • Page 14 AEOTEC Engineering Specification When powered by battery, it will be breathing White light for 30 seconds (max). White light for 2 seconds and Power ON Supply Power Supply Power When powered by adapter, it then become off. will be breathing White light all the time.
  • Page 15: Supplementary Explanation About Button

    If Exclusion succeeds, it will quickly flash White light 3 Click Action Button Send Node Info Reserved Reserved times then become 6 times quickly for Exclusion breathing White light. Exclusion fairs, it will become off. Long Press Action Reserved Keep off from press to release.
  • Page 16: Tone Group Priority Definition

    AEOTEC Engineering Specification (ON 100ms OFF 100ms ON 100ms OFF 5s) If #3 Button is low battery, Chime Indicator Light will repeat cycle (ON 100ms OFF 100ms ON 100ms OFF 100ms ON 100ms OFF 5s)  Low Battery Indicator Light will be activated when Chime detects the corresponding paired Button is low battery, and disappears after the battery returns to normal.
  • Page 17: Basic Command Class Mapping

    AEOTEC Engineering Specification DEVICE_RESET_LOCALLY Support Support Support TRANSPORT_SERVICE Support Support Support SECURITY Support Support Support SECURITY_2 Support Support Support SUPERVISION Support Support Support FIRMWARE_UPDATE_MD Support Support Support NOTIFICATION Support Support Support SOUND_SWITCH Support Support Support Basic Command Class mapping Basic Set Command (value) maps to Sound Switch Tone Play Set Command (Tone Identifier).
  • Page 18: Sound Switch

    AEOTEC Engineering Specification Dynamic Identical Generic Device Class GENERIC_TYPE_AV_CONTROL_POINT Specific Device Class SPECIFIC_TYPE_SOUND_SWITCH Command Classes COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_SECURITY COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SUPERVISION COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION COMMAND_CLASS_NOTIFICATION COMMAND_CLASS_SOUND_SWITCH Sound Switch 4.12 (1)Sound Switch Tones Number Report Command Supported Tones = 10 (example) (2)Sound Switch Tone Info Report Command (example)
  • Page 19: Association Groups Information

    (Remote 3) On/Off control Notification: Siren Mirror of endpoint 5, group 2 (Siren 1) On/Off control Notification: Siren Mirror of endpoint 6, group 2 (Siren 2) On/Off control Notification: Siren Mirror of endpoint 7, group 2 (Instant) Endpoint 1 Name...
  • Page 20 AEOTEC Engineering Specification Name Node count Profile Function  Send Sound Switch Tone Play Report when Chime #1 Remote Group is triggered to paly tone.  Send Sound Switch Configuration Report when the volume or default tone of #1 Remote Group is changed.
  • Page 21 AEOTEC Engineering Specification Name Node count Profile Function  Send Sound Switch Tone Play Report when Chime #1 Siren Group is triggered to paly tone.  Send Sound Switch Configuration Report when the volume or default tone of #1 Siren Group is...
  • Page 22: Configuration

    AEOTEC Engineering Specification Configuration 4.15 Param. Description Default Size 0x02 Set or Get Browse Group 0x34070000 Tone Index Play Control Reserved Volume Reserved Light Effect Index Play Mode Tone Index (Max=Supported Tones) Value Description Reserved 1..Max Set the default tone...
  • Page 23 AEOTEC Engineering Specification Tone Index (Max=Supported Tones) Value Description Reserved 1..Max Set the default tone Other Reserved Use last valid configuration Control Value Description Set but not play Play Stop 3..6 Reserved Use last valid configuration Volume Value Description Mute 1..7...
  • Page 24 AEOTEC Engineering Specification 0x05 Set or Get #3 Remote Group 0x29070914 Tone Index Play Control Interval Between 2 Tones Volume Continuous Play Count Light Effect Index Intercept The Length Of A Tone Note: The valid values can be referenced to the definition of parameter 0x03.
  • Page 25 0x00000A00 (15) Note: The valid values can be referenced to the definition of parameter 0x0A . 0x10 Set or Get Light Effect Index 6 0x42000001 (16) Note: The valid values can be referenced to the definition of parameter 0x0A .
  • Page 26 AEOTEC Engineering Specification 0x24 Pair or Unpair Button (36) Pairing Control Button Number Bit Mask Set: Button Number Bit Mask(4 bits) Description Bit 0 #1 Button Bit 1 #2 Button Bit 2 #3 Button Bit 3 Reserved If want to pair or unpair the specified Button, the sending node MUST set the corresponding bit of Button to 1.
  • Page 27 AEOTEC Engineering Specification Note: This parameter does not restore the default value when remove from the network or reset the factory settings. 0xFF Reset to factory default setting OR remove from the Z-Wave network (SET ONLY) (255) If Size=4, Default=1, Value=0x55555555, then Reset to factory default setting ( except 0x21/0x22/0x23/0x24) and remove from the Z-Wave network.
