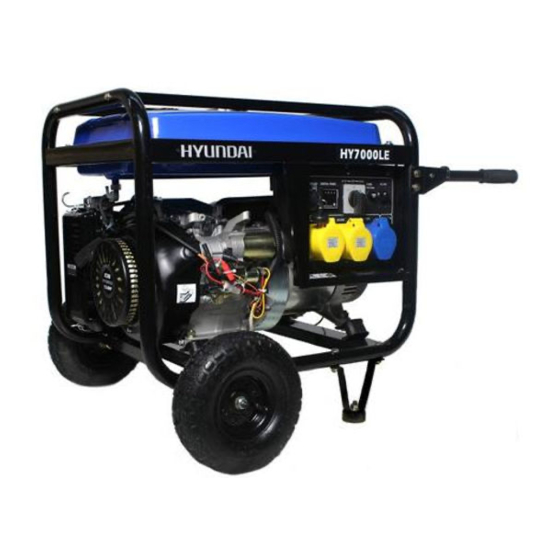

PETROL GENERATOR
Models HY3100LE/HY7000LEk/HY9000LEk
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY3100LE and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HY3100LE

Summary of Contents for Hyundai HY3100LE

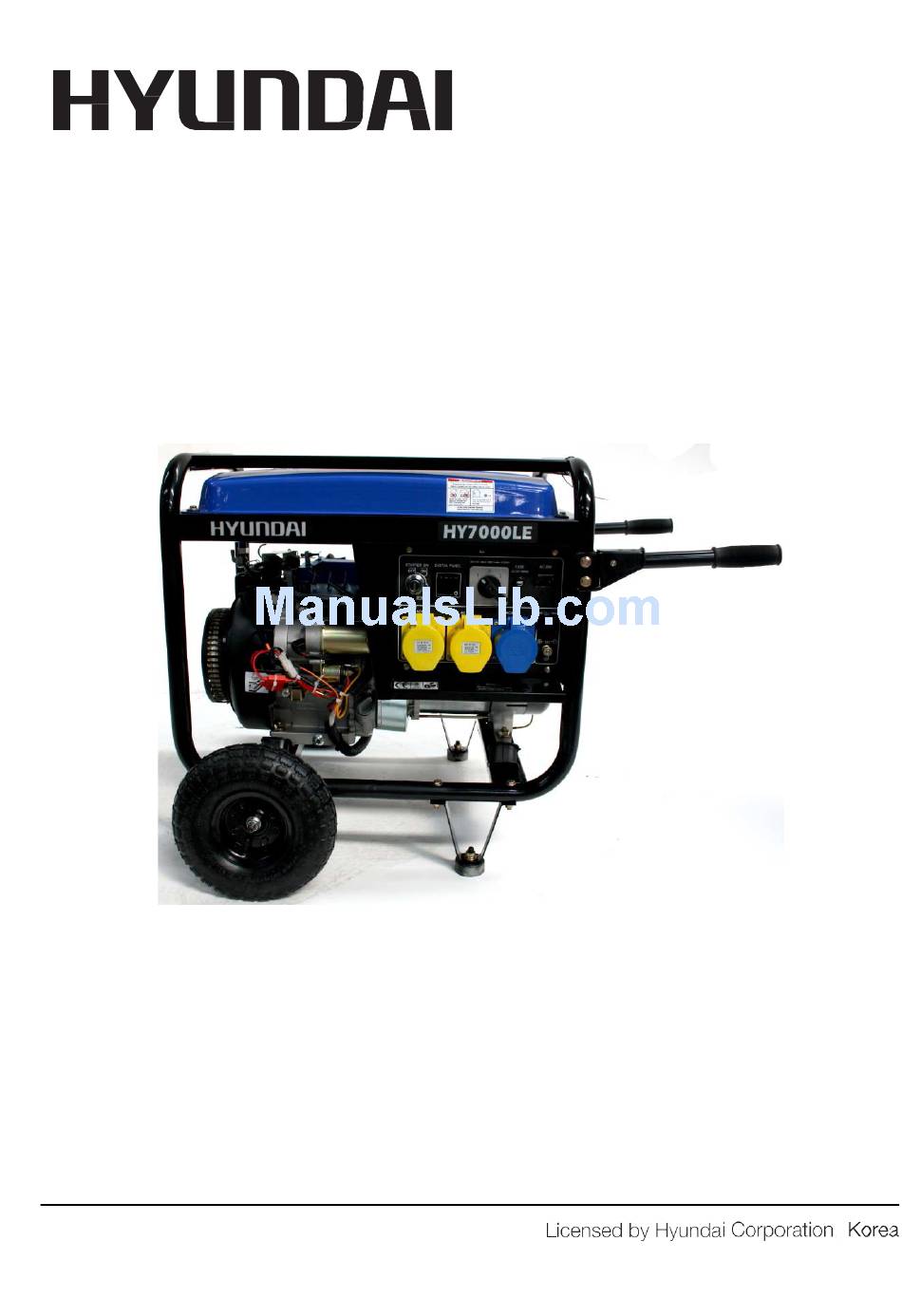

  • Page 1 PETROL GENERATOR Models HY3100LE/HY7000LEk/HY9000LEk User Manual...

  • Page 2: Table Of Contents

    CONTENTS Section Description Page N o’s 1. SAFETY 3 – 6 2. MACHINE LAYOUT 7 – 8 3. PRE-OPERATION CHECKS 9 – 10 4. STARTING THE ENGINE – RECOIL 5. STARTING THE ENGINE USING IGNTION KEY 6. USING THE MACHINE 11 –...

  • Page 3: Safety

    1. SAFETY. 1.1. The operator of the machine is; 1.1.1. Responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never be left it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 4 1.3.2.1. Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness. 1.3.2.2. Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and simply tiredness. That’s why it’s quite common for people to mistake this very dangerous poisoning for something else. 1.3.3.
  • Page 5 1.4.8.4. Protective clothing. 1.4.8.5. Respiratory protective equipment should be used when in an unventilated area. 1.4.8.6. When defueling always use a propriety fuel retriever. 1.4.8.7. Always carry fuel in the correct and clearly marked container. 1.4.9. Petrol safety. 1.4.9.1. Always fuel and defuel in well-ventilated area. 1.4.9.2.

  • Page 6: Safety

    1.4.10.6.1.3. Use fresh running water to wash excess acid, continue this until medical assistance arrives. 1.4.10.6.1.4. Eye contact with acid needs to be washed away. Make sure that you do not wash the acid to another part of the face or body. 1.4.10.6.1.5.

  • Page 7: Machine Layout

    2. MACHINE LAYOUT Fuel Gauge Fuel Filler Cap (Unleaded Petrol) Page 7 Rev 3...
  • Page 8 Page 8 Rev 3...

  • Page 9: Pre-Operation Checks

    3.1.2. If fuel level is low – refill with fresh unleaded petrol. 3.1.3. Make sure you use the fuel filter screen on the fuel filler neck. 3.1.4. Fuel tank capacities; Model/s Full HY3100LE 12 Litres HY7000LEK/HY9000LEk 22 Litres 3.1.5. DO NOT refill tank while engine is running or HOT.

  • Page 10: Starting The Engine - Recoil

    Model/s Full HY3100LE 0.6 Litres HY7000LEk/HY9000LEk 1.1 Litres 3.3. Earthing (Ground). 3.3.1. Always earth the generator. 4. STARTING THE ENGINE - RECOIL NOTE before starting the engine; • Turn ‘OFF’ the AC switch. • DO NOT connect any electrical appliances to the machine.

  • Page 11: Starting The Engine Using Igntion Key

    5. STARTING THE ENGINE USING IGNITION KEY NOTE before starting the engine; • Turn ‘OFF’ the AC switch. • DO NOT connect any electrical appliances to the machine. 5.1. Turn the fuel tap to ‘ON’ position. 5.2. Turn the engine switch to ‘ON’ 5.3.
  • Page 12 6.1.1. Select required output voltage. 6.1.2. Check the output on the Digital Voltmeter is reading the correct voltage. 6.1.2.1. Display will read output voltage depending on the selection either 115 VAC or 230 VAC 6.1.3. The Digital panel only becomes active when the Main MCB is in the ‘ON’...

  • Page 13: Stopping The Engine

    7. STOPPING THE ENGINE 7.1. Turn ‘OFF’ and unplug all appliances attached to the machine. 7.2. Turn the AC switch ‘OFF’. 7.3. Turn the engine switch to the ‘OFF’ position. 7.4. Turn OFF the fuel tap. 8. BATTERY 8.1. The battery is a 12 volt 14Ah sealed lead acid battery and requires no maintenance other than;...

  • Page 14: Periodic Maintenance

    9. PERIODIC MAINTENANCE 9.1. Maintenance chart. Initial Pre- Every 3 Every 6 Every 10 and 1 Months Months Months Item Remark Month check or 50 or 100 or 300 or 20 Daily Hours Hours Hours Hours Check condition, Spark Plug adjust gap and clean ●...
  • Page 15 9.2. Engine Oil replacement After engine has been run prior to changing the oil will be very hot. Wear correct PPE minimum of gloves and overalls. DO NOT allow any dust, dirt or any other debris enter oil or crankcase. 9.2.1.
  • Page 16 9.4. Spark Plug 9.4.1. Use - spark plug – BPR5ES or BPR6ES. 9.4.2. The spark plug electrode should be a Tan colour. 9.4.3. Spark plug gap should be 0.7mm to 0.8mm (0.028” to 0.031”). On completion of this operation you MUST make sure that the fuel tap (Cock) cup is tightened securely.
  • Page 17 9.5. Fuel Tap (Cock) 9.5.1. Stop the engine. 9.5.2. Empty fuel tank and make sure fuel tap is higher than the fuel inside the tank 9.5.3. Turn the fuel tap (cock) lever to “OFF”. 9.5.4. Clean with solvent. 9.5.5. Wipe off. 9.5.6.
  • Page 18 9.8. Carburettor maintenance 9.8.1. Turn fuel tap to OFF position. 9.8.2. Remove the Fuel Shut-Off solenoid by undoing the two retaining screws. 9.8.3. Remove the float bowl retaining bolt. 9.8.4. Remove bowl and make sure seal is in good condition, replace as required. 9.8.5.

  • Page 19: Troubleshooting

    10. TROUBLESHOOTING. 10.1. Engine Troubleshooting - N.B. all corrective actions should be carried out by suitably qualified person/s. Corrective Condition Possible cause/s action/s Tighten plug Loose spark Plug properly Tighten Insufficient Loose cylinder head bolt bolts compression properly Replace Damaged gasket gasket Pull recoil Insufficient pulling speed...

  • Page 20: Storage

    Condition Possible cause/s Corrective action/s Circuit breaker tripped Reset breaker Poor connections or broken Indicator light ON, no AC output wire/s Check and repair. Broken output socket Faulty circuit breaker Indicator light OFF, no AC output Generator problem Contact dealer Circuit breaker tripped Reset breaker Poor connections or faulty DC...

  • Page 21: Specicifations

    12. SPECIFICATIONS Model HY3100L(E) HY7000L(E) HY9000L(E) Type AVR Automatic Voltage Regulation AC Voltage 50/60 Hz 220V, 230V and 240V 50Hz 3.8Kva 6.9Kva 8.3Kva Max Output 60Hz 4.2Kva 7.6Kva 9.1Kva 50Hz 3.1Kva 6.3Kva 7.3Kva Rated Output 60Hz 3.4Kva 6.9Kva 8.0Kva Voltage Regulator A.V.R.

  • Page 22: Wiring Diagram

    13. WIRING DIAGRAMS 13.1. (N.B. Subject to change without prior notice) Page 22 Rev 3...

  • Page 23: Contact Details

    14. GENPOWER CONTACT DETAILS Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Telephone contact number; Office ; +44 (0) 1646 687880 Email contact; service@genpower.co.uk Web site; www.hyundaipowerequipment.co.uk Page 23 Rev 3...

  • Page 24: Declarations Of Conformity

    15. DECLARATIONS OF CONFORMITY 15.1. Genpower Ltd confirms that these Hyundai products conform to the following CE Directives; 15.1.1. 2006/42/EC Machinery Directive 15.1.2. 2004/108/EC EMC Directive 15.1.3. 2000/14/EC Noise Emissions Directive 15.1.4. 97/68/EC NRMM Emissions Directive 15.1.5. 2006/95/EC Low Voltage Directive...
  • Page 25 Page 25 Rev 3...
  • Page 26 Page 26 Rev 3...
  • Page 27 Page 27 Rev 3...
  • Page 28 Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerequipment.co.uk...
