SDK for MiiNePort E1/E2
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Version 1.0, December 2019
Technical Support Contact Information
www.moxa.com/support
2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000012021
*1802000012021*
Advertisement
Related Manuals for Moxa Technologies MiiNePort E1
Summary of Contents for Moxa Technologies MiiNePort E1

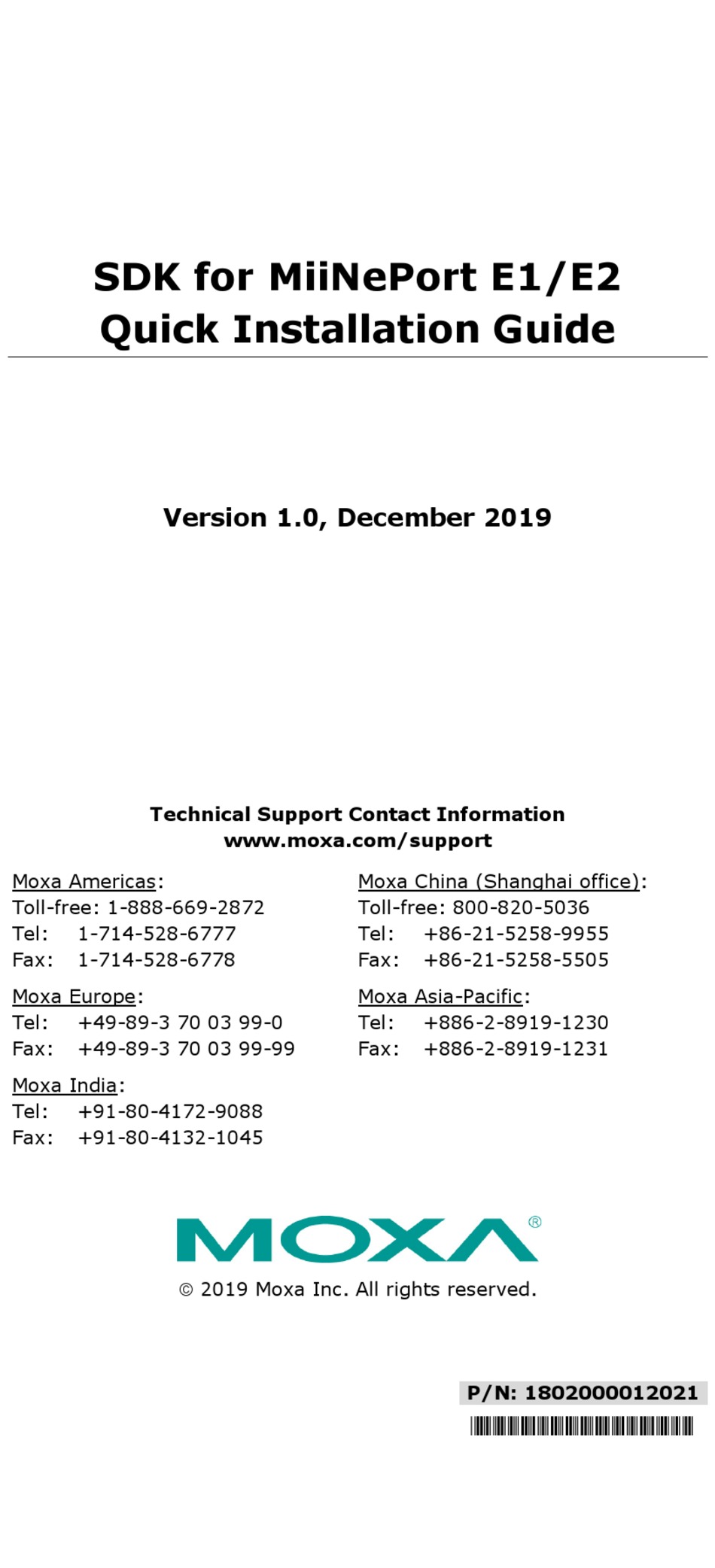

- Page 1 SDK for MiiNePort E1/E2 Quick Installation Guide Version 1.0, December 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
-
Page 2: Package Checklist
E2 is a powerful and versatile software suite for the development of proprietary firmware on the MiiNePort E1 and MiiNePort E2. To expedite time to market, the SDK for the MiiNePort E1 and MiiNePort E2 provides comprehensive tools for development, testing, and mass production. -
Page 3: Evaluation Board Layout

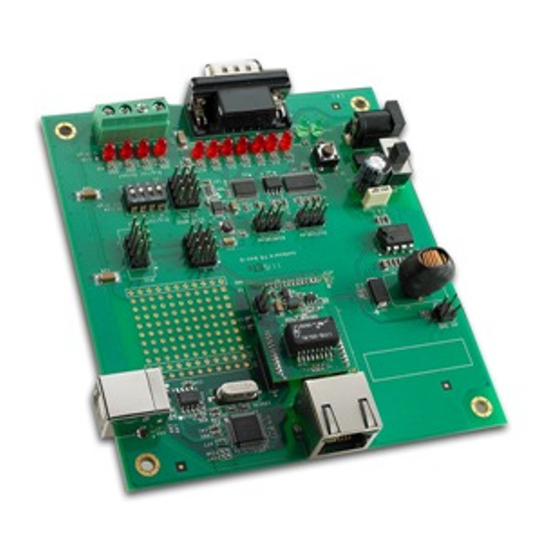

STEP 4: Use the USB cable to connect the evaluation board to the PC. Software Utility Installation Procedure Use the following procedure to install the SDK for the MiiNePort E1 or MiiNePort E2 (MiiNePort-IDE): Software Installation For software installation, download the relevant utilities from Moxa's website: https://www.moxa.com/en/support... - Page 4 E2-SDK Version Number Description MiiNePort E2 Module Location Ethernet RJ45 Connector Serial Interface Jumper Power Switch Power Jack Power & Ready LED DB9 Male Connector Serial Port Status LED Digital IO Terminal Block Digital Output LED Digital Input/Output Mode Digital Input Switch Circuit Pad USB Type B Connector (Debug) - 4 -...
- Page 5 Module Pin Assignment Bottom of the MiiNePort E2 Module Signal Name Function Ethernet Tx+ Ethernet Transmit Data+ Ethernet Tx- Ethernet Transmit Data- Ethernet Rx+ Ethernet Receive Data+ Ethernet Rx- Ethernet Receive Data- Signal Name Function 100M LED Ethernet 100M LED 10M LED Ethernet 10M LED LRXD...
-
Page 6: Reference Material
Evaluation Board Serial Port DB9 Male RS-232 RS-485-2W – – – – – – – Reference Material A detailed user’s guides can be downloaded from Moxa’s product page under the MiiNePort Series’ product page. Certification This product complies with Chinese RoHS (Restriction of Hazardous Substances) regulations for Electronic Information Products.
