fantastic furniture HAVANA Manual

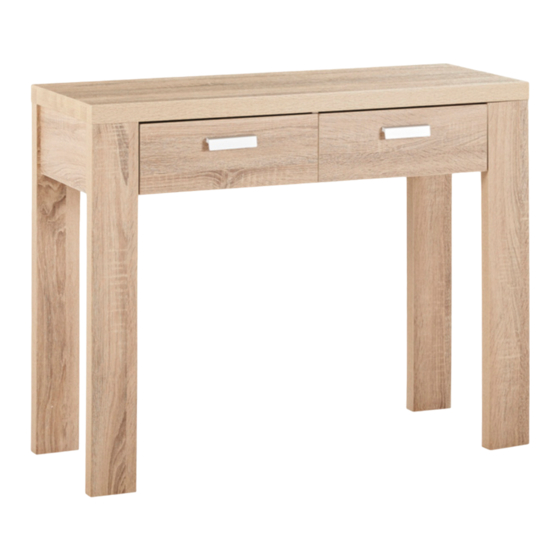

Hall table 2 drawer
Hide thumbs Also See for HAVANA:

Advertisement

Quick Links

Download this manual
Version 1.0
HAVANA
Hall Table 2 Drawer
www.fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture HAVANA

Summary of Contents for fantastic furniture HAVANA

  • Page 1 Version 1.0 HAVANA Hall Table 2 Drawer www.fantasticfurniture.com.au...
  • Page 2 Enjoy Your purchase from Australia’s Best Value Furniture Store www.fantasticfurniture.com.au PAGE 2...

  • Page 3: Assembly Checklist

    Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled.

  • Page 4: What You Need

    What you need to assemble the product RR Leg Top Panel (P10) Side (P1) Panel (P2) DO NOT USE Additional Tools Required Divider Rail Flat head screwdriver; (P5) (P3) Back Panel Phillips head screwdriver; (P11) Hammer Rail (P4) Rail (P6) (P9) Side Parts list...
  • Page 5 Step 1 You will need 8 x Cam Bolts Phillips head H3 H3 (H3) screwdriver (P10) (P8) (P9) (P7) Insert 8 x Cam Bolts (H3) into the hole of Legs (P7, P8, P9, P10) as shown. Step 2 This is how a cam nut works ..(P4) The head of the cam bolt goes into the open...
  • Page 6 Step 3 (P9) You will need 3 x Small 2 x Cam Nuts Dowels (H2) (H4) (P2) Flat head (P4) screwdriver Insert 3 x Small Dowels (H2) into the hole of Rail (P4) and Side Panel (P2). Insert 2 x Cam Nuts (H4) into the holes of Rail (P4) and Side Panel (P2). Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 7 Step 5 (P8) You will need 3 x Small 2 x Cam Nuts Dowels (H2) (H4) (P2) (P5) Flat head screwdriver (P10) Insert 3 x Small Dowels (H2) into the hole of Rail (P5) and Side Panel (P2). Insert 2 x Cam Nuts (H4) into the holes of Rail (P5) and Side Panel (P2). Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 8 Step 7 You will need 6 x Cam Bolts Phillips head (H3) screwdriver (P8) (P10) (P9) (P7) Insert 6 x Cam Bolts (H3) into the holes of Legs (P9, P10) and Rails (P4, P5) as shown. Step 8 PVC edge You will need 1 x CR Runner 3 x Small...
  • Page 9 Step 10 You will need (P11) 2 x Wooden Phillips head Screws (H15) screwdriver (P3) Attach Divider (P3) to Back Panel (P11) with 2 x Wooden Screws (H15) using a Phillips head screwdriver. Step 11 You will need Phillips head 2 x Wooden screwdriver Screws (H15)
  • Page 10 (P6) Step 12 You will need 1 x Small 3 x Cam Nuts Dowel (H2) (H4) (P11) Flat head screwdriver (P7) (P9) Insert 1 x Small Dowel (H2) into LF Leg (P7). Insert 3 x Cam Nuts (H4) into the holes of Rail (P6) and Back Panel (P11). Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 11 Step 14 (P8) You will need 4 x Plastic Hammer Glides (H16) (P7) (P10) (P9) Hammer 4 x Plastic Glides (H16) on Legs (P7, P8, P9, P10) as shown. Step 15 You will need (P11) 8 x Dowels 6 x Small (H1) Dowels (H2) (P3)
  • Page 12 Step 16 You will need 10 x Cam Bolts Phillips head (H3) screwdriver (P1) Insert 10 x Cam Bolts (H3) into the holes of Top Panel (P1) as shown. Step 17 (P1) You will need 10 x Cam Nuts Flat head (H4) screwdriver (P3)
  • Page 13 Step 18 You will need 4 x Small Cam Phillips head (P12) Bolts (H10) screwdriver Screw 4 x Small Cam Bolts (H10) into Drawer Front (P12) with a Phillips head screwdriver. Step 19 (P14) You will need Flat head 4 x Small Cam screwdriver Nuts (H11) (P15)
  • Page 14 Step 21 (P17) You will need (P14) 4 x Long Phillips head Screws(H12) screwdriver (P15) Attach Drawer Back (P17) to Drawer Sides (P14, P15) with 4 x Long Screws (H12), make sure that the groove lines up the whole way around the drawer. Tighten Screws using a Phillips head screwdriver.
  • Page 15 Step 24 (P13) (P12) table Put the drawers into the We strongly advise that you use Step 25 the wall safety strap provided to prevent the unit toppling You will need 1 x Safety 1 x Screw Strap (H17) (H18) 1 x Washer Phillips head (H19)

  • Page 16: Job Complete

    Step 26 Seek advice from a qualified trades person on how to attach this safety strap to You will need your specific wall. 1 x Washer Phillips head Wall screwdriver (H19) Screw and Wall Plug which are not provided. Please use appropriate fixtures for your wall.
