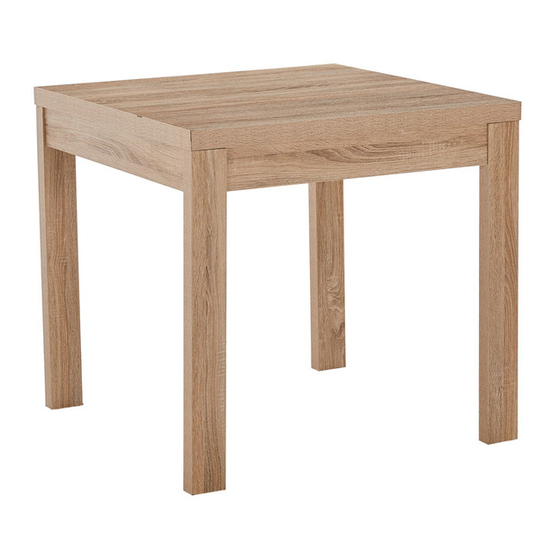

- Page 1 Version 1.0 Havana Table D4 fantasticfurniture.com.au...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Top Panel (P1) DO NOT USE Other tools you need: Phillips Head Screwdriver; Hammer Rail (P5) Rail (P4) (P2) (P3) Rail Parts list (P4) (P3) Rail Top Panel (P1) (P5) Legs (P2) x2 Legs (P3) x2 Rail (P4) x2 Rail (P5) x2... - Page 5 Step 1 You will need (P2) 8 x Threaded Rod (H6) (P3) Attach 4 x Threaded Rod (H6) into Legs (P2x2, P3x2). (P2) Step 2 You will need (P4) 8 x Dowels 4 x Half Round (H1) Nuts (H5) 4 x Hexagonal 1 x Spanner (P3) Nuts (H7)
- Page 6 (P3) Step 3 You will need (P2) (P2) 4 x Half Round 8 x Dowels Nuts (H5) (H1) (P5) (P3) 4 x Hexagonal 1 x Spanner Nuts (H7) (H8) (P5) Insert 8 x Dowels (H1) into Rail (P5x2), attach to Legs (P2x2, P3x2). Insert 4 x Half Round Nuts (H5), and 4 x Hexagonal Nuts (H7) using Spanner (H8).
- Page 7 (P3) Two People Step 5 (P2) You will need (P2) Required (P5) 16 x Cam Nuts Phillips Head (P4) (H4) Screwdriver This is how a cam nut works..The head of the cam bolt goes into the open mouth of the (P3) cam nut.
-
Page 8: Job Complete
Step 7 (P3) You will need (P2) (P2) 4 x Plastic Hammer Glide (H9) Two People (P3) Required Attach 4 x Plastic Glides (H9) to the Legs (P2x2&P3x2) by using a hammer to gently tap into place. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. Page 8 fantasticfurniture.com.au...
