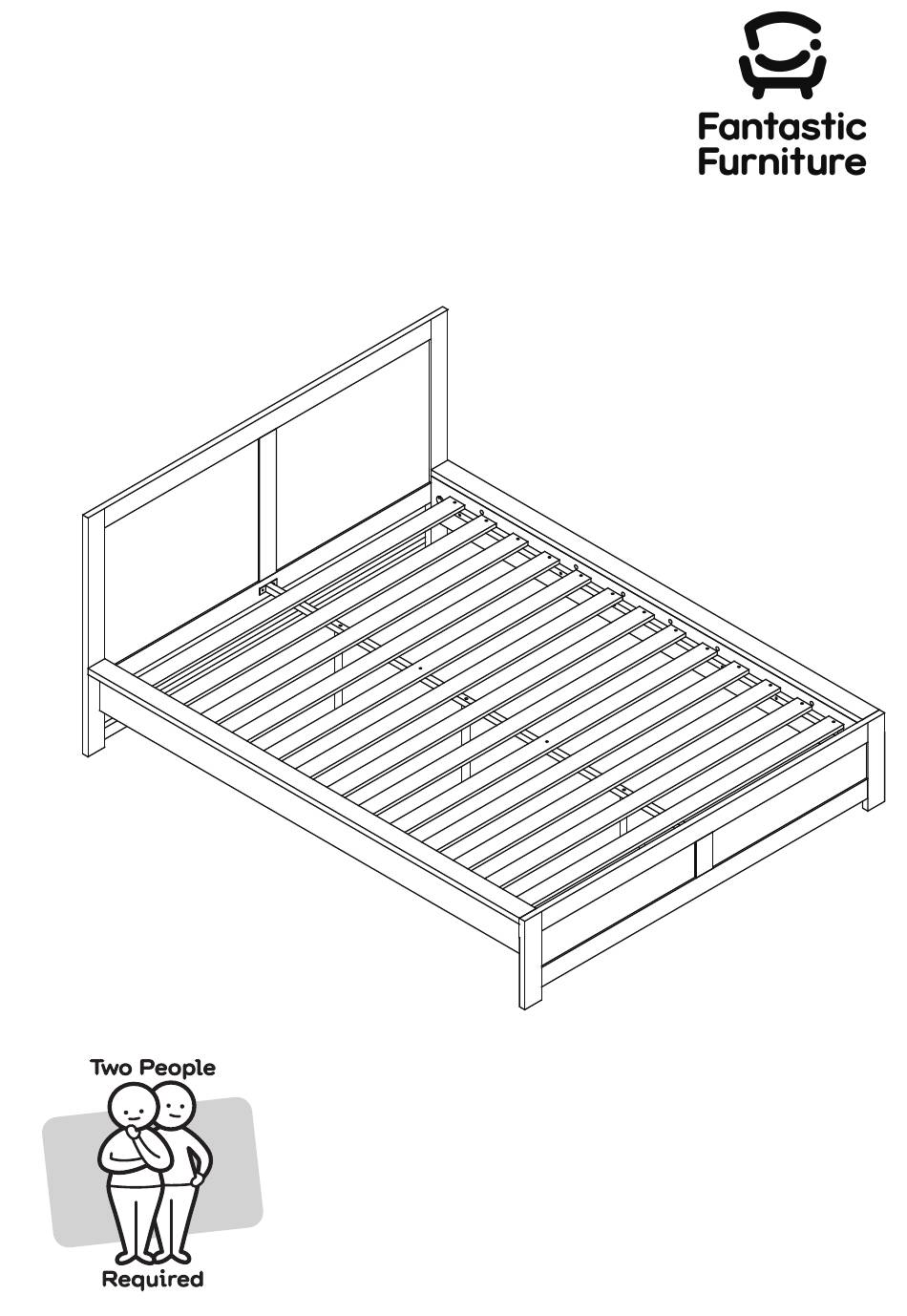

  • Page 1 Version 1.0 Havana Bed King fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 2 fantasticfurniture.com.au...
  • Page 3 Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.
  • Page 4 What you need to assemble the product Headboard DO NOT USE (P1) Other tools you need: Phillips Head Screwdriver; Hammer Side Cover (P4) Centre Rail (P5) Support Side Rail Side Cover (P3) (P6) Support (P4) (P6) Support Parts list 1 x Headboard (P1); (P6) 1 x Footborad (P2);...
  • Page 5 Step 1 You will need 12 x Cam 4 x Dowels Bolts (H3) (H1) (P4) Phillips Head Screwdriver Attach 6 x Cam Bolts (H3) to each Side Cover (P4), tightening with a Phillips Head Screwdriver. Insert 2 x Dowels (H1) into each Side Cover (P4). Step 2 You will need (P3)
  • Page 6 Step 3 You will need 4 x Threaded 2 x Plastic Rods (H6) Glides (H9) Phillips Head Hammer Screwdriver (P2) Attach 4 x Threaded Rods (H6) to the Footboard (P2). Attach 2 x Plastic Glides (H9) to the Footboard (P2) by gently tapping with a Hammer. Step 4 You will need (P4)
  • Page 7 Step 5 You will need 2 x Plastic Hammer Glides (H9) (P1) Attach 2 x Plastic Glides (H9) to the Headboard (P1) by gently tapping with a Hammer. Step 6 You will need (P1) (P4) 4 x Large 4 x Half Round Hexagonal Nuts Nuts (H5) (H8)
  • Page 8 Step 7 You will need (P5) (P6) 3 x Bolts 3 x Adjusters (H10) (H12) (P6) 3 x Washers 1 x Allen (H16) Key (H14) (P6) Attach 3 x Support Legs (P6) to the Centre Rail (P5) using 3 x Washers (H16) and 3 x Bolts (H10), tightening with the Allen Key (H14).
  • Page 9 Step 9 You will need 4 x Screws 2 x Bolts (H2) (H10) (P8) (P5) (P8) 2 x Hexagonal 2 x Washers Nuts (H13) (H16) (P3) (P3) 1 x Allen Phillips Head Two People Key (H14) Screwdriver Attach 2 x Support Slats (P8) to the Centre Rail (P5) using 2 x Bolts (H10), 2 x Washers (H16) and 2 x Hexagonal Required Nuts (H13), tightening with the Allen Key (H14).
  • Page 10 Step 11 You will need (P1) 2 x Bumpers (H15) Attach 2 x Bumpers (H15) to the Headboard (P1) as shown. Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 10...
