MODEL #
BT2 -2 Station Pourover
BT2A -2 Station Automatic
BT3 .3 Station Pourover
BT3A .3 Station Automatic
NOTE:
A SEPARATE CIRCUIT SHOULD BE SUPPLIED FOR EACH OF THESE BREWERS
WITH A 15 AMP. CIRCUIT BREAKER OR FUSE. CHECK LOCAL CODES FOR
COMPLIANCE IN INSTALLATION.
CAUTION:
DO NOT CONNECT BREWER TO POWER SOURCE UNTIL AFTER PRIMING.
(INSTRUCTION BELOW.)
BT3
GENERAL SPECIFICATIONS
Width
Depth
91/2"
171/2"
171/2'
91/2"
91/2"
171/2"
91/2"
171/2"
Ship wt.
Height
(Ibs.)
Watt
1600
201/4"
26
2200
1600
26
20Y4"
2200
1700
20%"
27
2300
1700
20%"
27
2300
CONTENTS
SPECIFICATIONS
ELECTRICAL DATA
~
Volt
13.3
120
10.0
220
13.3
120
10.0
220
14.2
120
10.5
220
14.2
120
10.5
220
Advertisement
Table of Contents
Related Manuals for Cecilware BREW TIME BT2-2
Summary of Contents for Cecilware BREW TIME BT2-2

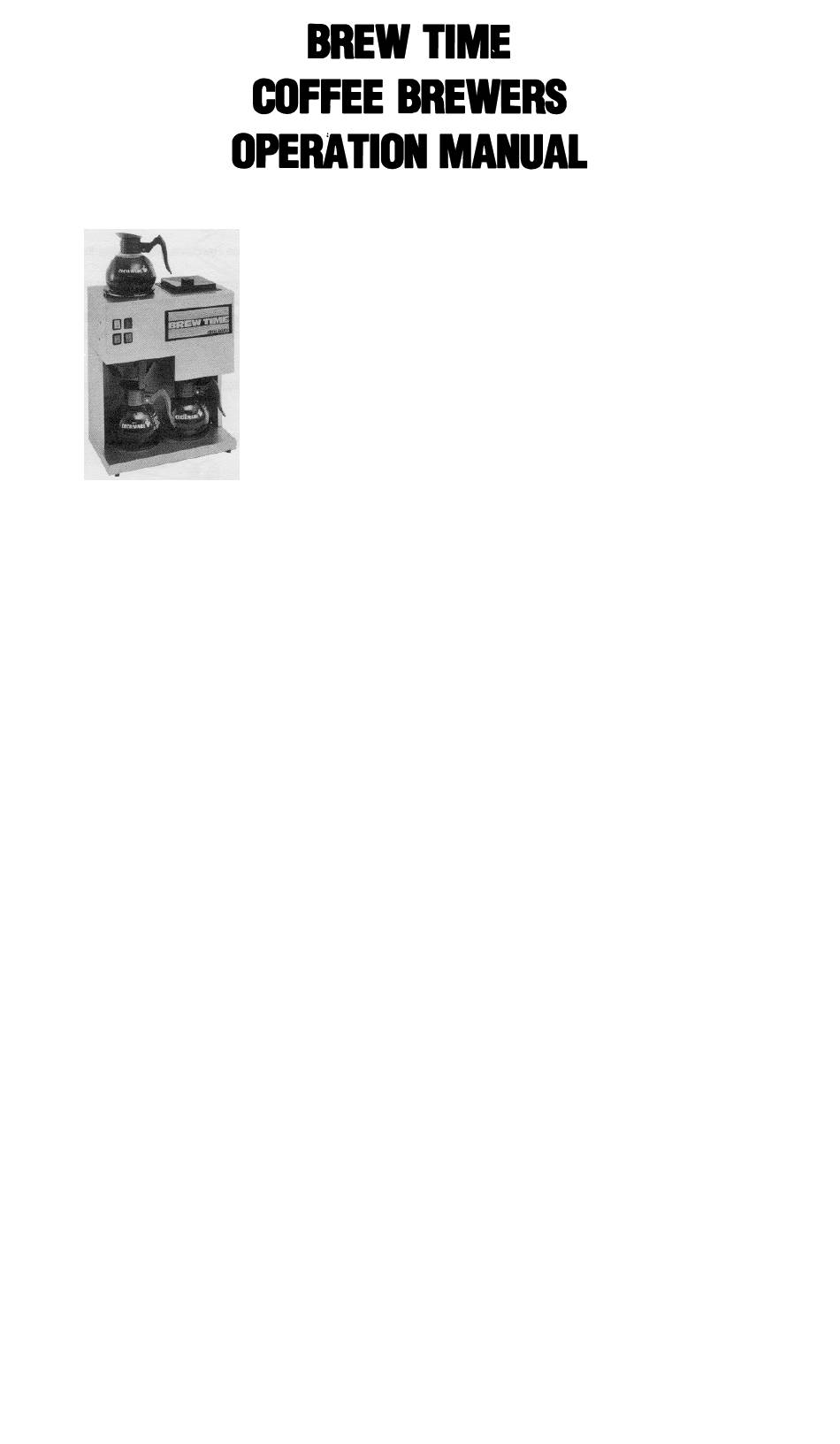

- Page 1 CONTENTS SPECIFICATIONS INSTALLATION INSTRUCTIONS BREWING INSTRUCTIONS CLEANING INSTRUCTIONS ADJUSTMENT INSTRUCTIONS TROUBLE SHOOTING GUIDE REPAIR PARTS LIST WIRING DIAGRAM MODEL # GENERAL SPECIFICATIONS ELECTRICAL DATA Ship wt. Width Height Depth (Ibs.) Volt Watt 13.3 1600 10.0 91/2" 201/4" BT2 -2 Station Pourover 171/2"...
- Page 2 WARNING: MACHINE WARRANTY IS VOID IF MACHINE IS CONNECTED TO ANY VOL OTHER THAN 120 VOLTS. **INSTALLATION INSTRUCTIONS** A SEPARATE CIRCUIT SHOULD BE SUPPLIED FOR EACH OF THESE BREWERS WITH A 15 AMP. CIRCUIT NOTE: BREAKER OR FUSE. CHECK LOCAL CODES FOR COMPLIANCE IN INSTALLATION. CAUTION: DO NOT CONNECT TO POWER SOURCE UNTIL AFTER PRIMING (INSTRUCTION BELOW).
- Page 3 FOR AUTHORIZED SERVICE PERSONNEL ONLY **SERVICE INSTRUCTIONS** and **TROUBLE SHOOTING GUIDE** CAUTION: DISCONNECT POWER BEFORE ATTEMPTING ANY ELECTRICAL REPAIRS Thermostat Instructions Note: The thermostat adjustment knob (Item 15) is located in back of top box. If water temperature is less than 197° F (92° C) slowly tum thermostat knob clockwise until ready light goes out.
- Page 4 Fig.1 REPLACEMENT PARTS UST FOR BT SERIES BREWERS...
- Page 5 (J114) ELECTRICAL SCHEMATIC FOR BT BREWERS Power Light P/N C260A Solenoid P/N L298A Timer Relay P/N L265A Tank Heater P/N G231A Left Warmer P/N G097A Right Warmer P/N G097A Top Warmer P/N G097A Main Power Switch P/N L069A Brew Cycle Switch and Left Warmer Switch P/N L155A Right Warmer Switch P/N L155A Brew Switch...
- Page 7 WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any defective part for a period of 90 days from the date of sale to the Original Purchaser with regard to labor and one (1) year with regard to parts and does not cover damage to the equipment caused by accident, alteration, improper use, voltage,...
- Page 8 N203A...
