Industrial Electronic Devices
SET COMMUNICATION:
This section defines the fundamental communication parameters of Modbus TCP.
By Pressing the
"Set
Communication" button from the main window for
SW67876(Fig. 2) the window "Set Communication" appears (Fig. 3).
The means of the fields for "IO-LINK" are:
In the fields
"Select
Device" the type of IO-LINK channels is defined;
The means of the fields for "PROFINET" are:
In the fields
"IP
Address" the IP address for PROFINET side of the converter
is defined;
In the fields
"SubNet
converter is defined;
In the fields "Gateway" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field
"Tunneling
communication is defined.
In the field
"Name of
PROFINET node;
If the field "Diagnostic" is checked, it is possible to define a starting byte of
the PROFINET array in output where placing the diagnostic of IO-Link device.
It is possible to see from this byte if the devices are communicating or not.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask for PROFINET side of the
Port" the tunneling port used for PROFINET
Station" it is possible to assign a name to the
User Manual IO-Link / PROFINET Slave
Document code: MN67876_ENG
Revision 1.000

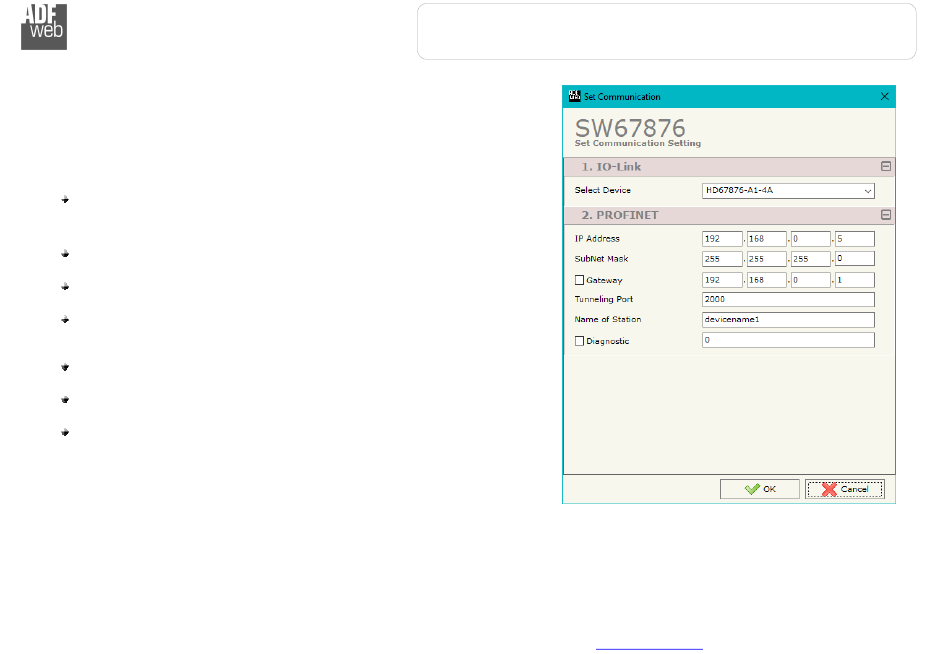

Figure 3: "Set Communication" window
INFO:
www.adfweb.com
Page 20 of 38
Phone +39.0438.30.91.31
