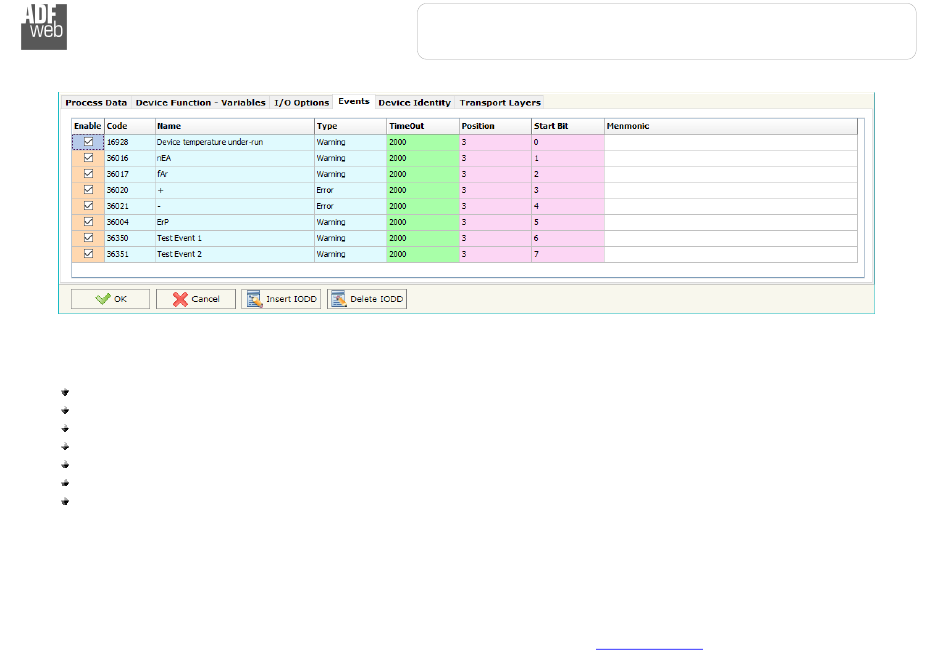

The "Events" section is used to define the IO-LINK events to which map the data of PROFINET (Fig. 10).
Figure 10: "Events" section
The meanings of the fields are:
In the field "Code" the code of the IO-Link event is defined;
In the field "Name" the name of the IO-Link event is defined;
In the field "Type" the type of the IO-Link event is defined;
In the field "TimeOut" the duration of the IO-Link event after its activation is defined;
In the field "Position" the starting byte of the internal memory arrays where mapping/getting the value is defined;
In the field "Start Bit" the starting bit of the byte of the field "Position" is defined;
In the field "Mnemonic" a description of the variable is defined.
