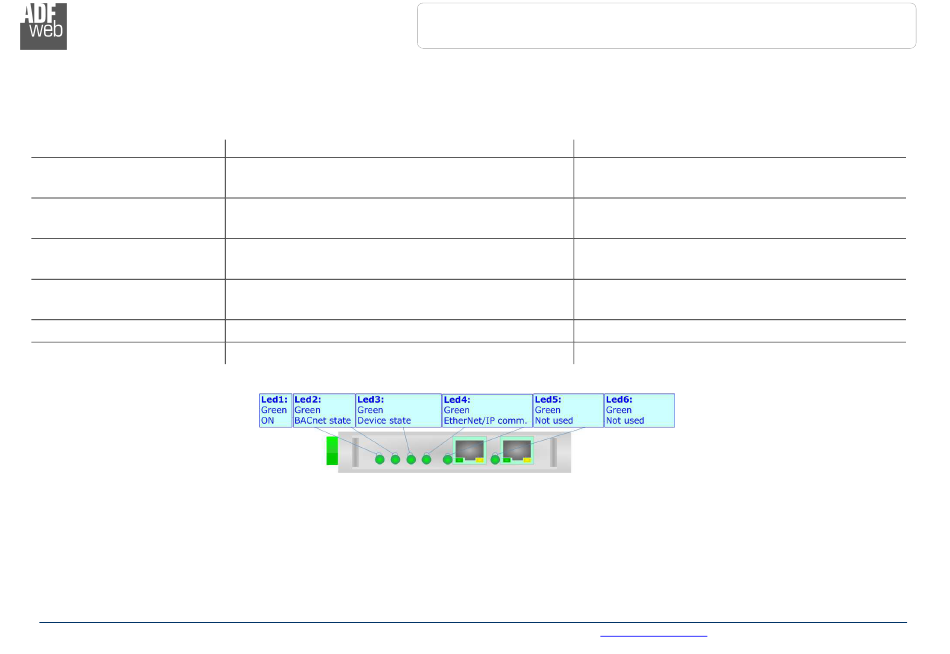

LEDS (for HD67689-IP-A1):

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: BACnet state (green)
3: Device State (green)
4: EtherNet/IP
communication (green)
5: Not used (green)
6: Not used (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
ON: Device powered
OFF: Device not powered
Blinks when a BACnet request is received
Blinks slowly (~1Hz)
Blinks when EtherNet/IP communication is running
OFF
OFF
User Manual BACnet Slave / EtherNet/IP Master
Document code: MN67689_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
OFF
OFF
