Assembly - Scheppach SM150LB Original Instruction Manual

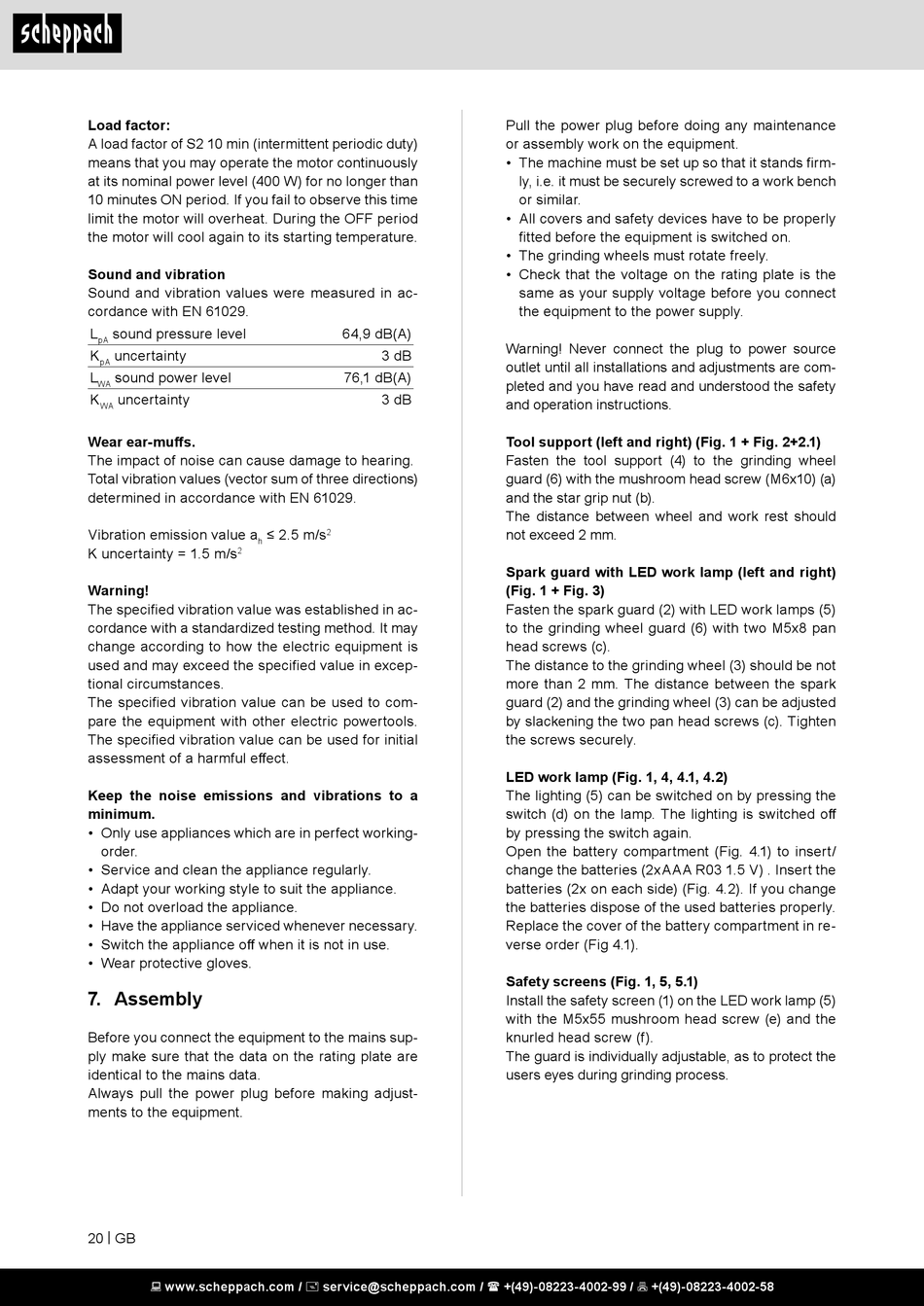

Load factor:
A load factor of S2 10 min (intermittent periodic duty)
means that you may operate the motor continuously
at its nominal power level (400 W) for no longer than
10 minutes ON period. If you fail to observe this time
limit the motor will overheat. During the OFF period
the motor will cool again to its starting temperature.
Sound and vibration
Sound and vibration values were measured in ac-
cordance with EN 61029.
L sound pressure level
pA
K uncertainty
pA
L sound power level
WA
K uncertainty
WA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions)
determined in accordance with EN 61029.
Vibration emission value a
h
K uncertainty = 1.5 m/s
2
Warning!
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in excep-
tional circumstances.
The specified vibration value can be used to com-
pare the equipment with other electric powertools.
The specified vibration value can be used for initial
assessment of a harmful effect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working-
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

7. Assembly

Before you connect the equipment to the mains sup-
ply make sure that the data on the rating plate are
identical to the mains data.
Always pull the power plug before making adjust-
ments to the equipment.
