data. Click LogTag - Configure; LogTag
USB ports and display the configuration options for connected
UTRIX-16(M)'s. Although you can configure many devices at the
same time, it is practical to limit the number of devices to about
10, using a powered USB hub. It is not possible to configure
different models at the same time.
Standard Configuration Options
The standard configuration options are very similar to those of other
®
LogTag
recorder products and include settings such as
start
method,
pre-start
recording,
start
delay,
temperature alarm parameters

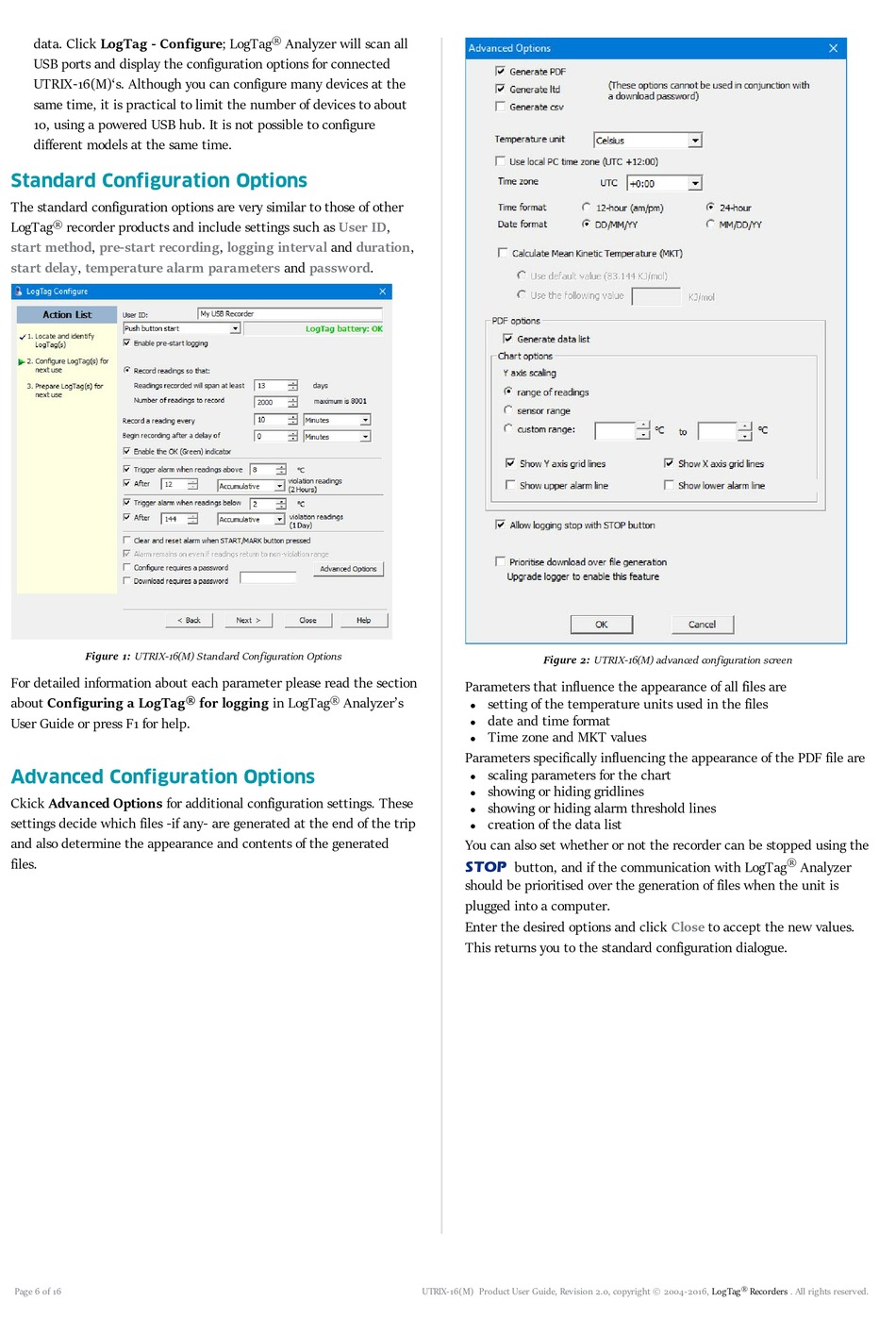

Figure 1: UTRIX-16(M) Standard Configuration Options
For detailed information about each parameter please read the section
about Configuring a LogTag
User Guide or press F1 for help.
Advanced Configuration Options
Ckick Advanced Options for additional configuration settings. These
settings decide which files -if any- are generated at the end of the trip
and also determine the appearance and contents of the generated
files.
Page 6 of 16
®
Analyzer will scan all
User
logging interval
and duration,
and password.
®
®
for logging in LogTag
Analyzer's
ID,
Parameters that influence the appearance of all files are
setting of the temperature units used in the files
l
date and time format
l
Time zone and MKT values
l
Parameters specifically influencing the appearance of the PDF file are
scaling parameters for the chart
l
showing or hiding gridlines
l
showing or hiding alarm threshold lines
l
creation of the data list
l
You can also set whether or not the recorder can be stopped using the
button, and if the communication with LogTag
STOP
should be prioritised over the generation of files when the unit is
plugged into a computer.
Enter the desired options and click
This returns you to the standard configuration dialogue.
UTRIX-16(M) Product User Guide, Revision 2.0, copyright © 2004-2016,
Figure 2: UTRIX-16(M) advanced configuration screen
Close
to accept the new values.
®
Analyzer
®
LogTag
Recorders
. All rights reserved.
