Summary of Contents for LogTag UTRED30-16

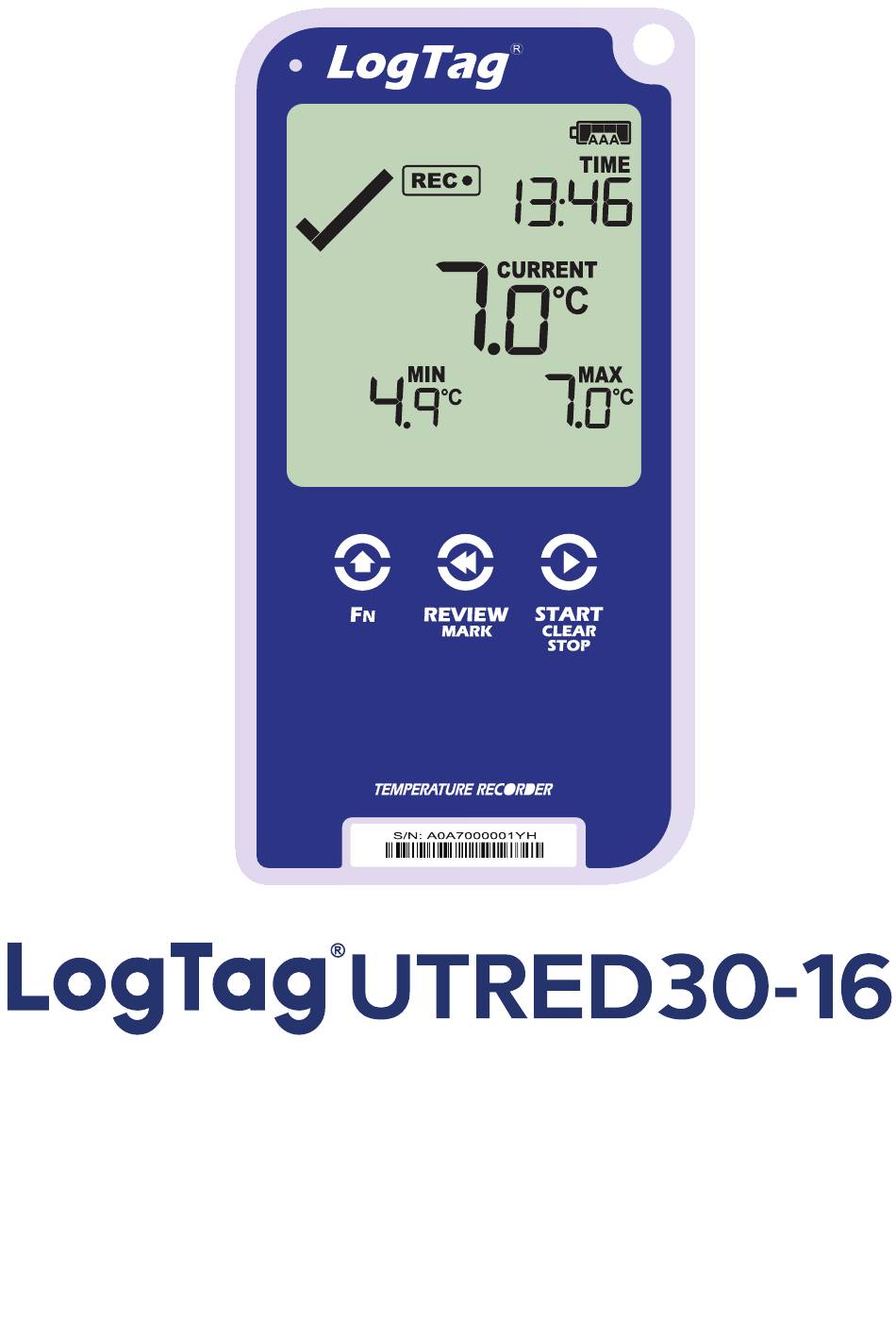

- Page 1 Quickstart Guide Release Version A. www.logtagrecorders.com Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524...
- Page 2 Quickstart Guide Contents What’s Included Battery Installation Downloading LogTag Analyzer Confi guring your UTRED30-16 Starting your UTRED30-16 Downloading Results Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524...
- Page 3 What’s Included Please check you have each of the items shown below before continuing with setting up your UTRED30-16. USB Cable UTRED30-16 2x AAA Battery (Not included) ST100X External Probe (Not included) Page 3 Distributed by MicroDAQ.com, Ltd. www.MicroDAQ.com (603) 746-5524...
- Page 4 Battery Installation The AAA batteries are the main power source for your UTRED30-16. A 5V/5W USB power supply is another power backup source if you wish to power the unit permanently via the USB socket. 1. You will need a small phillips (cross-shaped) screwdriver to remove the cover on the back of the UTRED30-16 case.
- Page 5 Downloading LogTag Analyzer To download the latest LogTag Analyzer, open your browser and type in the URL: https://logtagrecorders.com/software/LTA3/ 1. Fill in the form with your details, then click ‘Go to downloads page’ 2. Click the ‘Download Now’ button to start the download 3.
- Page 6 1. Open LogTag Analyzer 2. From the menu, click on ‘LogTag’ then ‘Configure’ from the drop-down or click on the ‘Wizard’ icon 3. Adjust your logger configuration settings as required.
- Page 7 Press and hold the START/ Clear/Stop button. STARTING will appear along with READY. Release the button once READY disappears. The UTRED30-16 now records temperature data. The Logger will not start if: • You release the button before READY disappears.
- Page 8 USB port Alternatively, you can follow the steps below: 1. Open LogTag Analyzer 2. From the menu, click on ‘LogTag’ then ‘Download’ from the drop-down or press ‘F4’ from your keyboard 3. Click ‘Close’ to exit the download page...
