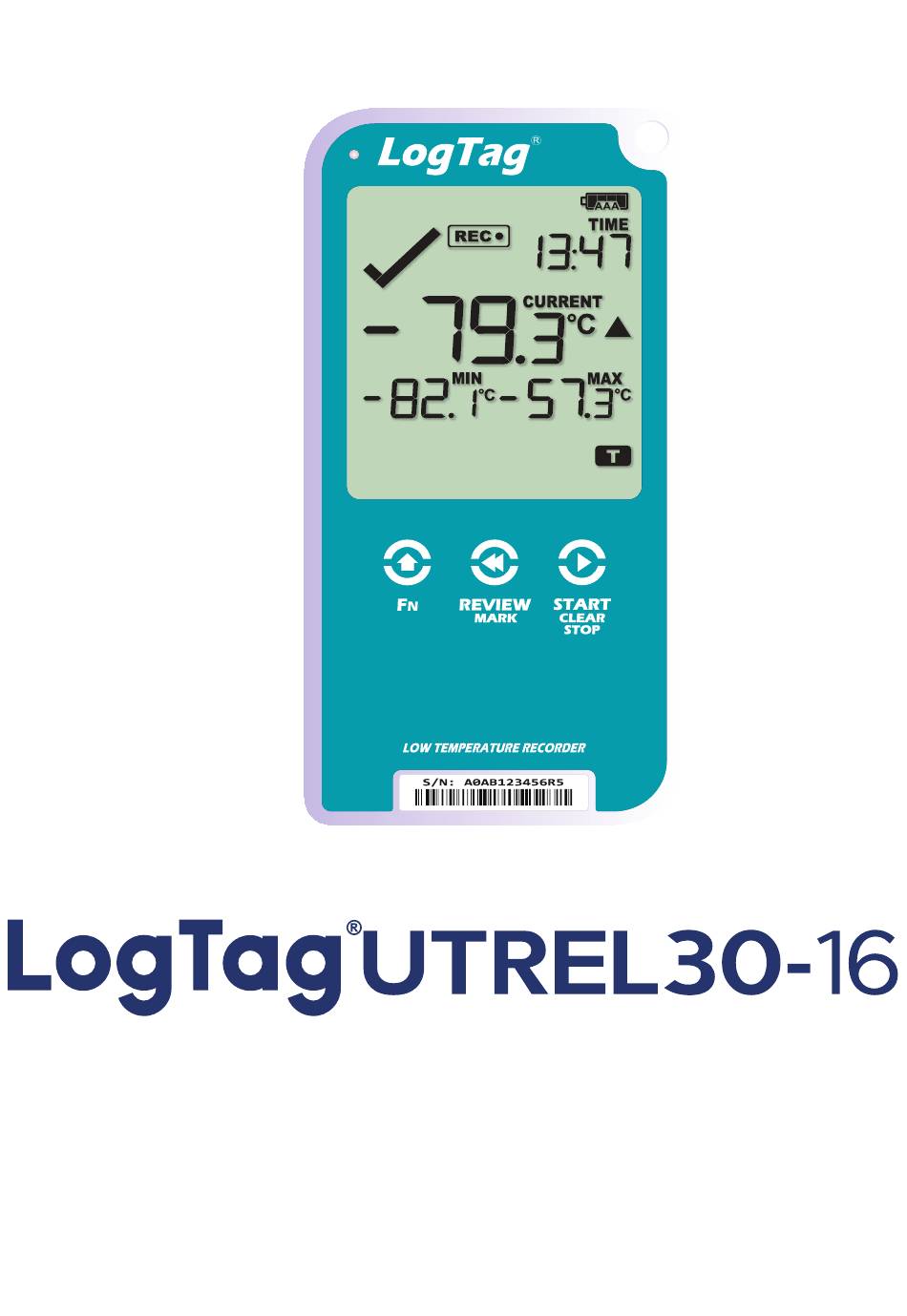

- Page 1 Quick Start Guide Version A www.logtagrecorders.com...
-
Page 2: Table Of Contents
Quickstart Guide Contents What’s included Battery Installation Downloading LogTag Analyzer Confi guring your UTREL30-16 Starting your UTREL30-16 Downloading Results... -
Page 3: What's Included
What’s included Please check you have each of the items shown below before continuing with setting up your UTREL30-16. AC Adapter (Not included) USB Cable UTREL30-16 ST10 External Wall mount 2x AAA Battery Probe (Not included) (Not included) (Not included) Page 3... -
Page 4: Battery Installation
Battery Installation The AAA batteries are the main power source for your UTREL30-16. A USB cable is another power backup source if you wish to power the unit permanently via the USB socket. 1. You will need a small phillips (cross-shaped) screwdriver to remove the cover on the back of the UTREL30-16 case. - Page 5 Battery Installation continued... 2. Once you have removed the battery cover, install the 2x AAA batteries. Take note of the direction each battery must be installed. 3. Once both batteries are securely installed, replace the battery cover and secure via the screw you used to open the cover.
-
Page 6: Downloading Logtag Analyzer
Downloading LogTag Analyzer To download the latest LogTag Analyzer, open your browser and navigate to: https://logtagrecorders.com/software/LTA3/ 1. Click ‘Go to downloads page’ to take you to the download page. 2. Click ‘Download Now’ to start the download. 3. Click ‘Run’ or ‘Save File’ then double-click the downloaded file to open the LogTag Analyzer Setup Wizard. - Page 7 Downloading LogTag Analyzer continued... 4. Follow the on-screen prompts to install LogTag Analyzer. 5. Click ‘Finish’ to exit the LogTag Analyzer Setup Wizard. Note: If you already have LogTag Analyzer installed, please see whether you need to update to the latest version by clicking ‘Check Internet for updates’...
-
Page 8: Confi Guring Your Utrel30-16
1. Open LogTag Analyzer. 2. Click ‘Configure’ from the ‘LogTag’ menu or click the ‘Wizard’ icon. 3. Adjust your logger configuration settings as required. For more information on configuration... -
Page 9: Starting Your Utrel30-16
Starting your UTREL30-16 Please ensure you have connected an ST10 external Please ensure you have connected an ST10 external probe to your device before starting. probe to your device before starting. Press and hold the START/ CLEAR/STOP button. STARTING will appear along with READY. -
Page 10: Downloading Results
Alternatively, you can follow the steps below: 1. Open LogTag Analyzer 2. Click ‘LogTag’ from the ‘Download’ menu or press ‘F4’ 3. Click ‘Close’ to exit the download page By default, auto-download is enabled in LogTag...
