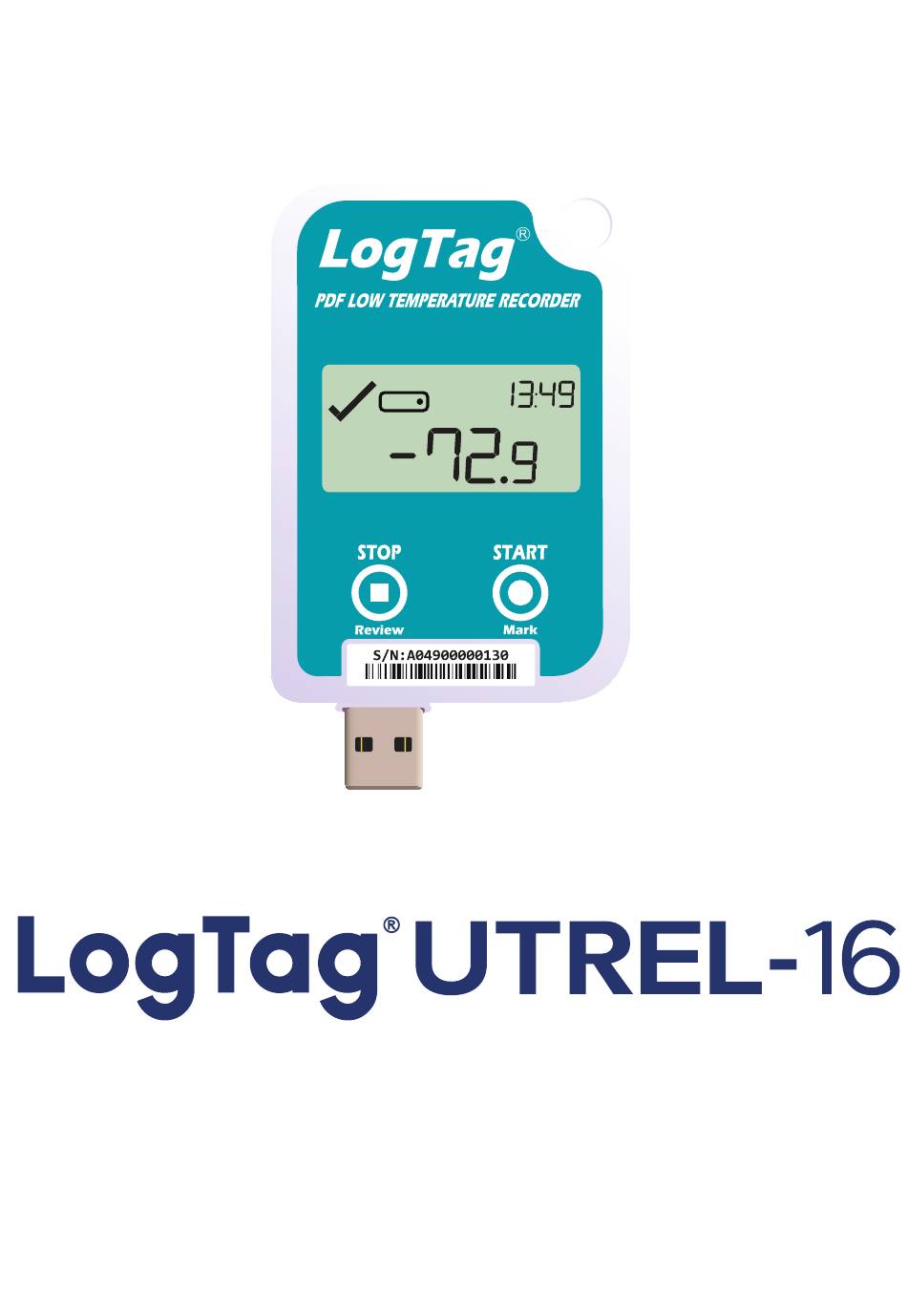

- Page 1 °C Quick Start Guide Version A www.logtag-recorders.com...
-
Page 2: Table Of Contents
Quickstart Guide Contents What’s Included Downloading LogTag Analyzer Configuring your UTREL-16 Starting your UTREL-16 During Recording Downloading Results... -
Page 3: What's Included
What’s Included Please check you have the items shown below before continuing with setting up your UTREL-16. UTREL-16 ST10 External Probe Optional: (Not included) Buffer assembly Wall mount (Not included) (Not included) Page 3... -
Page 4: Downloading Logtag Analyzer
Downloading LogTag Analyzer To download the latest LogTag Analyzer, open your browser and navigate to: https://logtag-recorders.com/de/support/ 1. Click ‘Go to downloads page’ to take you to the download page. 2. Click ‘Download Now’ to start the download. 3. Click ‘Run’ or ‘Save File’ then double-click the downloaded file to open the LogTag Analyzer Setup Wizard. - Page 5 Downloading LogTag Analyzer continued... 4. Follow the on-screen prompts to install LogTag Analyzer. 5. Click ‘Finish’ to exit the LogTag Analyzer Setup Wizard. Note: If you already have LogTag Analyzer installed, please see whether you need to update to the latest version by clicking ‘Check Internet for updates’...
-
Page 6: Configuring Your Utrel-16
1. Open LogTag Analyzer. 2. Click ‘Configure’ from the ‘LogTag’ menu or click the ‘Wizard’ icon. 3. Adjust your logger configuration settings as required. For more information on configuration... -
Page 7: Starting Your Utrel-16

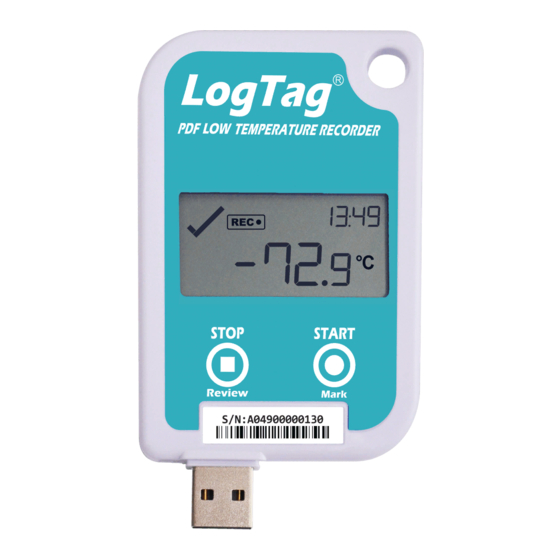

Starting your UTREL-16 Display overview: Recording Mark Indicator Indicators Clock Alarm/OK Indicator Min/Max Indicators Battery Low Symbol Alarm Threshold Markers Above/Below Threshold Arrows Temperature Temperature Recording units Indicators Please ensure the sensor is connected before starting your UTREL-16. Press and hold the START/MARK button. -
Page 8: During Recording
During Recording Reset Trip Min/Max Temperatures: The currently stored Min/Max temperature values can be reset at any time while the unit is recording, but not once the unit has been stopped. To reset the values, please refer to the Product User Guide. To view other information about clearing alarms and reviewing Min/Max trip temperatures, please also refer to the... -
Page 9: Downloading Results
Alternatively, you can download and view data on LogTag Analyzer. 1. Open LogTag Analyzer. 2. Click ‘Download’ from the ‘LogTag’ menu or press F4. 3. Click ‘Close’ to exit the download page. By default, auto-download is enabled in LogTag...
