Interpreting the Data

Data Evaluation - Report

Alarm Status
This shows at a glance if the UTRIX-16(M) recorded alarm conditions
during the trip (showing a red
✔
(green ).
File Information
This section shows general information about the PDF file, such as
generation time, date and time formats and the file name, which is
compiled from information about the data it contains:
LogTag_[serial_number]_[trip number]_[file creation date]_file creation time]_[OK or ALM].
Recorder Information and Configuration
These sections show general information about the recorder such as
serial and model numbers, trip number, battery status and
description. It shows how the recorder was started, if a start delay was
active and the interval used for taking readings.
Recorded Data Information
This block contains information about the data recorded during the
trip. It shows the time covered by the recording and statistical data of
the trip. You can see the conditions for which each alarm was to be
triggered, and how often such a condition occured.
High Alarm and Low Alarm Information
These two sections summarize the alarm occurences during the trip,
including statistical data.
Page 11 of 16
✖
) or if no alarms were recorded

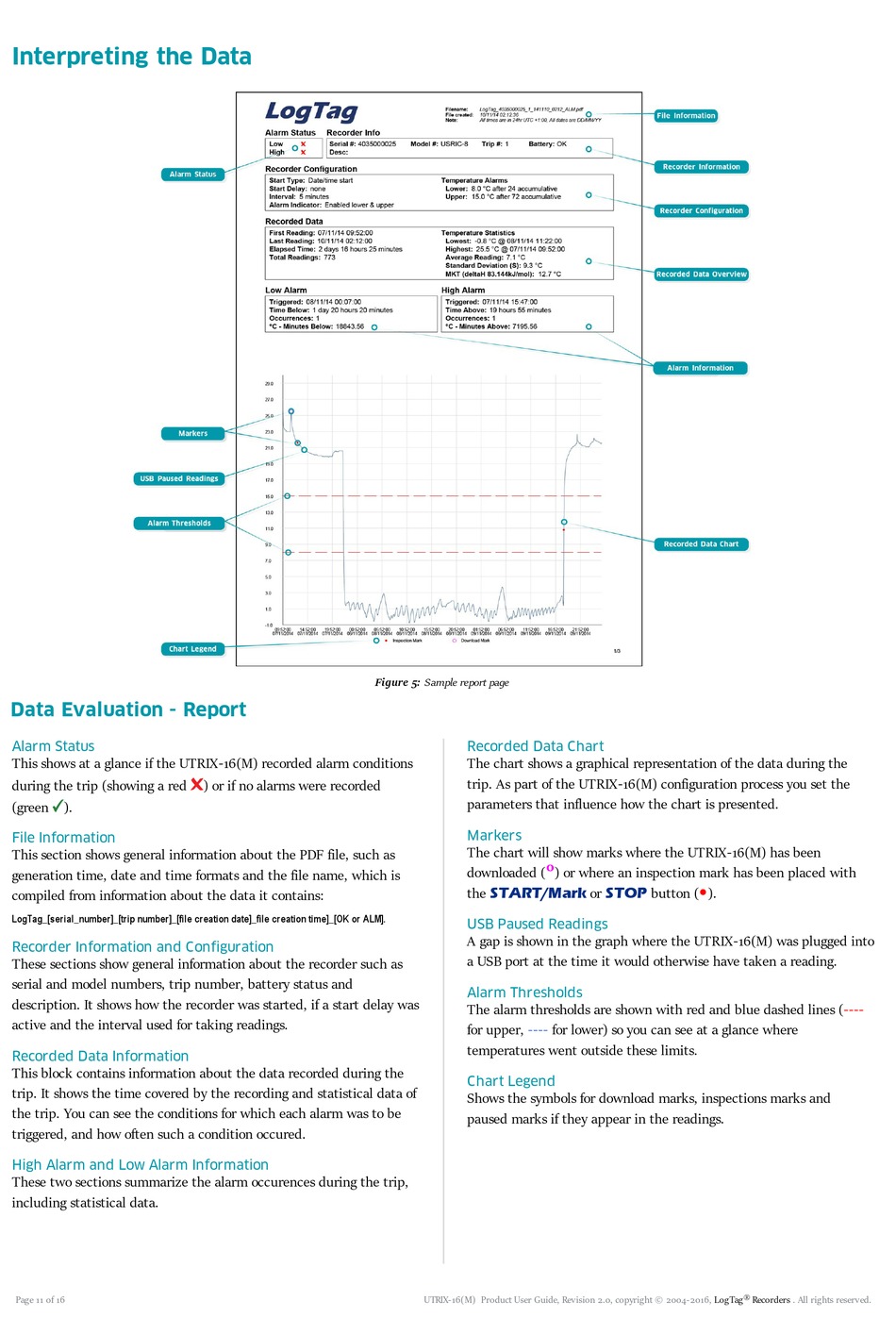

Figure 5: Sample report page
Recorded Data Chart
The chart shows a graphical representation of the data during the
trip. As part of the UTRIX-16(M) configuration process you set the
parameters that influence how the chart is presented.
Markers
The chart will show marks where the UTRIX-16(M) has been
downloaded (
the
START/Mark
USB Paused Readings
A gap is shown in the graph where the UTRIX-16(M) was plugged into
a USB port at the time it would otherwise have taken a reading.
Alarm Thresholds
The alarm thresholds are shown with red and blue dashed lines
for upper, ----
temperatures went outside these limits.
Chart Legend
Shows the symbols for download marks, inspections marks and
paused marks if they appear in the readings.
UTRIX-16(M) Product User Guide, Revision 2.0, copyright © 2004-2016,
º
) or where an inspection mark has been placed with
•
or button ( ).
STOP
for lower) so you can see at a glance where
(----
®
