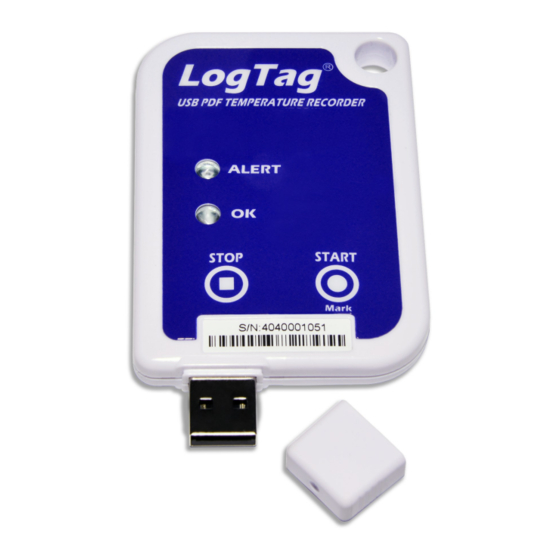

- Page 1 LogTag ® TEMPERATURE RECORDER UTRIX-16 Multi-trip USB PDF Temperature Recorder Product User Guide Revision 1.0 Thursday, 3. September 2015...
-
Page 2: Table Of Contents
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Page 2 of 11 UTRIX-16 Product User Guide, document revision 1.0, 20150903 - © Copyright 2015, LogTag Recorders Ltd. -
Page 3: Safety Information
• ...the device is stored and operated according to LogTag Recorders’ recommendations. Disclaimer The UTRIX-16 monitors temperature exposure and not the quality of the goods it accompanies. Its purpose is to signal if product quality evaluation/testing is required. Typographical conventions... -
Page 4: Introduction
Can be used to stop the unit. 1 Depending on the configuration, the UTRIX-16 may produce either one or the other file, or none at all if file generation is disabled when configuring the unit. 2 Depending on the factory configuration additional drivers may be installed at this time. -
Page 5: Standard Configuration Options
You cannot combine a date/time start with pre-start readings or the start delay function. If you configure the UTRIX-16 for a time start, but you leave it plugged into the USB port until after the configured time has passed, the unit will start as soon as it is unplugged. -
Page 6: Marking A Reading With An Inspection Mark
You may see the start signal if you have configured a time start, but have left the unit plugged in beyond the start time of the UTRIX-16. Page 6 of 11 UTRIX-16 Product User Guide, document revision 1.0, 20150903 - © Copyright 2015, LogTag Recorders Ltd. -
Page 7: Tips And Tricks
LED every second Ready for re-flash The red LED is on • A permanently lit red LED light indicates the UTRIX-16 is ready to receive new firmware. permanently Special software is required to upload new firmware to the UTRIX-16. -
Page 8: Interpreting The Data
Paused Readings Recorder configuration A gap is shown in the graph where the UTRIX-16 was plugged into a USB port at the time it would otherwise have taken a reading. Here you can see the settings that were uploaded during the configuration of the UTRIX-16. -
Page 9: Getting Help
Recorders website at: reading. http://www.logtagrecorders.com/support.html Marked readings The data list shows marked readings where the UTRIX-16 has been downloaded with LogTag Analyzer or where an inspection mark has been placed with the START STOP button. It also shows readings as “paused” where the UTRIX-16 was plugged into a USB port at the time it would otherwise have taken a reading. -
Page 10: Utrix-16 Factory Presets
UTRIX-16 Factory Presets LogTag® UTRIX-16 recorders can be client configured using LogTag Analyzer. For an out-of-box solution they can also be ordered in volume, pre-configured with a factory profile ready for starting. If a default configuration does not suit, customers can compile their own profile by specifying the parameters in the table below when ordering. -
Page 11: Technical Specifications
• Withstand 5 drops 1m to smooth concrete floor without loss of function or calibration Environmental IEC 60529: IP64 with USB cap fitted Fits into IP67 Protective Enclosure 200-000020 LogTag® is a registered trademark of LogTag Recorders Ltd. Page 11 of 11...
