C-IPC EXPANSION CARD
C-IPC Expansion card

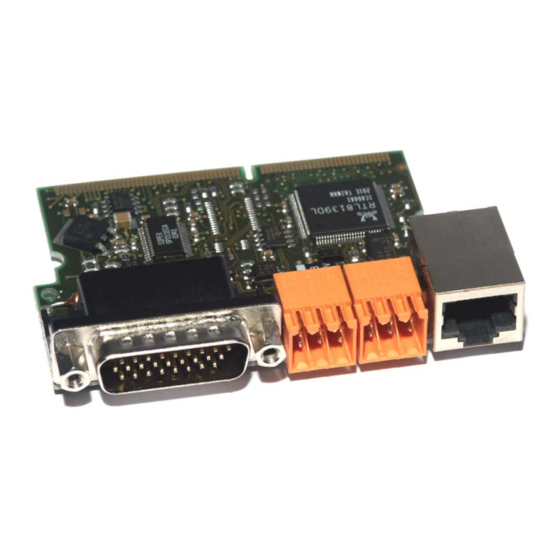

With the expansion card the C-IPC can be expanded with up to 4 further interfaces. The
special design allows an easy installation and fixation of the expansion card.
The delivery of the expansion card also includes the corresponding cover and fixing
material!
16.04.2010
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIGMATEK C-IPC
Summary of Contents for SIGMATEK C-IPC

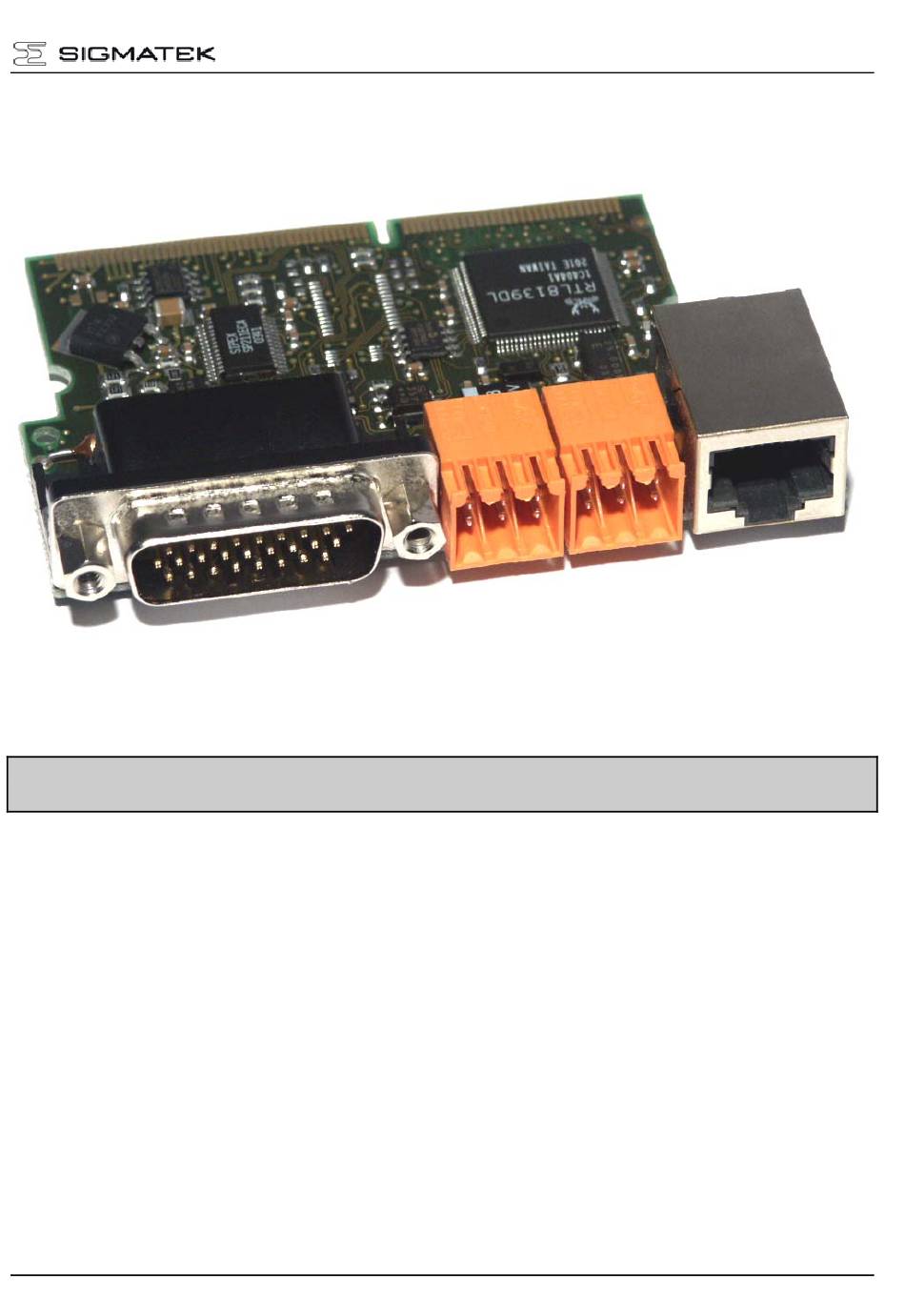

- Page 1 C-IPC EXPANSION CARD C-IPC Expansion card With the expansion card the C-IPC can be expanded with up to 4 further interfaces. The special design allows an easy installation and fixation of the expansion card. The delivery of the expansion card also includes the corresponding cover and fixing material! 16.04.2010...
-
Page 2: Specification
C-IPC EXPANSION CARD Specification Periphery connection via SO-DIMM socket Fixing 2 x M2x4 cheese head screw with serrated lock washer DIN 6798-A 2,2 Standardization UL (E247993) Article numbers COM3 COM4 Ethernet (Version) RS23 RS4XX RS23 RS4XX 01-460-011 01-460-021 01-460-031 01-460-041 Page 2 16.04.2010... -
Page 3: Mechanical Dimensions
C-IPC EXPANSION CARD Mechanical dimensions 16.04.2010 Page 3... - Page 4 C-IPC EXPANSION CARD Connections X1, LPT1 X2, COM3 X3, COM4 X4, Ethernet 2 Page 4 16.04.2010...
-
Page 5: Pin Assignment
C-IPC EXPANSION CARD Pin assignment Expansion card X1: LPT1 (26-pole HD-DSUB plug, angled) 26-pole DSUB plug Data Strobe n.u. Autofeed Density Select Data 0 Index Error Head Select Data 1 Track 0 Init Direction Data 2 Write Protect Select Input... - Page 6 C-IPC EXPANSION CARD X3: COM 4 (6-pole Weidmüller) Terminal RS232 RS 422 RS 485 TTY 20 mA n.u. n.u. 20 mA This table shows all opportunities, the final mounting is specified in table „Specification“! X4: Ethernet 2 (8 pole RJ45) Function TD–...
-
Page 7: Ethernet Cable Connection
C-IPC EXPANSION CARD Ethernet cable connection Twisted pair cable connection (expansion card to a HUB) Function Cable (both sides) Orange Orange/white Green not assigned Blue not assigned Blue/white Green/white not assigned Brown not assigned Brown/white Both ends of the network cable have this assignment (not cross-linked). - Page 8 C-IPC EXPANSION CARD Installation, respectively, removal of the expansion card Especially at installation of the expansion card the following procedure must be noticed: First plug the card sloping into the SO-DIMM socket, afterwards press the card into the socket clamp...
- Page 9 C-IPC EXPANSION CARD Assembly of the cover plate Put the cover plate vertically on the C-IPC, stick the pins into the cuts and screw on the expansion card. 16.04.2010 Page 9...
- Page 10 C-IPC EXPANSION CARD Page 10 16.04.2010...
