OneStream Programming Guide
4.13.5 Record Audio
To troubleshoot any audio problems that are being experienced it is possible to record 60 seconds
of audio and transfer the recordings to the TelecomFM FTP server for analysis. Select the port or
ports to record (for example, if problems are being experienced on calls from FXS to GSM you
might select FXS1 for Port 1 and GSM1 for Port 2. A call being made between the 2 ports would
then be recorded.
When the "Start Recording" button is clicked the OneStream will record from the selected ports for
60 seconds and then automatically transfer the recording to the TelecomFM FTP Server.

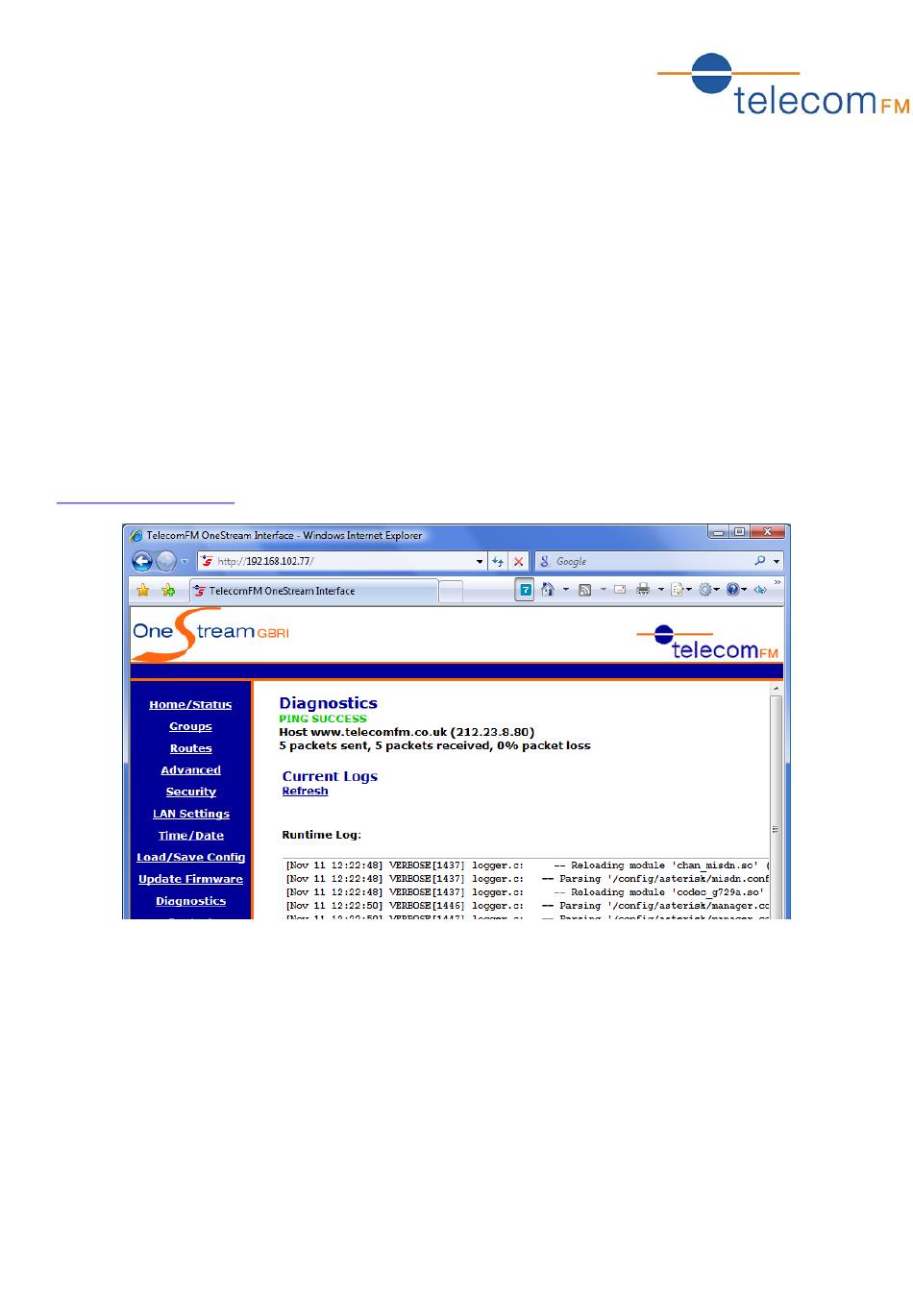

4.13.6 Ping Host
To test LAN functionality or DNS it is possible to ping a remote host and view the response. Enter
an IP Address or a Fully Qualified Domain Name in the Host box and click the Ping Host button.
After a few seconds the page will reload and the response will be shown. For example, if
www.telecomfm.co.uk
is entered in the Host box the response should be as shown here:
73
