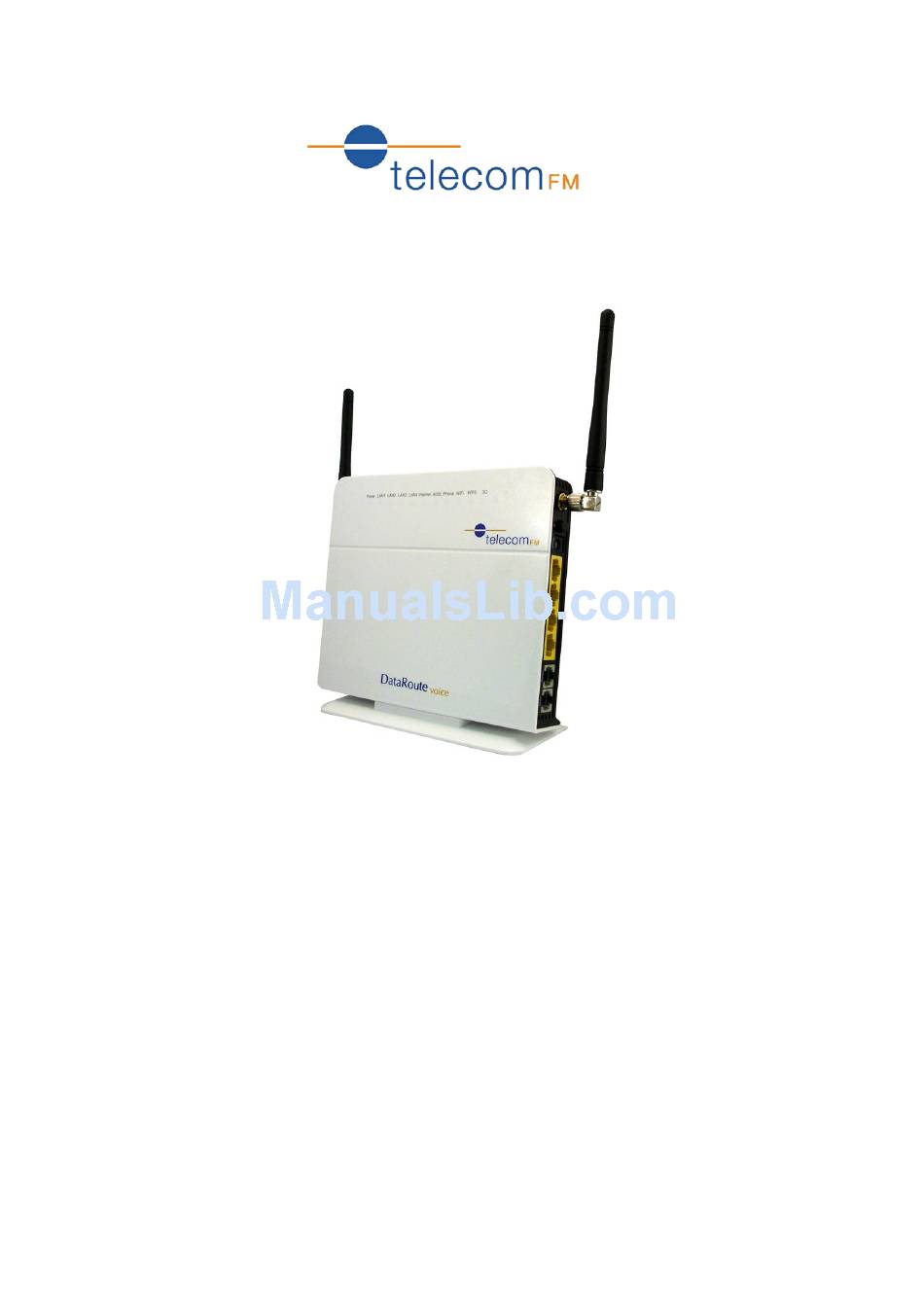

DataRoute voice
Installation and User Manual
Version 4 – October 2011
4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataRoute voice and is the answer not in the manual?

Questions and answers

Related Manuals for Telecom FM DataRoute voice

Summary of Contents for Telecom FM DataRoute voice

  • Page 1 DataRoute voice Installation and User Manual Version 4 – October 2011 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299...

  • Page 2: Emergency Calls

    Therefore, you should never rely solely on the terminal equipment for essential communications such as medical or emergency services. No responsibility is assumed by TFM for the use or reliability of the DataRoute voice when used in a situation or with other equipment not supplied or specified by TFM.

  • Page 3: Table Of Contents

    DataRoute voice User Manual 1. Contents Contents ..................... 3 Overview ....................5 Specification ....................5 Indicators & Interfaces ................5 Package Contents ..................7 Getting Started ................... 8 Hardware Connection .................. 8 Computer Configuration ................9 Log In ..................... 10 Status .......................
  • Page 4 DataRoute voice User Manual WLAN MAC Filters ..................35 WLAN Bridge .................... 36 LAN (DHCP) ....................37 Firewall ....................39 11.1 Firewall Settings ..................39 11.2 IP Filters ....................39 11.3 Domain Filters ..................41 11.4 MAC Filters .................... 42 11.5...

  • Page 5: Overview

    DataRoute voice User Manual 2. Overview The DataRoute voice is a high-speed gateway with functions including:  Build-in wireless module with speed up to 7.2Mbps;  ADSL2/2+ modem for broadband connection;  Four 10/100M auto-sensing Ethernet ports for wired connections;...
  • Page 6 DataRoute voice User Manual Item Label Description Solid green: DataRoute Power on Power Solid red: Firmware update in progress Off: DataRoute Power off On: Ethernet is connected LAN1-4 Blinking green: Ethernet Traffic flows Off: Ethernet is disconnected Blinking green: PPP/DHCP negotiation...

  • Page 7: Package Contents

    DataRoute voice User Manual Package Contents Item Quantity Power Adapter Phone Line RJ-45 Cable DataRoute Voice 1 User Manual ADSL Splitter 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299...

  • Page 8: Getting Started

    2. Use another telephone cord to connect the MODEM port of the splitter with the ADSL port of the DataRoute voice (only if using ADSL). 3. Connect Ethernet port of the DataRoute voice with 10/100BASE-T port of the computer using the network cable that comes with the unit.

  • Page 9: Computer Configuration

    IP address to any devices connecting to it, alternatively users can set the computer’s TCP/IP settings manually as follows: 1. Set the computer IP address to the same subnet as the DataRoute voice i.e. set the IP address of the PC to one in the range of 192.168.1.2 - 192.168.1.254” excluding 192.168.1.1.

  • Page 10: Log In

    Warning: Please be sure the IP of the computer network card is in the same IP range as the DataRoute voice LAN port before trying to log on (ex: 192.168.1.2 and 192.168.1.1 are in same range).

  • Page 11: Status

    DataRoute voice User Manual 5. Status Click on the Status menu in the web interface The following status information is available by clicking the links on the left of the webpage: Basic Info Includes hardware and software versions, system time info and basic IP information.

  • Page 12: Quick Setup

    Step 1: Access Account This sets the username and password to access the web interface. The default username to access the DataRoute voice is admin. The default password is admin. To change the password: 1. Select admin from the Username drop-down box 2.
  • Page 13 DataRoute voice User Manual Step 2: Time Settings From this page the current time can be set manually or the DataRoute voice can be set to obtain the correct time from an internet time server. Note: it is recommended that an internet time server is used when available – if the time is set manually it will be lost in the event of a power cut or if the unit is restarted.
  • Page 14 DataRoute voice User Manual Step 3: Wireless Settings By default the Wireless (Wi-Fi) access point is enabled and the SSID (the name that is displayed when users search for Wi-Fi networks) is set to “DataRoute”. To keep the default settings click Next to go to the next step.
  • Page 15 Wi-Fi. To keep the default settings click Next to go to the next step. A new IP address can be assigned to the DataRoute voice and the DHCP options can be changed from this screen – for more details on available options refer to section 10.
  • Page 16 DataRoute voice User Manual Step 6: Configure 3G and ADSL connections To setup the 3G connection: Click the Edit button for the 3G service For most networks it is only required to set the correct APN value (this should be provided by your network operator)–...
  • Page 17 DataRoute voice User Manual To setup the ADSL connection: Click the Add button to start the ADSL network wizard. Enter the values for VPI and VCI supplied by the ADSL Service Provider and click Next. Select the DSL link type and Encapsulation Mode supplied by the ADSL service provider;...
  • Page 18 DataRoute voice User Manual If EoA link type was selected choose the WAN service type, normally PPP over Ethernet (PPPoE). Click Next. Enter the username and password provided by the ADSL service provider; select any other options required and click Next.

  • Page 19: Network

    Note: please power off the Gateway before inserting the SIM card. Please go to path: Network -> WAN Device page. When both ADSL and 3G connections are available the DataRoute voice can failover to the 3G connection when the ADSL connection is unavailable. To use the feature check the Enable Automatic 3G backup box and enter the amount of time (in seconds) that the ADSL link must be unavailable before switching to 3G.
  • Page 20 DataRoute voice User Manual Fill in the required information and click the Apply/Save button. For most networks it is only required to set the correct APN value – leave the other settings on default values. If your network requires login enter the valid PPP Username and PPP Password.

  • Page 21: Adsl Configuration (Wan Service)

    DataRoute voice User Manual ADSL Configuration (WAN Service) Please go to path: Network -> WAN Service page. Then do the following to setup an ADSL connection: 1) Click Add button to start the ADSL network wizard; Enter the values for VPI and VCI supplied by the ADSL Service Provider.
  • Page 22 DataRoute voice User Manual 3) Click Next – if EoA link type was selected choose the WAN service type, normally PPP over Ethernet (PPPoE) 4) Click Next to input the username and password provided by the ADSL service provider; select any other options required.
  • Page 23 DataRoute voice User Manual 5) Click Next to check the Summary of this connection; 6) Click Apply/Save to enable the connection. 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299...

  • Page 24: Sim Pin (3G Settings)

    DataRoute voice User Manual SIM PIN (3G Settings) Go to path Network -> 3G Settings This page allows the user to enable or disable the SIM pin function. Select whether the SIM Pin should be enabled or disabled, enter the current SIM pin and click the Apply/Save button.

  • Page 25: Advanced Adsl Settings

    DataRoute voice User Manual Advanced ADSL Settings Go to page Network -> ADSL Settings This page allows advanced settings for the ADSL interface to be adjusted. It is recommended that these settings are unchanged from their default values unless instructed by the ISP.

  • Page 26: Port Forwarding (Virtual Servers)

    DataRoute voice User Manual Port Forwarding (Virtual Servers) Go to path Network -> Virtual Servers This page allows the user to forward incoming traffic on selected ports on the WAN interfaces to internal hosts. This can be used to make internal applications available to the internet (e.g.

  • Page 27: Advanced Ip Routing (Static Route)

    DataRoute voice User Manual Advanced IP Routing (Static Route) Go to page Network -> Static Route This page allows the user to manually edit the routing table and create Static IP Routes. Note that in normal operation this is not required.

  • Page 28: Qos Configuration

    DataRoute voice User Manual QoS Configuration Please go to path: Network -> QoS Configuration page to enable Queue Management Configuration. If Enable QoS checkbox is selected, a default DSCP mark should be chosen to automatically mark incoming traffic without reference to a particular classifier. Click Apply/Save button to save.
  • Page 29 DataRoute voice User Manual Please click QoS Class button to enter QoS Classification Setup page, then click Add button to configure network traffic classes. This screen creates a traffic class rule to classify the upstream traffic, assign queue which defines the precedence and the interface and optionally overwrite the IP header DSCP byte.

  • Page 30: Application

    IP address. A subscription to a Dynamic DNS provider is required to maintain the mapping between the hostname and the currently assigned IP address. DataRoute voice can work with either the DynDNS or TZO dynamic DNS services. Click the Add button and then enter the details provided by the dynamic DNS service provider 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299...

  • Page 31: Vpn (Ipsec Vpn)

    DataRoute voice User Manual VPN (IPSec VPN) Go to path Application -> IPSec VPN A Virtual Private Network (VPN) Tunnel can be established to provide secure communications between 2 points on the internet using the IPSec tunneling protocol. Click the Add New Connection button to display the IPSec Settings: ...

  • Page 32: Vpn (Pptp Config)

    DataRoute voice User Manual VPN (PPTP Config) Go to path Application -> PPTP Config A default PPTP tunnel is automatically created for each available WAN interface. Click the Edit button to configure the tunnel:  Tunnel Name – specify a name to identify the tunnel ...

  • Page 33: Wireless (Wlan)

    SSID – enter the SSID to identify the Wi-Fi access point, this is the name that will be displayed when users search for Wi-Fi networks.  Country – select the country where the DataRoute voice is installed  Max client number – specify the maximum number of Wireless clients that will be allowed.

  • Page 34: Wlan Security

    Enter a new WPA Pre-Shared Key and then click Apply/Save. This is the key that must be entered whenever connecting a PC or other client to the DataRoute voice via Wi-Fi. Advanced Settings Go to path WLAN -> Advanced Settings This page contains Advanced parameters for the Wireless LAN interface.

  • Page 35: Wlan Mac Filters

    DataRoute voice User Manual WLAN MAC Filters Go to path WLAN -> WLAN MAC Filters This page can be used to restrict the clients that are permitted to connect Wirelessly to the DataRoute voice. WARNING: Changing the mode takes immediate effect and so may disconnect any connected Wireless clients.

  • Page 36: Wlan Bridge

    Wi-Fi bridge devices. AP Mode:  Access Point – DataRoute voice can be used as both a Wireless Access Point and a Wireless Bridge (default)  Wireless Bridge – DataRoute voice can be used as a Wireless Bridge only Bridge Restrict: ...

  • Page 37: Lan (Dhcp)

    (The PC must be in the same subnet as the new IP address to view the webpage). IP Address – enter the IP address that the DataRoute voice will be available on. The default IP address is 192.168.1.1.
  • Page 38 Leased Time – enter the duration for the lease of DHCP IP addresses (default is 24 hours) Static DNS Server – enter an IP address for a DNS server to pass to DHCP clients. By default this is set to the IP address of the DataRoute voice to use the built-in DNS server (recommended).

  • Page 39: Firewall

    DataRoute voice User Manual 11. Firewall 11.1 Firewall Settings Please go to path: Firewall -> Firewall Settings page, check Enable to activate Global firewall settings, then click Apply/Save. Note: three Firewall levels are supported in the device, they are: Low: enable basic firewall features - prevent port scanning; allow PING from WAN side;...
  • Page 40 DataRoute voice User Manual Click Add button to configure incoming IP filters. The following interface allows user to create a filter rule to identify incoming IP traffic by specifying a new filter name and at least one condition. All of the specified conditions in this filter rule must be satisfied for the rule to take effect.

  • Page 41: Domain Filters

    DataRoute voice User Manual 11.3 Domain Filters Please go to path: Firewall -> Domain Filters page. Please select the list type first then configure the list entries. List type: Exclude: accept all the DNS except the list;  Include: drop all the DNS except the list;...

  • Page 42: Mac Filters

    DataRoute voice User Manual 11.4 MAC Filters Please go to path: Firewall -> MAC Filters page to setup MAC filtering. All MAC layer frames will be forwarded except those matching with any of the specified rules in the settings. Please click Add to create a filter to identify the MAC layer frames by specifying at least one condition.

  • Page 43: Access Control (Remote Access)

    Once enabled it will be possible to access the web interface by browing to the Internet IP Address assigned to the DataRoute voice. For example, if the IP address assigned by the ISP is 80.70.60.50 and the WAN Port is set to 8080 the following would be entered into the web browser: http://80.70.60.50:8080...

  • Page 44: Voice (Voip)

    DataRoute voice User Manual 12. Voice (VoIP) 12.1 Voice Configuration Connect a normal analogue telephone to the Phone port. Phone calls can be made over the GSM/3G network (when a valid SIM is inserted) and using Voice over IP (when there is an active connection to the internet).
  • Page 45 DataRoute voice User Manual Voip Dialplan Setting: specify the dial strings to be matched for VoIP calls. All numbers dialled which match one of the dial strings will be dialled via the SIP Service Provider; all numbers dialled which do not match any of the dial strings will be dialled via the GSM/3G network.

  • Page 46: Advanced Settings

    DataRoute voice User Manual 12.3 Advanced Settings Go to path: VoIP -> Advanced Settings page, to configure the advanced VoIP features. Echo Cancellation – select to enable the built-in echo canceller Call forwarding Number: set a number to use call-forwarding. Select the conditions to use call forwarding by ticking the required boxes.
  • Page 47 DataRoute voice User Manual Enable T38 Support – enable support for T.38 fax compatible devices Enable V18 Support – enable support for V.18 Textphone compatible devices Registration Expire Timeout – enter the timeout length for the registration Registration Retry Interval – enter the retry interval for the registration DSCP for SIP/RTP –...

  • Page 48: Tools

    13. Tools 13.1 Account Settings (Users) When you configure the DataRoute voice through an Internet browser, the system requires user name and password to validate access permission. The factory sets the default username of “admin” and the password of “admin”. Go to path Tools -> Account Settings, you can choose the username and change the password.

  • Page 49: Time Settings

    13.2 Time Settings Go to path Tools -> Time Settings From this page the current time can be set manually or the DataRoute voice can be set to obtain the correct time from an internet time server. Note: it is recommended that an internet time server is used when available – if the time is set manually it will be lost in the event of a power cut or if the unit is restarted.

  • Page 50: Backup Settings

    DataRoute voice User Manual 13.3 Backup Settings To backup the current configuration to a file: Please go to path: Tools -> Backup Settings page. Click Backup Settings button, then a File download window will pop-up. Click Save button to download/save current configuration of the device to the PC.

  • Page 51: Update Software

    Note: all user entered configuration options will be lost. 13.7 Reboot Router To perform a soft restart of the DataRoute voice go to path Tools -> Reboot Router and click the Reboot button. A restart takes approximately 2 minutes. 4Gon www.4Gon.co.uk info@4gon.co.uk Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299...

  • Page 52: Tr-069 Client

    DataRoute voice User Manual 13.8 TR-069 Client The DataRoute voice can be provisioned remotely via the use of a TR-069 remote management server. Please go to path: Tools -> TR-069 Client page to setup an auto-configuration server to perform auto-configuration, provision, collection and diagnostics to this device. Select the desired values and click Apply/Save to configure the TR-069 client options.

  • Page 53: Ping Reboot

    13.9 Ping Reboot The “Ping Reboot” feature can be used to monitor the status of the internet connection and to automatically restart the DataRoute voice when the internet connection is unavailable. Go to path Tools -> Ping Reboot Enter an IP Address to ping in order to test the internet connection and a ping interval for how often to check the connection.

  • Page 54: Troubleshooting

    Accessories, Command Prompt). If the response returns “time out”, please check Ethernet connection and IP settings; 4. If the DataRoute voice is reachable, try to ping a known internet IP, e.g. a DNS server: “ping 4.2.2.2”. If ping is reachable, there are no problems in the DataRoute voice. Please go to step 5;...
  • Page 55 DataRoute voice User Manual Note 1：The precondition is that LAN settings in the DataRoute voice have not been modified. Note 2：To start a Command Prompt in Windows click on the Start menu, Programs, Accessories, Command Prompt Note 3：The returned values of ping command in the following format show the standard of “reachable”...
