DataRoute voice
Installation and User Manual
Version 3 – January 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataRoute voice and is the answer not in the manual?

Questions and answers

Related Manuals for Telecom FM DataRoute voice

Summary of Contents for Telecom FM DataRoute voice

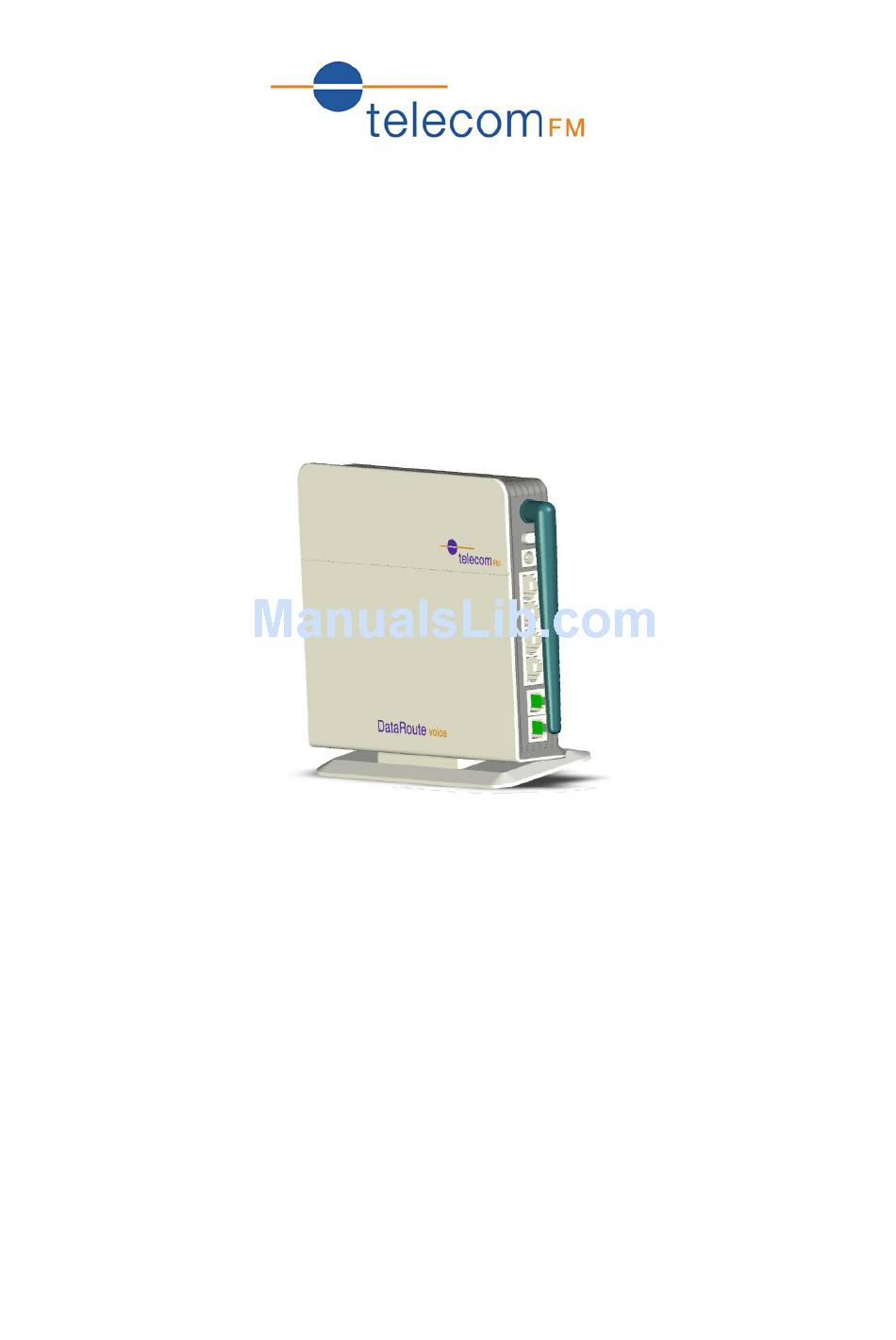

  • Page 1 DataRoute voice Installation and User Manual Version 3 – January 2011...

  • Page 2: Document Control

    Therefore, you should never rely solely on the terminal equipment for essential communications such as medical or emergency services. No responsibility is assumed by TFM for the use or reliability of the DataRoute voice when used in a situation or with other equipment not supplied or specified by TFM.

  • Page 3: Specification

    DataRoute voice User Manual 1. Overview The DataRoute voice is a high-speed gateway with multi-functions including: • Build-in WCDMA wireless module with speed up to 7.2Mbps; • ADSL2/2+ modem for broadband connection; • Four 10/100M auto-sensing Ethernet ports for wired connections;...

  • Page 4: Package Contents

    DataRoute voice User Manual Item Label Description Indicators Power On: Modem power up Off: Modem Power off LAN1-4 On: Ethernet is connected Blinking green: Ethernet Traffic flows Off: Ethernet is disconnected Internet Blinking green: PPP/DHCP negotiation Solid green: PPP/DHCP up...

  • Page 5: Hardware Connection

    2. Use another telephone cord to connect the ADSL port of the splitter with the DSL port of the DataRoute voice (only is using ADSL). 3. Connect Ethernet port of the DataRoute voice with 10/100BASE-T port of the computer using the network cable that comes with the unit.

  • Page 6: Configuration Guide

    DataRoute voice can be used as a gateway and DNS server; users need to set the computer’s TCP/IP protocol as follow: 1. Set the computer IP address to the same subnet as the DataRoute voice i.e. set the IP address of the PC to one in the range of 192.168.1.2 - 192.168.1.254” excluding 192.168.1.1.
  • Page 7 Warning: Please be sure the IP of the computer network card is in the same IP range as the DataRoute voice LAN port before trying to log on (ex: 192.168.1.2 and 192.168.1.1 are in the same IP range). If the login is not displayed please check in Internet Explorer-- Tools---Internet Options---Connection---LAN Setup---Proxy server, disable the function ‘Proxy for LAN’...

  • Page 8: Wan Configuration

    DataRoute voice User Manual 3.2.2 WAN Configuration Please go to Network interface to select the WAN Service. Users can either edit a 3G network or an ADSL network. Note: please power off the Gateway before inserting the SIM card. 3.2.2.1. 3G Network Service Setup Please go to path: Network ->...
  • Page 9 DataRoute voice User Manual 3.2.2.2. ADSL PPPoE Configuration Please go to path: Network -> WAN Service page. Then do the following to setup an ADSL connection. 1) Click Add button to configure an ATM PVC identifier; 2) Click Next to select a service category; (here please choose EoA for PPPoE connection)
  • Page 10 DataRoute voice User Manual 4) Click Next to input the username and password authorized by your ISP; (here please make Enable Fullcone NAT checked) 5) Click Next to select a gateway interface; 6) Click Next to select a DNS server Interface;...
  • Page 11 DataRoute voice User Manual 7) Click Next to check the Summary of this connection; 8) Click Apply/Save to enable the connection.

  • Page 12: Wireless Configuration

    DataRoute voice User Manual 3.2.3 Wireless Configuration Click WLAN to configure the wireless feature of the modem. 1) Go to path: WLAN -> WLAN Basic page to enable/disable WLAN feature. Then click Apply/Save button; 2) Go to path: WLAN -> WLAN Security page to set the network authentication method, selecting data encryption, specify whether a network key is required to authenticate to this wireless network and specify the encryption strength.

  • Page 13: Voip Configuration

    DataRoute voice User Manual 3.2.4 VoIP Configuration 3.2.4.1. Basic Settings Go to path: VoIP -> Basic Settings page, then enter SIP parameters and click Apply to save the parameters. Click Start SIP Client to enable VoIP feature. Bound Interface Name: Select the interface to use for the voice service, for example: ppp_0_8_35_2.
  • Page 14 DataRoute voice User Manual Extension: the number which will be registered to the SIP Server. Display Name: the name which will be displayed when making outgoing calls. Authentication Name: the authentication name which is provided by the SIP server. Password: the password for the Extension number.

  • Page 15: Advanced Settings

    DataRoute voice User Manual 3.2.4.2. Advanced Settings Go to path: VoIP -> Advanced Settings page, then configure the advanced VoIP feature. Call forwarding Number: set a number to use call-forwarding. Select the conditions to use call forwarding by ticking the required boxes.

  • Page 16: Other Configuration

    DataRoute voice User Manual 4. Other Configuration 4.1 LAN Configuration Configure the DataRoute voice’s IP address and password. 4.1.1 Configuration of the DataRoute voice’s IP address As a network device, ADSL Modem has its own IP address and MAC address. The factory sets the default IP address of 192.168.1.1 and subnet mask of 255.255.255.0.

  • Page 17: Password Configuration

    DataRoute voice User Manual 4.2 Password Configuration When you configure the DataRoute voice through an Internet browser, the system requires user name and password to validate access permission. The factory sets the default username of “admin” and the password of “admin”. Choose Tools -> Account Settings, you can choose the username and change the password.

  • Page 18: Software Upgrade

    DataRoute voice User Manual 4.3 Software Upgrade Please go to path: Tools -> Update Software page. Click Browse to choose the right software. Then click Update Software to update. Attention: please make sure the power of the device is stable on during the software updating process.

  • Page 19: Backup Configuration

    DataRoute voice User Manual 4.4 Backup Configuration Please go to path: Tools -> Backup Settings page. Click Backup Settings button, then a File download interface pop-up. Click Save button to download/save current configuration of the device to the local/remote PC.

  • Page 20: Firewall Settings

    DataRoute voice User Manual 4.6 Firewall 4.6.1 Firewall Settings Please go to path: Firewall -> Firewall Settings page, check Enable to activate Global firewall settings, then click Apply/SAVE. Note: three Firewall levels are supported in the device, they are: Low: enable basic firewall features - prevent port scanning; allow PING from WAN ...
  • Page 21 DataRoute voice User Manual By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be BLOCKED by setting up filters. Please go to path: Firewall -> IP Filters -> Outgoing IP Filtering Setup. Click Add button to configure outgoing IP filters. The following interface allows the user to create a filter rule to identify outgoing IP traffic by specifying a new filter name and at least one condition.

  • Page 22: Domain Filters

    DataRoute voice User Manual 4.6.3 Domain Filters Please go to path: Firewall -> Domain Filters page. Please select the list type first then configure the list entries. List type: Exclude: default accepts all the DNS except the list;  Include: default drop all the DNS except the list;...
  • Page 23 DataRoute voice User Manual 4.7 QoS Please go to path: Network -> QoS Configuration page to enable Queue Management Configuration. If Enable QoS checkbox is selected, a default DSCP mark should be chosen to automatically mark incoming traffic without reference to a particular classifier. Click Apply/Save button to save.
  • Page 24 DataRoute voice User Manual Please click QoS Class button to enter QoS Classification Setup page, then click Add button to configure network traffic classes. This screen creates a traffic class rule to classify the upstream traffic, assign queue which defines the precedence and the interface and optionally overwrite the IP header DSCP byte.

  • Page 25: Troubleshooting

    Accessories, Command Prompt). If the response returns “time out”, please check Ethernet connection and IP settings; 4. If the DataRoute voice is reachable, try to ping a known internet IP, e.g. a DNS server: “ping 208.67.222.222”. If ping is reachable, there are no problems in the DataRoute voice. Please go to step ...
  • Page 26 If ping is not reachable, check the DNS setting of Ethernet adapter.  Note 1 ： The precondition is that LAN settings in the DataRoute voice have not been modified. Note 2 ： To start a Command Prompt in Windows click on the Start menu, Programs, Accessories, Command Prompt Note 3 ：...
