II.
INSTALLATION INSTRUCTIONS
1. Installation:
a. Turn off the equipment you are connecting to the
MULTIPAK, and unplug the equipment's power cord
from the wall outlet.

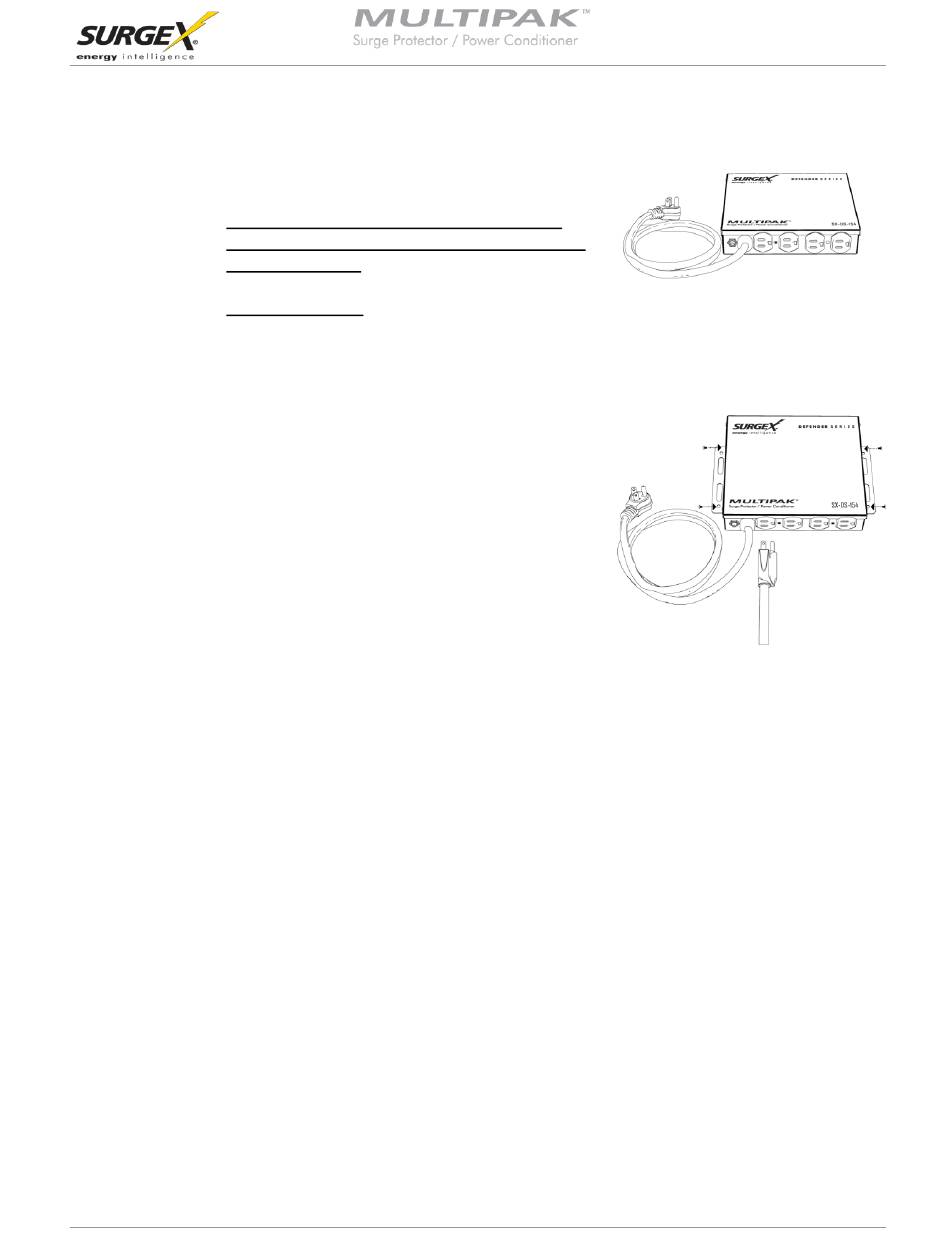

b. Connect Equipment
Connect the MULTIPAK to the Outlet: Plug the MULTIPAK input power cord into a properly
c.
grounded and compatible branch circuit outlet.
Please Note: Do not plug the MULTIPAK into a relocatable power tap.
© 2013 SurgeX / Electronic Systems Protection, Inc. / Technical Support: 1-800-645-9721 / surgex.com
Connect the AC power cord of the equipment to be protected into one of the
MULTIPAK convenience receptacles. Make sure that the total amperage of all
equipment plugged into the MULTIPAK does not exceed the maximum branch circuit
rating.
Please Note: Exceeding the branch circuit rating will
cause the branch circuit breaker to trip.
i. If the branch circuit outlet is correctly wired and the magnitude of the line voltage is
acceptable, between 105 and 130 V
MULTIPAK and the Green "System On" LED will illuminate. Your equipment is now
protected and installed correctly. You may now turn all connected equipment back on.
ii. If the branch circuit outlet is incorrectly wired, the "Red Wiring Fault" LED will
illuminate. If this occurs, contact a licensed electrician to correct the outlet wiring.
Refer to Section III.1: Hardware/MULTIPAK
iii. If neither "System On", nor the "Wiring Fault" LED illuminates, there is either no
voltage at the receptacle or the magnitude of the line voltage is not acceptable (less
than 105 VRMS or above 130 VRMS). If this occurs, verify that the MULTIPAK is
operating properly. To test, plug the MULTIPAK into a known properly functioning
outlet. If the "System On" LED still does not illuminate in the functioning outlet call
SurgeX at 1-800-645-9721. If the "System On" LED illuminates, contact a licensed
electrician to troubleshoot the abnormal voltage condition.
, power will be connected to the outlets of the
RMS
User Manual
Software Version 2.7
Page 4
